Summary of Contents for ADC e-shpyg 3

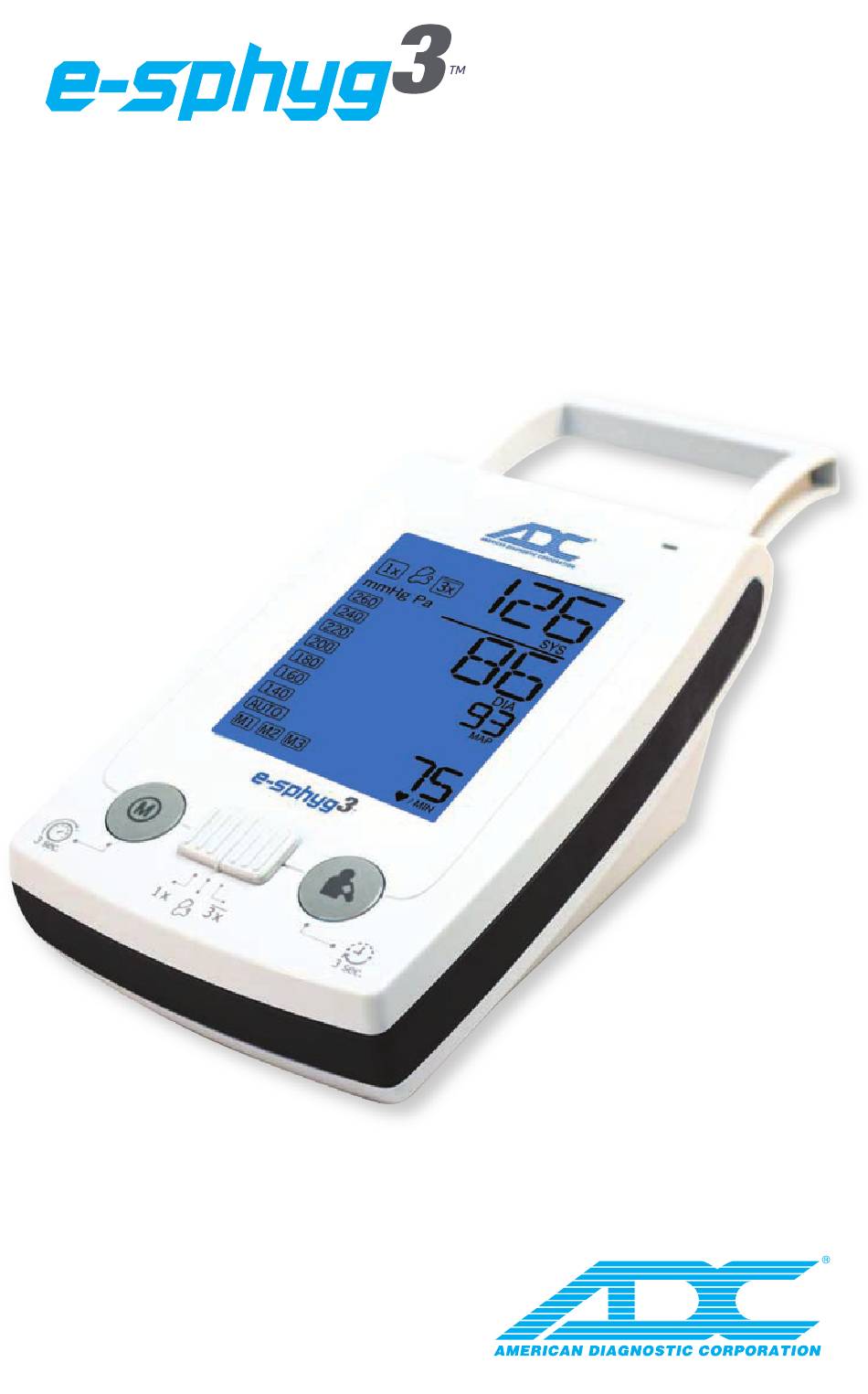

- Page 1 Digital Blood Pressure Monitor Instructions for Use CAUTION: Federal law restricts this device to sale by or on the order of a physician or licensed healthcare provider...
-
Page 2: Table Of Contents
Table of Contents A Special Thank You....................4 Introduction ......................4 Intended Use ......................4 Pregnancy ......................5 Warnings and Cautions..................6-9 Symbols ......................10 Components and Accessories ................11 Parts and Assembly ....................12 Display ........................13 Initial Setup......................14 Attach power plug to adapter ................14 Charge the battery ....................14 Connect the extension tubing ................14 Select the unit of measure ..................15 Choosing the Correct Cuff................16-17... - Page 3 Viewing the stored values ..................26 Rechargeable Battery and Power Adapter ............27 Using the Power Adapter..................27 Rechargeable Battery ....................27 Troubleshooting ....................28 Error Messages ....................28-29 Safety and Protection ..................30 Cleaning the Unit ....................31 Cleaning the Cuff ....................31 Calibration ......................32-33 Technical Specifications ..................34 Annex of Report....................35-36 Warranty ......................37...
-
Page 4: A Special Thank You
A Special Thank You Thank you for choosing an ADC blood pressure device. We’re proud of the care and quality that goes into the manufacture of each and every item that bears our name. Only the finest materials are used to assure you of a timeless device designed for optimum performance. -
Page 5: Pregnancy
The ADC e-sphyg 3 digital blood pressure monitor has successfully passed this validation and therefore may be recommended for use during pregnancy and preeclampsia. -
Page 6: Warnings And Cautions
As a precaution, avoid using the device in close proximity to other equipment. WARNING: ADC is not responsible for the integrity of any mounting installation. ADC recommends that customers contact their Biomedical Engineering Department or maintenance service to ensure professional... - Page 7 WARNING: The device may not function properly if dropped or damaged. Do not use the device if you notice any signs of damage. Qualified service personnel must check any device that is dropped or damaged for proper operation before putting the device back in to use. WARNING: If the battery shows any signs of damage, leakage, or cracking, it must be replaced immediately and only with a battery recommended for or supplied with the device.
-
Page 8: Warnings And Cautions
WARNING: Patient injury risk. Never install luer connectors on ADC blood pressure tubing as it can create the risk of mistakenly connecting the tubing to a patient’s intravenous line and introducing air into the patient’s circulatory system. - Page 9 CAUTION: Measurement arm should be at heart level. If the blood pressure cuff is not at heart level, note the difference in reading due to the hydrostatic effect. CAUTION: Proper blood pressure cuff size and placement is essential to the accuracy of the blood pressure determination. See the section on Blood Pressure Cuff Selection for sizing information.
-
Page 10: Symbols
Symbols Documentation symbols WARNING: The warning statements in this manual identify conditions or practices that, if not corrected or discontinued immediately, could lead to illness, injury, or death. CAUTION: The caution statements in this manual identify conditions or practices that could result in damage to the equipment or other property, or loss of data. -
Page 11: Components And Accessories
E-sphyg 3 Components and Accessories 1 X e-sphyg 3 Extension Tubing Reusable BP Cuff Small Adult 19 - 27 cm 1X Small Adult Cuff (19cm-27cm) 1X Adult Cuff (23cm-40cm) Reusable BP Cuff Adult 23 - 40 cm 1X Large Adult Cuff (34cm-50cm) Reusable BP Cuff Large Adult... -
Page 12: Parts And Assembly

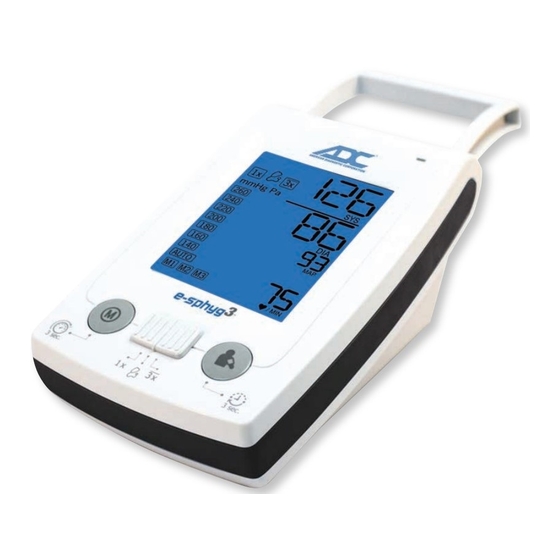

Parts and Assembly Handle Extension Tubing Cuff Socket On/Off Switch Power Adapter Socket Battery Compartment Recharge Indicator Display Memory Button Mode Switch Start/Stop Button... -
Page 13: Display
Display Low Battery Power Systolic Value Mode Selection: Single Reading, Manual, Three-Reading mmHg Pa Average 34.7 32.0 Diastolic Value Unit of Measure 29.3 26.7 Mean Arterial 24.0 Rest/Count Down Pressure PAM MAP 21.3 Maximum Inflation Irregular 18.7 Pressure Heartbeat AUTO AUTO Auto Inflation M1 M2 M3... -
Page 14: Initial Setup
Initial Setup Attach power plug to adapter Select a proper power plug and attach to the power adapter as shown below. Charge the battery When using for the first time, charge the battery until the recharge indicator on the device turns to green. Refer to page 27 for the section of “Using the power adapter.”... -
Page 15: Select The Unit Of Measure
Select the unit of measure Three measurement unit combinations are available: mmHg/MAP, mmHg/PAM, and kPa/MAP. MAP is the abbreviation of Mean Arterial Pressure. PAM or MAP is chosen depending on language preference. The factory default is mmHg/MAP. To change the unit of measure: 1) Make sure the device is switched off. -
Page 16: Choosing The Correct Cuff
13.3 to 19.6 34 to 50 ADC’s Size Guide marking system assures use of correct cuff size and proper cuff alignment. Printed Index and Range markings and applicable limb range (in/cm) allow easy identification of the correct cuff size. An artery mark indicates bladder midpoint for correct cuff positioning. -
Page 17: Measurement Procedure
Each cuff is provided with 50 cm air tube. Use only cuffs provided by ADC! Contact ADC or an authorized distributor to purchase cuffs. Measurement Procedure Patient position The patient should sit or lie comfortably. The arm should be fully supported on a flat surface at heart level. -
Page 18: Taking Measurements
Taking Measurements Turn on the power Turn on the device by moving the On/Off Switch to the ON position. Connect the cuff Connect the cuff to the extension tubing. Reusable BP Cuff Adult 23 - 40 cm Set maximum inflation pressure Select desired maximum inflation pressure or choose "AUTO". -
Page 19: Mode
1x Mode (standard single measurement) Select «1x » Mode then press the Start/Stop Button to perform a single blood pressure measurement. The measurement reading is displayed and saved after the measurement. «Manual» Mode Select Manual Mode if auscultatory blood pressure measurement is preferred above using the oscillometric method. - Page 20 Start inflation – Press the Start/Stop Button to begin inflation. When maximum inflation pressure is reached, the e-sphyg 3 will automatically begin linear deflation at a rate of 3 mmHg/sec. Re-inflate – Push and Hold the Memory Button during deflation to re-inflate for as long as the button is held (up to a max of 299 mmHg).
-
Page 21: Mode
«3x» Mode (automatic three-reading average) Select «3x» Mode then press the Start/Stop Button to perform on automatic three-reading average. The countdown time before the first measurement is set at 60 seconds. The interval times between measurements is user adjustable to 15, 30, 45, or 60 seconds. -
Page 22: Special Features
Special Features MAP (mean arterial pressure) The e-sphyg 3 measures the patient’s true mean arterial pressure (MAP). Each measurement includes a single MAP value. The MAP value will always be displayed together with the systolic and diastolic blood pressure value. MAP is determined from the maximum peak of the oscillometric envelope curve. -
Page 23: Setting Maximum Inflation Pressure
Setting maximum inflation pressure 1) Press and hold the Memory Button for three seconds until the column with pressure values flashes. 2) Press the Start/Stop Button to select the preferred pressure value (after value “260” has been reached the selector will return to “AUTO” at the bottom of the list). -
Page 24: Taking Fewer Than Three Measurements In « » Mode
Taking fewer than three measurements in « » Mode The measurement sequence can be stopped at any time by pressing the Start/Stop Button. The device enters standby and remaining measurements are cancelled. Data from the measured blood pressure can be viewed by pushing the Memory Button. -
Page 25: Setting Measurement Interval Times In « 3X » Mode
Setting measurement interval times in « » Mode The default measurement interval time is 60 seconds. The interval times can be set as 15, 30, 45, or 60 seconds. 1) Press and hold the Start/Stop Button for three seconds. Push and hold for 3 seconds... -
Page 26: Viewing The Stored Values
Viewing the stored values The device stores blood pressure values of the last measurement procedure in «1x» and « » Mode. Press the Memory Button to review the stored readings when the device is in standby mode. In «1x» Mode In «... -
Page 27: Rechargeable Battery And Power Adapter
Rechargeable Battery and Power Adapter Rechargeable battery The e-sphyg 3 features a built-in, rechargeable Ni-MH battery pack that provides up to 1200 measurement cycles on a full charge. The battery can be recharged with the power adapter provided. The empty battery indicator is displayed when the battery is low. -
Page 28: Troubleshooting
Troubleshooting Problem Possible cause Solutions Power supply is not properly Plug the power supply into plugged in. the wall socket. No power (No LCD display) Battery is fully discharged. Recharge the battery by plugging in the power supply. Loose connection of the tube. Make sure the tube of the cuff is securely connected to the device. - Page 29 «Err 3» No pressure in the cuff An adequate pressure cannot be generated in the cuff. A leak may have occurred. Replace the blood pressure cuff if necessary. Repeat the measurement. «Err 5» No valid results The measuring signals are inaccurate therefore no result can be displayed.
-
Page 30: Safety And Protection
Safety and Protection This device may be used only for the purpose described in this manual. The device contains sensitive components and must be treated with care. The manufacturer cannot be held liable for damage caused by incorrect application. Only activate the pump when the cuff is connected to the device. Do not use the device if you think it is damaged or if anything appears unusual. -
Page 31: Cleaning The Unit
Cleaning the Unit Use a soft cloth with one of the following recommended cleaning solutions to wipe the exterior of the device: 1) Mild soap and water 2) Hydrogen peroxide solution (3% diluted with water) 3) Sodium hypochlorite solution (1:10 dilution of household chloride bleach in water) Cleaning the Cuff Adcuff (Two-piece design):... -
Page 32: Calibration
Calibration We recommend the device be tested for accuracy every two years or after mechanical impact (e.g., been dropped). 1) Set up for accuracy test: Calibrated reference manometer Squeeze bulb (or pressure source) 2) Push and hold Start/Stop Button, turn the power on, then release the Start/Stop Button. - Page 33 “301.2” displayed on the device stands for “301.2 mmHg.” 6) If the difference between the device and the reference manometer at any calibration point exceeds ±3 mmHg plus the stated accuracy of the reference manometer, contact ADC to obtain calibration service.
-
Page 34: Technical Specifications
Pulse accuracy: ±5% of the readout value Power source: Rechargeable battery pack 4.8V 3500 mAh Mains power supply DC 7.5V, 1.5 A ADC reserves the right to alter technical specifications without prior written notice. Reference to standards: IEC 60601-1: 2005+A1:2012 IEC 60601-1-2: 2014 IEC 60601-1-6... -
Page 35: Annex Of Report
Annex of Report Guidelines and manufacturer's declaration - electromagnetic emissions The e-sphyg 3 Digital Blood Pressure Monitor is intended for use in the electromagnetic environment specified below. The customer or the user of e-sphyg 3 Blood Pressure Monitor should assure that it is used in such an environment. Emissions Electromagnetic Environment - Compliance... - Page 36 Guidance and manufacturer’s declaration – electromagnetic immunity – for EQUIPMENT and SYSTEM that are not LIFE-SUPPORTING Guidance and manufacturer’s declaration – electromagnetic immunity The e-sphyg 3 Digital Blood Pressure Monitor is intended for use in the electromagnetic environment specified below. The customer or the user of the e-sphyg 3 Digital Blood Pressure Monitor should assure that it is used in such an environment.
-
Page 37: Warranty
To Obtain Warranty Service: Send item(s) postage paid to ADC, Attn: Repair Dept., 55 Commerce Dr., Haup- pauge, NY 11788. Please include your name and address, phone no., proof of purchase, and a brief note ex- plaining the problem. - Page 38 Onbo Electronic (Shenzhen) Co., Ltd Dist. By: ADC No. 138 Huasheng Road 55 Commerce Drive Langkou Community, Dalang Street Hauppauge, NY 11788 Longhua District, Shenzhen www.adctoday.com email: info@adctoday.com Microlife AG Espenstrasse 139 Made in China 9443 Widnau, Switzerland IFU p/n: 93-9003EIFU-00 REV 0 (12/9/2019)
