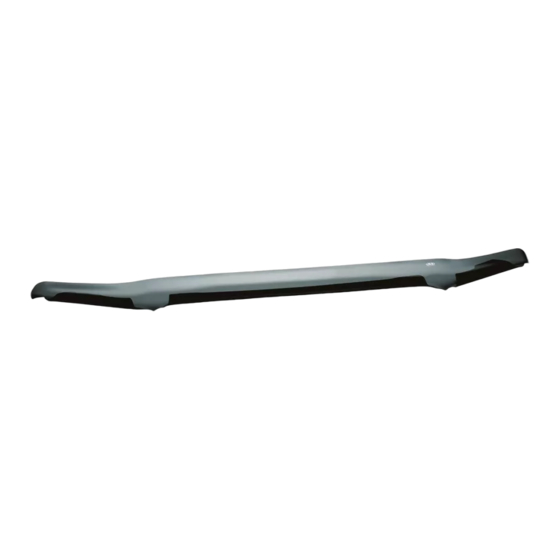

AVS Bugflector Installation Instructions Manual

Bugflector
For proper installation and best possible fit, please read all instructions BEFORE you begin.
For technical assistance or to obtain missing parts, please call Customer Relations at 1-800-241-7219.

Important Safety Information

• CAUTION - Before driving, ensure that the hood shield is properly anchored to vehicle.
• Do not use automatic "brush-style" car washes.
• Do not use cleaning solvents of any kind.
• Periodically check all components for tightness.
Contents
NOTE: Actual product may vary from illustration.
Tools Required
Car Wash Supplies

Preparation Before Painting / Installation

• A trial fit is recommended to ensure proper positioning and fit.
• Check fit of parts before painting as we will not accept the return of modified or painted parts.
• Wash your vehicle's hood to remove any debris and/or dirt.
• Dry the hood with a clean towel.
• Do NOT install hood shield if vehicle does NOT have a factory installed hood seal / gasket.
Installation Steps
Remove (6) plastic seal retaining fasteners that align with the pre-
drilled holes in the hood shield. Next, carefully separate the hood
seal / gasket from the areas of the hood that align with the hood
shield flange.
NOTE: Exercise extreme caution not to tear
1
or damage the hood seal / gasket when
seperating from hood.
Installation Instructions
®
- Bugflector II
Hood Shield
NOTE: Actual application may vary slightly from illustrations.
® ®
- Carflector - Chrome Hood Shield
Bump On
x4
Clean Towel
Reposition the hood shield with the tabs sliding between the
hood and rubber seal and align with holes.
2
Page 1 of 2
I - Sheet Number BF111 Rev.A
™
Plastic Washer
x6
Appropriate hand tools
Screw
x6
