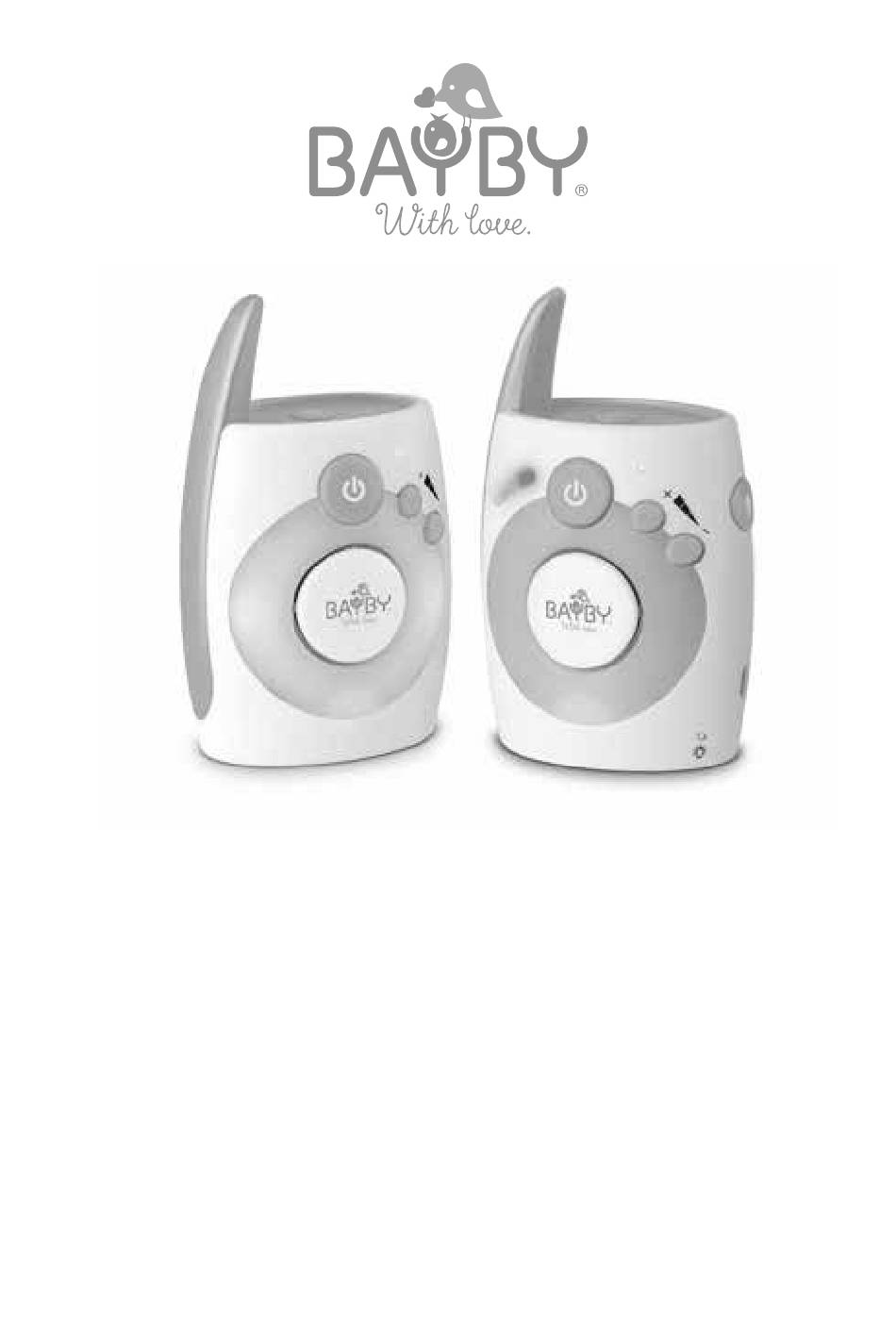

- Page 1 BBM 7005 ■ EN / Digital Audio Baby Monitor User’s manual...
- Page 2 EN-2...
-
Page 3: Table Of Contents
Digital Audio Baby Monitor Table of Contents Introduction ..............................4 Safety instructions and important notes ......................5 Included contents ............................. 8 Description of the parent unit ..........................9 Description of the baby unit ..........................10 Power supply ..............................10 Installation location of the units ........................12 General information about using the baby monitor .................. -
Page 4: Introduction
Introduction ■ Thank you for selecting the Bayby BBM 7005 Digital Audio Baby Monitor. This digital baby monitor is a great child care accessory that enables you to hear your baby when you are not in the same room. Nevertheless, it is important to understand that it cannot serve as a substitute for responsible adult supervision. -
Page 5: Safety Instructions And Important Notes
Digital Audio Baby Monitor Safety instructions and important notes ■ Before first use, thoroughly read the user’s manual. Keep this user’s manual for future use. Attention: This baby monitor meets all relevant standards and its use is safe when all the instructions contained in this user’s manual are followed. ■... - Page 6 Digital Audio Baby Monitor ■ Before first using the baby monitor, acquaint yourself with its functions and before every use, make sure that both the baby and parent unit are in working order and that the batteries are not flat when they are used as a power source.
- Page 7 Digital Audio Baby Monitor ■ The baby monitor must not be operated with auxiliary amplifiers of high-frequency power or directional antennas. ■ Do not use the baby monitor when it is damaged in any way or if the USB power cable is damaged. ■...
-
Page 8: Included Contents
Digital Audio Baby Monitor Included contents ■ Carefully unpack the baby monitor and take care not to throw away any part of the packaging before you find all its parts. 1 Parent unit 4 USB power cable for the baby unit 2 Baby unit 5 User’s manual 3 USB power cable for the parent unit... -
Page 9: Description Of The Parent Unit
Digital Audio Baby Monitor Description of the parent unit 1 Night light On/Off button 8 Night light On/Off indicator 2 Antenna 9 Two-way communication button 3 On/Off button of the unit q; Battery compartment cover 4 LED volume level indicator qa Belt clip 5 LED power indicator qs USB slot... -
Page 10: Description Of The Baby Unit
Digital Audio Baby Monitor Description of the baby unit 1 Night light On/Off button 6 LED power indicator 2 Antenna 7 Increase volume button 3 On/Off button of the unit 8 Decrease volume button 4 Night light 9 Battery compartment cover 5 Microphone q;... - Page 11 Digital Audio Baby Monitor Power supply from the mains ■ Insert the end of the USB cable A3 (A4) into the USB slot B12 (C12) on the unit. Connect the other end to an external USB interface or via a USB power adapter to a power socket. Attention: If you decide to power the units using the USB power cables, and batteries are inserted in both the units, first take them out of both the units.
-
Page 12: Installation Location Of The Units
Digital Audio Baby Monitor Low battery voltage indicator ■ If the batteries have the correct voltage, the LED indicators B5 or C6 are lit green on both the units after they are turned on. ■ When the batteries have a sufficiently low voltage, the LED indicators will be lit orange and later red. When this happens, replace or recharge the batteries as soon as possible, or connect the units via USB power cables to a power source. -
Page 13: Turning The Parent Unit On And Off
Digital Audio Baby Monitor ■ The following factors may interfere with the signal or reduce its range: – one of the units is covered, – obstacles in the signal transmission direction such as furniture, walls, trees, etc. – weather events such as fog, rain, etc. Turning the parent unit on and off ■... -
Page 14: Setting The Volume Intensity
Digital Audio Baby Monitor Setting the volume intensity ■ A unit’s volume can be increased using buttons B6 and B7 on the parent unit or buttons C7 and C8 on the baby unit. The volume setting on the baby unit is confirmed by the LED indicator of the volume level B4 being lit on the parent unit. -
Page 15: Cleaning And Maintenance
For cleaning, do not use abrasive cleaning products, solvents, thinners, etc. Never submerge the parent and baby units, including the USB power cables in water or rinse them under running water. Technical specifications Model number ...........................BBM 7005 Frequency broadcast band .....................2,400–2,480 MHz Number of channels ............................32 Transmission power .......................... -
Page 16: Instructions And Information About The Handling Of Used Packaging
Dispose of used packaging material at a site designated for waste in your municipality. FAST ČR hereby declares that radio device model number BBM 7005 is in compliance with directive 2014/53/ The full wording of the EU Declaration of Conformity is available at the website: www.bayby.cz The Czech language is the original version of the user’s manual.
