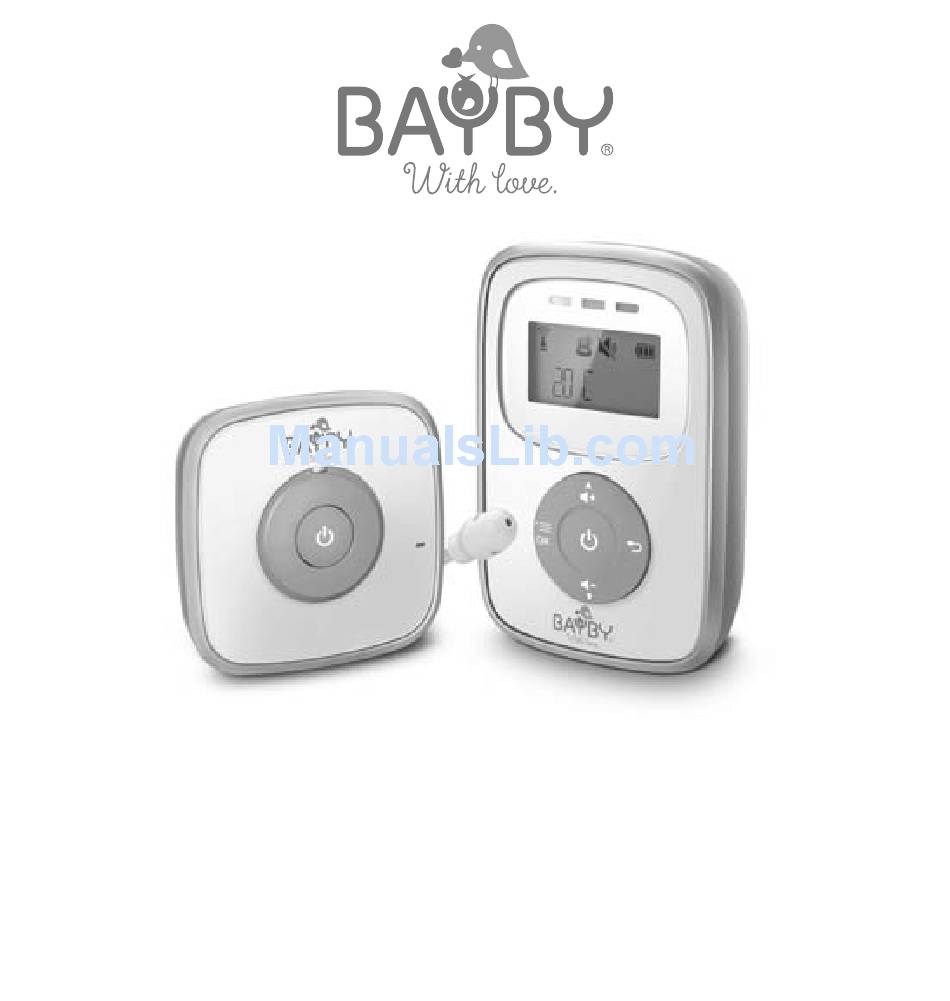

- Page 1 BBM 7010 ■ User’s manual EN / Digital Audio Baby Monitor ■ Návod k obsluze CZ / Digitální audio chůvička ■ Návod na obsluhu SK / Digitálna audio opatrovateľka ■ Használati útmutató HU / Digitális audió babaőrző...
- Page 2 .............................. 3 ............................. 23 ............................. 43 ............................. 63...
-
Page 3: Table Of Contents
Digital Audio Baby Monitor Table of Contents Introduction ..............................4 Safety instructions and important notes ......................5 Description of the accessories ..........................7 Description of the baby unit ..........................8 Description of the parent unit ..........................9 Description of the parent unit display ......................10 Installation location of the baby unit and parent unit ..................11 Power source ..............................11 Using the baby monitor ..........................13 General information about using the baby monitor ..................16... -
Page 4: Introduction
Introduction ■ Thank you for selecting the Bayby BBM 7010 Digital Audio Baby Monitor. This digital baby monitor is a great child care accessory that enables you to hear your baby when you are not in the same room. Nevertheless, it is important to understand that it cannot serve as a substitute for responsible adult supervision. -
Page 5: Safety Instructions And Important Notes
Digital Audio Baby Monitor Safety instructions and important notes ■ Before fi rst use, thoroughly read the user's manual. Keep this user's manual for future use. Attention: This baby monitor meets all relevant standards and its use is safe when all the instructions contained in this manual are followed. - Page 6 Digital Audio Baby Monitor ■ Do not disconnect the power adapter from the power socket by pulling on the power cord. This could damage the power adapter or the power socket. Disconnect the power adapter from the power socket by pulling on the plug. ■...
-
Page 7: Description Of The Accessories
Digital Audio Baby Monitor Description of the accessories 1 Parent unit* 3 Power adapter (2 pcs) The adapters are identical. 2 Baby unit Note*: The parent unit comes with two type AAA rechargeable batteries (2× 1.2 V / 400 mAh). -
Page 8: Description Of The Baby Unit
Digital Audio Baby Monitor Description of the baby unit 1 Power On LED indicator 4 Temperature sensor 2 Button for turning the baby unit on and off 5 Power adapter socket (not shown), it is located at the rear of the baby unit. 3 Microphone... -
Page 9: Description Of The Parent Unit
Digital Audio Baby Monitor Description of the parent unit 1 Connection/On LED indicator 8 Loudspeaker (not shown) it is located at the rear of the parent unit. 2 Volume LED indicator 9 Battery compartment (not shown) 3 LCD display it is located at the rear of the parent unit. 4 Increase volume button 0 BACK button 5 MENU/OK button... -
Page 10: Description Of The Parent Unit Display
Digital Audio Baby Monitor Description of the parent unit display 1 Sound alert symbol 3 These segments will appear for a short time This symbol is lit on the display when the on the display when the parent unit is turned sound alert function is set. -
Page 11: Installation Location Of The Baby Unit And Parent Unit
Digital Audio Baby Monitor Installation location of the baby unit and parent unit Baby unit ■ Locate the baby unit A2 within reach of a power socket on an even, dry and stable surface in the room where you want to monitor your child. We recommend an elevated location (e.g. chest of drawers or a shelf) at a suffi... - Page 12 Digital Audio Baby Monitor Attention: For safety reasons, the parent unit A1 when powered from an external power source can only be put into operation with rechargeable batteries inserted inside. ■ Internal power source and its use – For powering the parent unit from an internal power source, use the supplied Ni-MH type AAA batteries (2×...
-
Page 13: Using The Baby Monitor
Digital Audio Baby Monitor – In the event that the batteries are almost fl at, a sound alert will be made approximately every 30 seconds while the display will light up for a short time. Symbol D5 and "LOW BATT" (almost fl... - Page 14 Digital Audio Baby Monitor Attention: For safety reasons, the parent unit A1 when powered from an external power source can only be put into operation with rechargeable batteries inserted inside. – In the event that the parent unit A1 was turned off manually after the batteries were inserted or after being connected to a power socket, it is necessary to press the On/Off button C6 and hold it down for approximately 2 seconds to turn it on again.
- Page 15 Digital Audio Baby Monitor ■ Setting the sound alert – When sound is turned off on the parent unit A1 whilst at the same time the sound alert function is set, an acoustic signal and fl ashing symbol D1 and the text "Sound Alert" will inform you that the transmitted audio has exceeded a certain volume.
-
Page 16: General Information About Using The Baby Monitor
Digital Audio Baby Monitor General information about using the baby monitor ■ Before using the baby monitor for monitoring your child, always check that both the baby and parent unit A2 and A1 are in working order, that there is a connection between the units and that audio is being transmitted. -
Page 17: Troubleshooting
Digital Audio Baby Monitor Troubleshooting Problem Solution LED indicator B1 does not light Check that the power adapter A3 is connected to a working power socket up when the baby unit A2 is and that the plug on the power cord is properly inserted into socket B4. turned on. -
Page 18: Cleaning And Maintenance
For cleaning, do not use abrasive cleaning products, solvents, thinners, etc. Never submerge the baby monitor or its power adapters A3 in water or rinse under running water. Technical specifi cations Model number ..............BBM 7010 Frequency broadcast band ..........1 880–1 900 MHz Number of channels ............120 Transmission power ............ -
Page 19: Explanation Of Symbols Used On The Product, Its Accessories And Packaging
Digital Audio Baby Monitor Explanation of symbols used on the product, its accessories and packaging This symbol indicates that this appliance meets all the basic requirements of EU directives related to it. This symbol indicates that the product has protection class II. This symbol indicates the polarity of the power cord connectors. -
Page 20: Instructions And Information About The Handling Of Used Packaging
Dispose of used packaging material at a site designated for waste in your municipality. This appliance meets the requirements of directive 1999/5/ES. A valid declaration of conformity can be found at www.bayby.com. The Czech language is the original version of the user's manual. Changes to text and technical parameters are...
