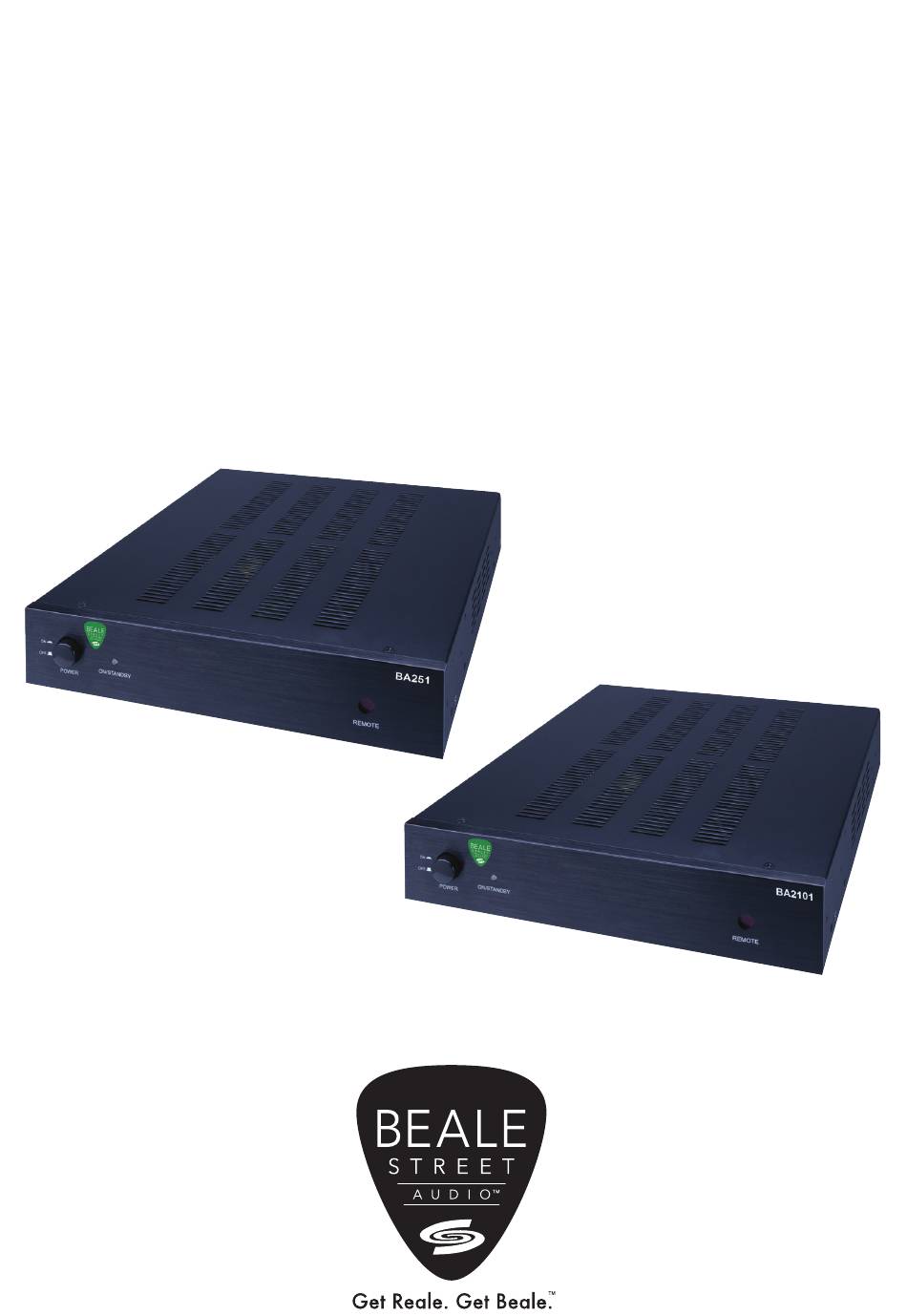

- Page 1 Beale Street Audio BA251, BA2101 Digital 2.1 Channel Amplifiers Installation Guide...
- Page 2 The half rack size and advanced design deliver a whole lot more than just great, powerful, clear audio in a small package. The BA251 delivers a true 50 watts per channel at 8 ohms, making it the perfect companion for all Beale Street Audio in ceiling and in wall speakers while the BA2101 delivers a true 100 watts per channel at 8 ohms! Though we’d rather you use our speakers, they will also play...
-
Page 3: What's Inside
• Digital Optical Audio Input (Toslink and Coax) • Line Level Subwoofer Output (RCA) • Push-button IR Learning What’s Inside? BA251 BA2101 • BA251 50W Amplifier • BA2101 100W Amplifier • IR Extension Cable • IR Extension Cable • Remote • Remote •... -
Page 4: Inputs And Outputs
Inputs & Outputs These connectors connect things to the BA251 and BA2101...some actually do some other stuff too... BA251 BA2101... - Page 5 11. IR RECEIVER IN – Connect using the provided IR Receiver/Extension cable to be able to control and learn IR commands to control the BA251 and BA2101 amps. The amp will turn OFF when no audio input has been sensed for fifteen minutes.
-
Page 6: Input Select
All connections are conveniently placed for easy wire management, convenient connections and simple service. The illustration shows a typical home entertainment system for TV audio with stereo in ceiling speakers with an optional subwoofer amp and subwoofer. BA251 Audio Speaker Stereo Setup Sub OUT to... - Page 7 Audio Speaker Mono/Bridge Setup Sub OUT to Sub Amp Line IN BA2101 Audio Speaker Stereo Setup Sub OUT to Sub Amp Line IN Audio Speaker Mono/Bridge Setup Sub OUT to Sub Amp Line IN...
- Page 8 Sub Out (Beale Street Audio Subwoofer Amp Connection) 1. Using a mono RCA-RCA cable with gold ends, connect the Sub OUT on the BA251/ BA2101 to the Sub IN on the Beale subwoofer amp , a powered sub or other subwoofer amplifier.
-
Page 9: Operation
Audio Signal ON Setup via IR Remote 1. The BA251 and BA2101 will default to Line IN out of the box. In default, it is not necessary to do the following setup if using Line IN. Turn amp and source ON. -
Page 10: Specifications
Specifications Description BA251 BA2101 2x50W RMS @ 8Ω 2x100W RMS @ 8Ω Power Output 2x80W RMS @ 4Ω 2x150W RMS @ 4Ω Bridge Output 160W RMS @ 8Ω 300W RMS @ 8Ω Total Harmonic Distortion (THD) <1% at rated power Signal to Noise Ratio >90 dB... -
Page 11: Limited Warranty
Limited Warranty With the exceptions noted in the next paragraph, Vanco warrants to the original purchaser that the equipment it manufactures or sells will be free from defects in materials and workmanship for a period of two years from the date of purchase. Should this product, in Vanco’s opinion, prove defective within this warranty period, Vanco, at its option, will repair or replace this product without charge. - Page 12 The Vanco logo, Sonic Vortex logo, and Beale Street Audio Inc. logo are registered trademarks of Vanco International, LLC. Vanco, Sonic Vortex, Beale Street Audio, Get Reale. Get Beale., the Vortex logo, and the Beale Street Audio logo are trademarks of Vanco International, LLC.
