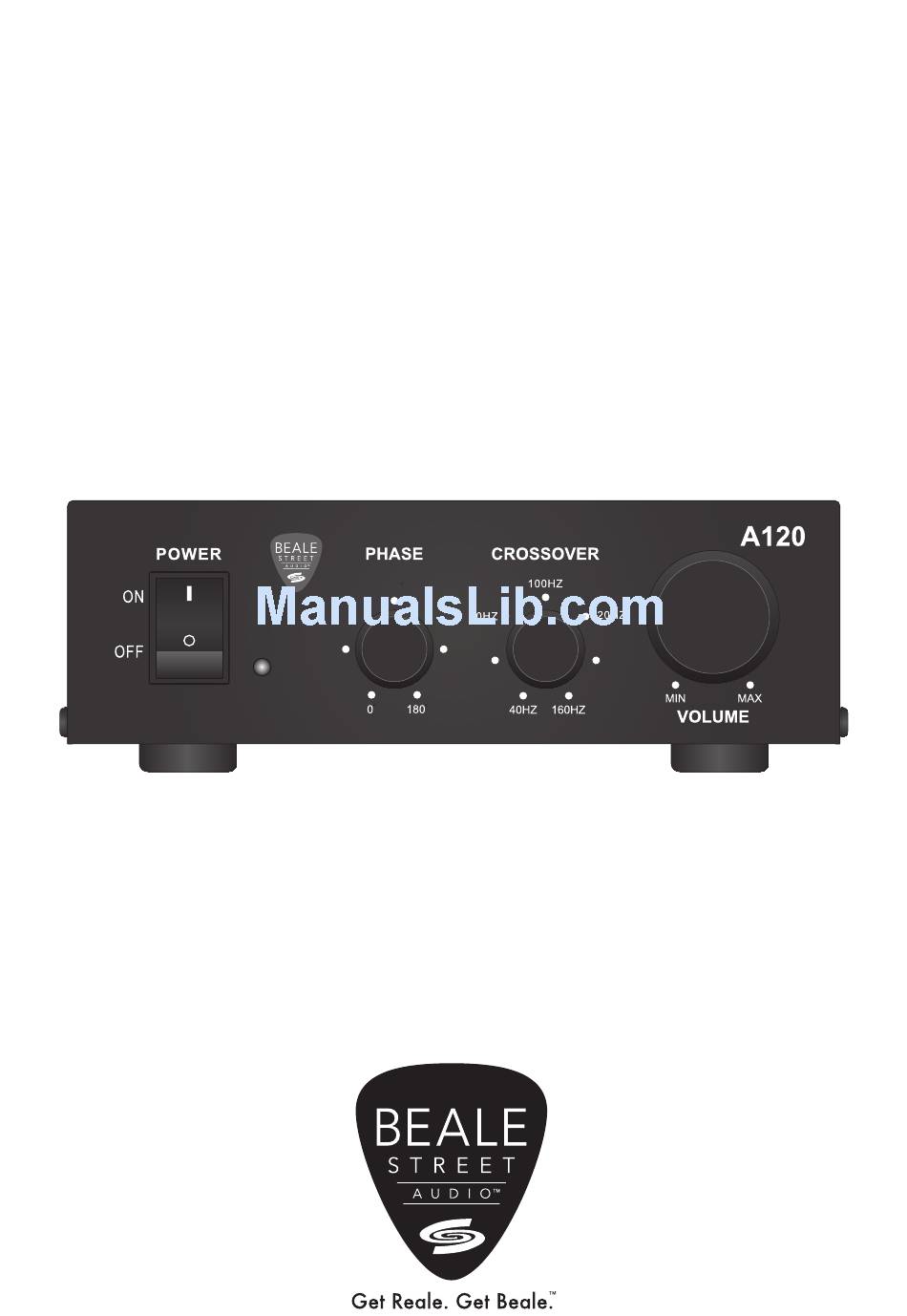

Page 1: User Guide
Beale Street Audio A120 Class D 120W Subwoofer Amplifier User Guide... -
Page 2: Important Safety Instructions
Important Safety Instructions RISK OF ELECTRIC SHOCK DO NOT OPEN APPLICABLE FOR USA, CANADA OR WHERE RISQUE DE CHOQUE ÉLECTRIQUE N'OUVREZ PAS APPROVED FOR USAGE CAUTION: TO PREVENT ELECTRIC SHOCK, CAUTION: To reduce the risk of electric shock, do not remove cover (or back). MATCH WIDE BLADE PLUG TO WIDE SLOT, No user-serviceable parts inside. -
Page 3: Table Of Contents
Table of Contents Important Safety Instructions ............2 Table of Contents ................3 Introduction ..................4 Features ................... 5 What’s Included ................5 Front Panel Features ..............6 Rear Panel Features ................ 7 Installation ..................8 Connections ..................9 Operation ..................13 Specifications ................ -
Page 4: Introduction
Congratulations and thank you for purchasing the Vanco Beale Street Audio A120 Subwoofer Amplifier! The A120 may be small in physical appearance but its got all the muscle you need to drive even the most demanding subwoofers to house thumping levels. -
Page 5: Features
Stereo Speaker Level Input and Passthrough • Adjustable Subwoofer Crossover Frequency • Adjustable Phase Settings • Audio Sensing • 12/24VDC On/Off Trigger Input • 110/220V What’s Included 1 - A120 Amplifier 1 - AC Power Cord 1 - User Guide... -
Page 6: Front Panel Features
1. POWER - One, switch. Set to the ON position to turn power to the amp ON. Set to the OFF position to turn power to the amp OFF. 2. POWER LED - One, green LED. Green LED illuminates when the A120 is connected to AC power and turned ON. -
Page 7: Rear Panel Features
This is the stuff on the rear panel... 1. INPUT - Two, RCA jacks. Stereo or mono audio sensing line level audio input. The A120 will turn ON when a line level audio signal is present on either jack. Amp will turn OFF after 15 minutes of no audio signal. -
Page 8: Installation
Installation SHELF MOUNT The A120 can be conveniently mounted on a shelf top as shown. Leave room for wires. Allow adequate space for airflow. Do not set objects on top of the amp. A120 Shelf VENTILATION Even though the A120 will typically run cool, the top and bottom vents allow air to circulate through the chassis allowing optimum performance, and besides...they just look cool...get it... -
Page 9: Connections
The Line Level Input Illustration shows the A120 connected to the Sub OUT on a Vanco Beale Street Audio D2.1. Though we’d prefer that you use a Beale D2.1, you can also use the Sub OUT, LFE OUT or L&R Line Level OUT on just about any appropriately featured audio device. - Page 10 3. While observing proper wire polarity, insert the stripped and twisted ends of the speaker wire into the appropriate + and - terminals on the A120. Be sure there are no loose strands that can cause shorts.
- Page 11 Connections The Speaker Level Input Illustration shows the A120 connected to the Speaker Level OUT on a multi-channel audio distribution amplifier. This configuration provides a simple, cost-effect, and powerful solution to adding subwoofers to multi-room audio applications. The amplified signal from the distribution amp connects to the A120 and gets passed through to the connected stereo speakers at full bandwidth.
- Page 12 3. While observing proper wire polarity, connect the Speaker Level OUT of the Audio Amp/ Receiver to the appropriate Speaker Level IN + and - terminals on the A120. Be sure there are no loose strands that can cause shorts.
-
Page 13: Operation
Operation Once installed and setup, the A120 doesn’t typically need a whole lot of attention. But just in case you need to tweak something, here’s what you’ll want to do... ON/OFF The A120 is audio-sensing, so typically once the system is installed and setup, the power will automatically turn ON with the presence of an audio signal on either the L &... -
Page 14: Specifications
Specifications AUDIO Maximum Output Power ....................80W/8Ω; 120W/4Ω THD ..................................1% Frequency Response ....................20Hz-160Hz +/-1dB Signal to Noise ............................95dB Input Sensitivity ............................. 200mV Crossover ............................40-160Hz Phase................................. 0-180° GENERAL Trigger Input ........................+12VDC to +24VDC Line Voltage Range ....................110-120/220-240 VAC Standby Power ............................ -
Page 15: Limited Warranty
Limited Warranty With the exceptions noted in the next paragraph, Vanco warrants to the original purchaser that the equipment it manufactures or sells will be free from defects in materials and workmanship for a period of two years from the date of purchase. Should this product, in Vanco’s opinion, prove defective within this warranty period, Vanco, at its option, will repair or replace this product without charge. - Page 16 A NEW BRAND FROM Vanco International, LLC 506 Kingsland Drive Batavia, IL 60510 Phone: 800.626.6445 Fax: 630.879.9189 www.getbeale.com ©2017 A120UG110717 Rev 1...
