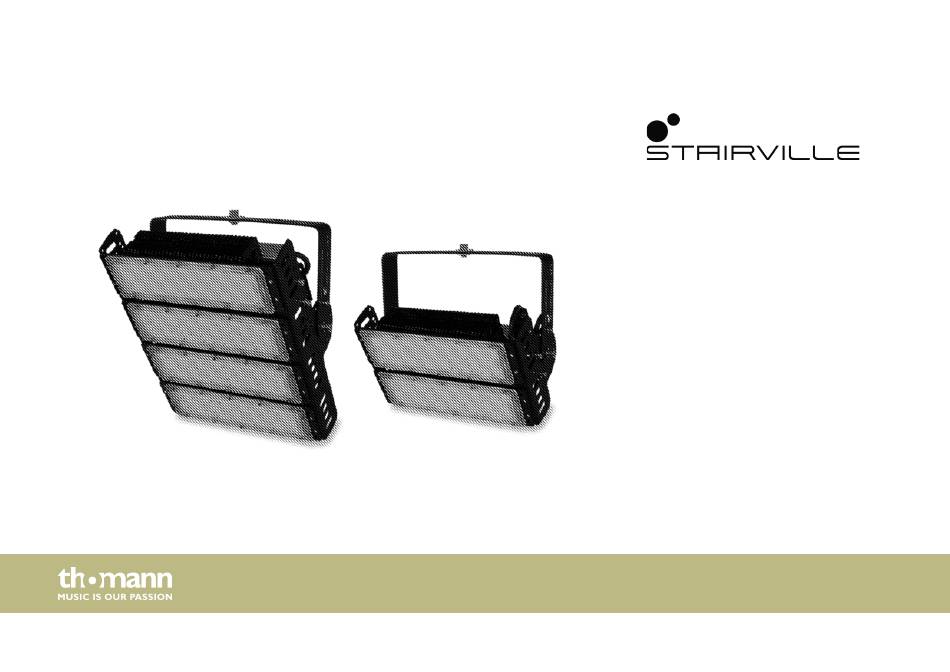

- Page 1 LED Power-Flood Pro 100 W 6K, 200 W 6K LED floodlight user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 18.11.2019, ID: 446041, 446042 (V2)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 13 Installation and starting up........................ 15 Technical specifications........................18 Cleaning............................... 23 Protecting the environment......................24 LED Power-Flood Pro 100 W 6K, 200 W 6K... -
Page 4: General Information
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. LED floodlight... -
Page 5: Further Information
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 6: Symbols And Signal Words
General information 1.2 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. - Page 7 General information Warning signs Type of danger Warning – high-voltage. Warning – dangerous optical radiation. Warning – suspended load. Warning – danger zone. LED Power-Flood Pro 100 W 6K, 200 W 6K...
-
Page 8: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended for use as an electronic lighting effect by means of LED technology. The device is designed for professional use and is not suitable for use in households. Use the device only as described in this user manual. Any other use or use under other operating con‐ ditions is considered to be improper and may result in personal injury or property damage. - Page 9 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
- Page 10 Safety instructions DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a regis‐ tered electrician.
- Page 11 Safety instructions NOTICE! Voltage supply Connect the device directly to the power grid. It must not be connected to a dimmer. Before connecting the device, you have to ensure that the rated voltage indicated on the device matches the voltage of the power grid available in the operating place.
- Page 12 Safety instructions NOTICE! Possible staining The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate or PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet.
-
Page 13: Features
Features Features The device is characterized by: Robust metal housing Noiseless operation due to passive cooling High luminous power with low power consumption Outdoor use due to protection class IP65 Lockable input socket (Power Twist IP65 TR1) for power supply, matching power cord included For technological reasons, the light output of LEDs decreases over their lifetime. - Page 14 Features The specified protection class does not make a statement about the weather resistance of the equipment (resistance to changing ambient conditions as well as against the effects of sun‐ light and UV rays). The seals and screw connections of the equipment must be checked regularly to ensure a fault-free operation.
-
Page 15: Installation And Starting Up
Installation and starting up Installation and starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 16 Installation and starting up NOTICE! Risk of overheating Always ensure sufficient ventilation. The ambient temperature must not exceed the limits stated in the chapter Tech‐ nical Specifications of the User Manual. NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.
- Page 17 Installation and starting up Always work from a stable platform whenever installing, moving or servicing the unit. In doing so, the area underneath the unit must be cordoned off. The safety cable must be attached to the bracket. Please note that this device must not be connected to a dimmer. Create all connections while the device is off.
-
Page 18: Technical Specifications
Technical specifications Technical specifications LED Power-Flood Pro 100 W 6K, item no. 446041 Light source 96 × Cree 3030, each 1 W Light source properties Colour temperature 6000 K Colour rendering index 73.6 CRI Ra Optical properties Beam angle 60° × 60° LED floodlight... - Page 19 Technical specifications Power consumption max. 100 W Supply voltage 100 V – 240 V 50/60 Hz Degree of protection IP65 Mounting options Hanging, standing Dimensions (W × H × D) 314 mm × 176 mm × 123 mm (without bracket) Weight 3.2 kg Ambient conditions...
- Page 20 Technical specifications LED Power-Flood Pro 200 W 6K, item no. 446042 Light source 192 × Cree 3030, each 1 W Light source properties Colour temperature 6000 K LED floodlight...
- Page 21 Technical specifications Colour rendering index Optical properties Beam angle 60 ° × 60 ° Power consumption max. 200 W Supply voltage 100 V – 240 V 50/60 Hz Degree of protection IP65 Mounting options Hanging, standing Dimensions (W × H × D) 314 mm ×...
- Page 22 Technical specifications Further information Item no. 446041 Item no. 446042 Outdoor capable LED type Unicoloured Unicoloured Base housing Fanless Remote control Not possible Not possible Wireless DMX Housing colour Black Black LED floodlight...
-
Page 23: Cleaning
Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device. -
Page 24: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 25 Notes LED Power-Flood Pro 100 W 6K, 200 W 6K...
- Page 26 Notes LED floodlight...
- Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
