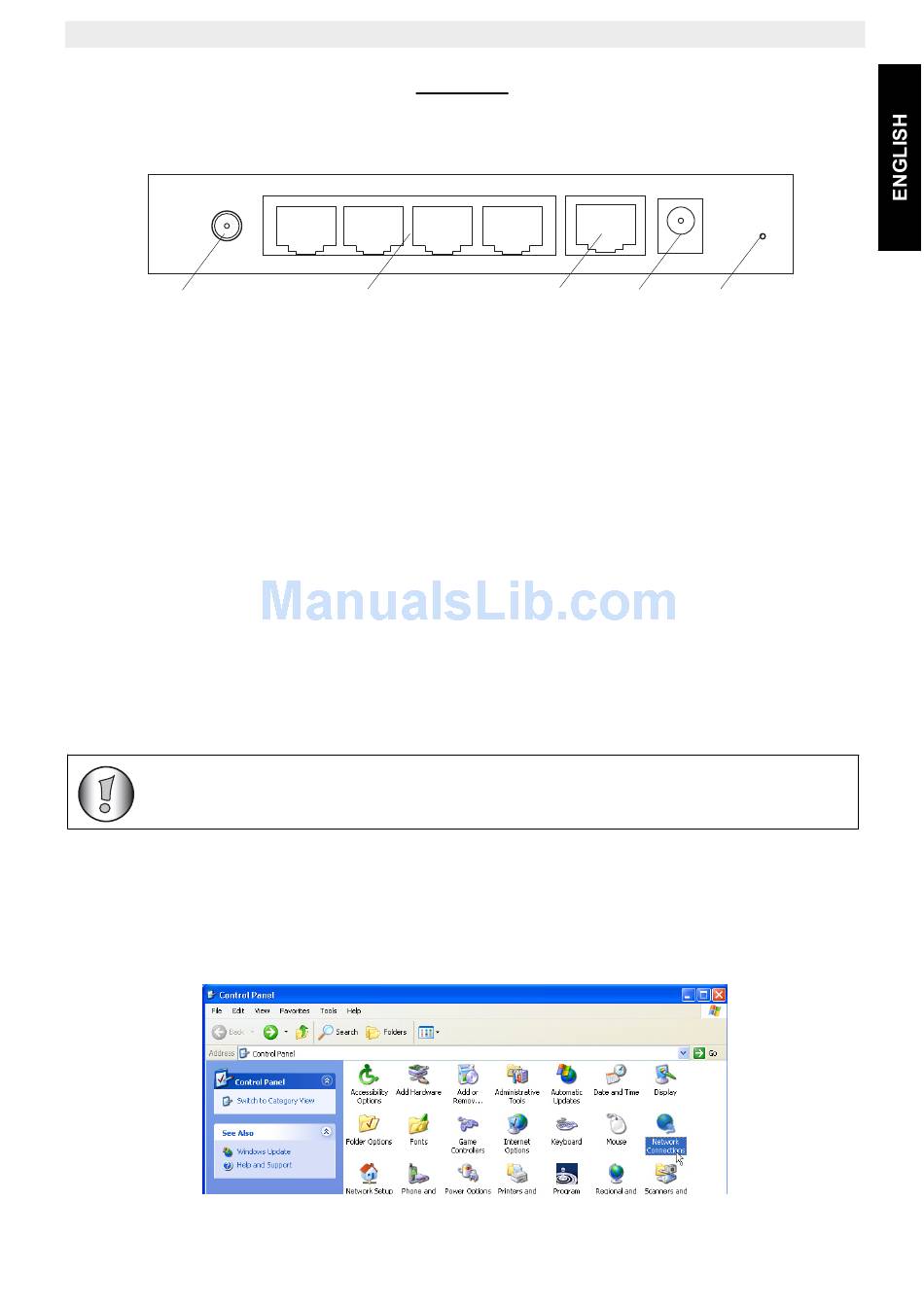

1 The connection panel and LED's
Antenna
• POWER : The power port is to connect the 5V DC power adapter.
– The power LED on the front panel will go ON when the power adapter is
connected.
• WAN : The WAN Ethernet port is to connect your ASDL/Cable modem.
– The WAN LED will go ON if the network Ethernet cable is properly connected.
• Ports 1- 4 : This is to connect up to 4 pc's or other network devices.
– The LAN LED's will indicate the connection status.
• Reset Button : To load default settings, press the reset button and hold it for 5 ~ 6
seconds. It will load the factory default settings for the device. Do not press the reset
button unless you want to clear the current settings.
• The STATUS LED and WLAN LED in the front panel will blink during normal operation.
2 Configuring the PC to connect to the wireless router
The routers default IP address is : 192.168.1.1
•
• DHCP server is ON
By default, your (Wireless) network adapter in the computer will be configured as DHCP-
client : Obtain an IP address automatically.
These settings should be verified :
• Click Start button, then select the Control Panel
