Topcom Xplorer 874A User Manual

Adsl router
Hide thumbs Also See for Xplorer 874A:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick User Manual
XPLORER 874A
USER GUIDE
1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Xplorer 874A and is the answer not in the manual?

Questions and answers

Related Manuals for Topcom Xplorer 874A

Summary of Contents for Topcom Xplorer 874A

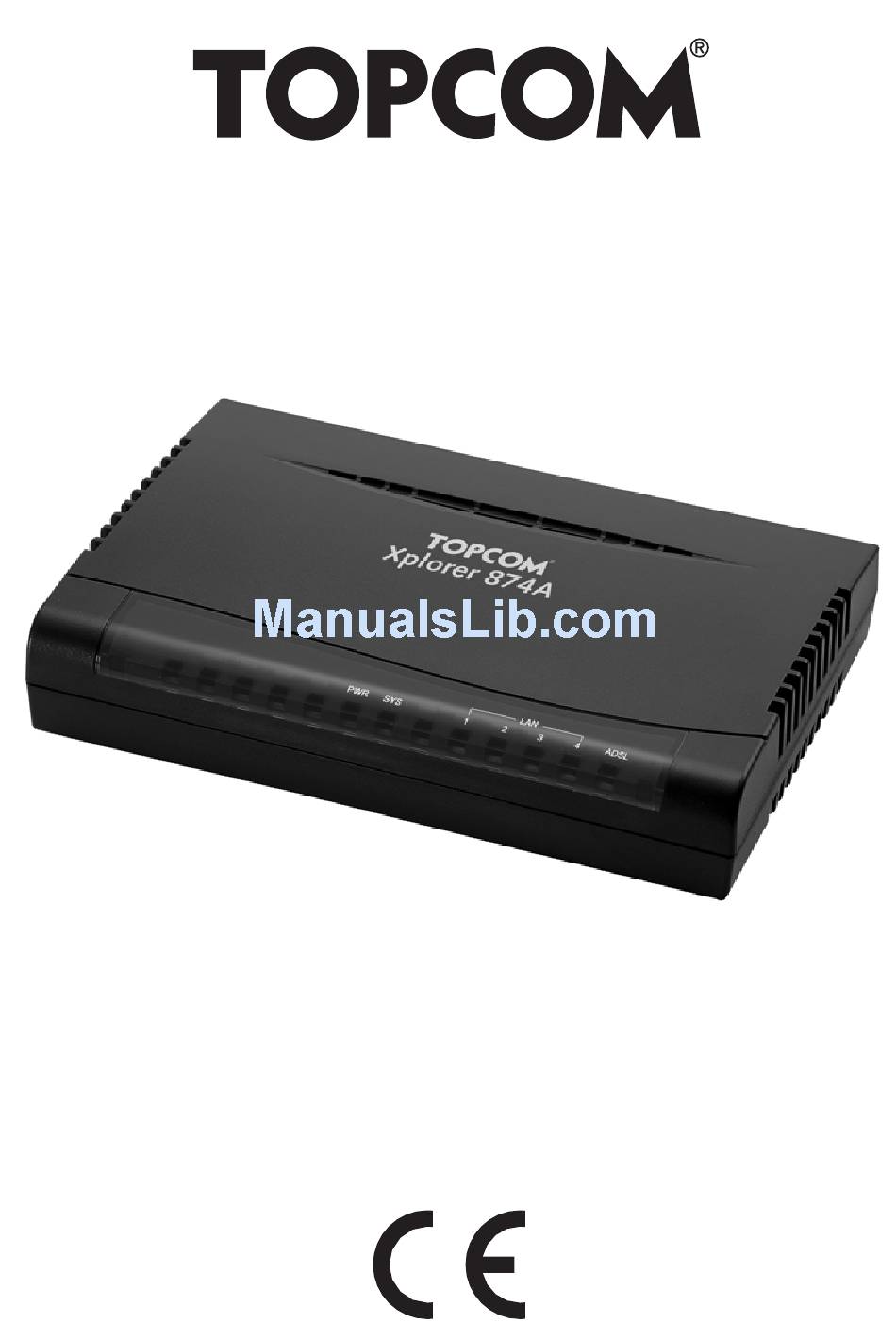

  • Page 1 XPLORER 874A USER GUIDE...

  • Page 2: Table Of Contents

    Topcom Xplorer 874A The connection panel and LED's Configuring the PC to connect to the router Verify your PC's IP configuration Setup the ADSL Router Check the connection status Other settings Topcom warranty Warranty period Warranty handling Warranty exclusions Disposal of the device (environment) This product is in compliance with the essential requirements and other relevant provisions of the R&TTE directive 1999/5/EC.

  • Page 3: Topcom Xplorer 874A

    Topcom Xplorer 874A The connection panel and LED's • PWR : The power port is to connect the 12V DC / 1A power adapter. • ON / OFF switch : to switch the router on or off – The PWR LED on the front panel will go on when the power adapter is connected and the swich is ON.
  • Page 4 Topcom Xplorer 874A These settings should be verified : • Click Start button, then select the Control Panel – Double-click the Network Connections Icon – click the right mouse key on your connected network adapter and select Properties. – double-click the Internet Protocol (TCP/IP).

  • Page 5: Verify Your Pc's Ip Configuration

    Topcom Xplorer 874A Set the IP and DNS options as in screen above (DHCP client) : • Obtain an IP address automatically • Obtain DNS server address automatically – Click OK to confirm. Advanced users can manually configure the computers IP address, gateway and DNS settings.
  • Page 6 Topcom Xplorer 874A You can also type winipcfg in the DOS command. • IPCONFIG (for windows 2000/NT) Click the Start button, select Run and type cmd. Now the DOS screen will open. In the DOS command type IPCONFIG and press Enter. Your PC IP information will be displayed as shown below.
  • Page 7 Topcom Xplorer 874A • Windows XP In the Control Panel, click the right mouse key on your network adapter and select Status The Support screen will display the IP information. Topcom Xplorer 874A...

  • Page 8: Setup The Adsl Router

    Topcom Xplorer 874A Setup the ADSL Router When your PC has a valid IP address, you should be able to go to the router setup web page. By default, the router will provide an IP address in the range of 192.168.1.100 …...
  • Page 9 Topcom Xplorer 874A – Select your Connection type. For example : PPPoE LLC – Enter your VPI/VCI settings : 8/35 by default. – Enter your PPP username and password – make sure that Automatic Reconnect is enabled. – click Submit to confirm settings.

  • Page 10: Check The Connection Status

    Topcom Xplorer 874A Settings will be saved and the router will reboot. After reboot next message will appear: Check the connection status – Click Status to view your current WAN IP address. Other settings For other settings, please go to the full userguide on the provided CD.

  • Page 11: Topcom Warranty

    Warranty handling A faulty unit needs to be returned to a Topcom service centre including a valid purchase note. If the unit develops a fault during the warranty period, Topcom or its officially appointed service centre will repair any defects caused by material or manufacturing faults free of charge.
  • Page 12 U8006661...
