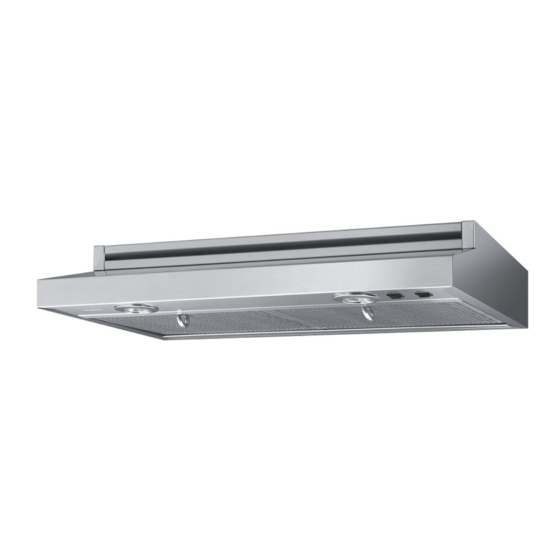

Viking DWH3006SS Installation Manual
6"h wall hood
Hide thumbs
Also See for DWH3006SS:
- Installation manual (10 pages) ,
- Brochure & specs (44 pages) ,
- Use and care manual (11 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Use and Care Manual
All manuals and user guides at all-guides.com
Viking Installation Guide
Viking Range Corporation
111 Front Street
Greenwood, Mississippi 38930 USA
(662) 455-1200
For product information,
call 1-888-VIKING1 (845-4641)
or visit the Viking Web site at
vikingrange.com
6"H. Wall Hood
F20569A EN
(022409J)
Advertisement
Table of Contents
Related Manuals for Viking DWH3006SS
Summary of Contents for Viking DWH3006SS
- Page 1 All manuals and user guides at all-guides.com Viking Installation Guide Viking Range Corporation 111 Front Street Greenwood, Mississippi 38930 USA (662) 455-1200 For product information, call 1-888-VIKING1 (845-4641) or visit the Viking Web site at vikingrange.com 6”H. Wall Hood F20569A EN (022409J)
-
Page 2: Table Of Contents
These units will not All safety messages will identify the or property damage. function with a single speed ventilator. All Viking hazard, tell you how to reduce the chance ventilator kits are designed specifically for use of injury, and tell you what can happen if with Viking hoods. -
Page 3: Dimensions & Specifications
All manuals and user guides at all-guides.com Dimensions & Specifications IMPORTANT – Please Read and Follow W A R N I N G W A R N I N G To reduce the risk of injury to persons in the FIRE AND ELECTRICAL event of a rangetop grease fire, observe the following. -
Page 4: Clearance Dimensions
All manuals and user guides at all-guides.com Interior Ventilator Dimensions Clearance Dimensions 10” 1-5/8” (25.4 cm) (4.1 cm) 30”W. 29-7/8” (75.9 cm) 36”W. 35-7/8” (91.1 cm) 3-1/4” (8.2 cm) 30”W. 9-15/16” (25.2 cm) Electrical 36”W. 12-15/16” (32.9 cm) 2-3/16” hookup (5.6 cm) 3-1/4”... -
Page 5: Planning Information
All manuals and user guides at all-guides.com Installation (Top duct) Planning Information Check Framing Proper installation of ducting is extremely important to ensure maximum performance from any ventilation product. • All CFMs are based on tests at 0.1 static pressure: without applying static pressure, CFM would be greatly overstated. -
Page 6: Installation (Rear Duct)
All manuals and user guides at all-guides.com Installation Installation (Top duct cont.) (Top duct cont.) Bare or green Green Green Green Black Black Black White White Black Connect black to black, white to white, and Reinstall blower. Ensure that blower Remove electrical box cover. -
Page 7: Installation (Recirculating)
All manuals and user guides at all-guides.com Installation Installation (Rear duct) (Rear duct cont.) Remove rear cover. Attach damper. Reinstall blower. Ensure that blower Remove electrical box cover. opening faces the rear of the hood. W A R N I N G To reduce the risk of fire, electric shock, or injury to persons, observe the following: •... - Page 8 All manuals and user guides at all-guides.com Installation (Recirculating) Installation (Rear duct cont.) Note: Hood ships set to recirculate W A R N I N G Bare or green To reduce the risk of fire, electric shock, or injury to persons, observe the following: •...
-
Page 9: Service & Registration
All manuals and user guides at all-guides.com Installation (Recirculating cont.) Service & Registration Only authorized replacement parts may be used in performing service on the appliance. DO NOT repair or replace any part of the appliance unless specifically recommended in this guide. All other servicing should be referred to a qualified technician. - Page 10 All manuals and user guides at all-guides.com Notes Notes ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________________________________________________...
