5. Installation and rigging guide

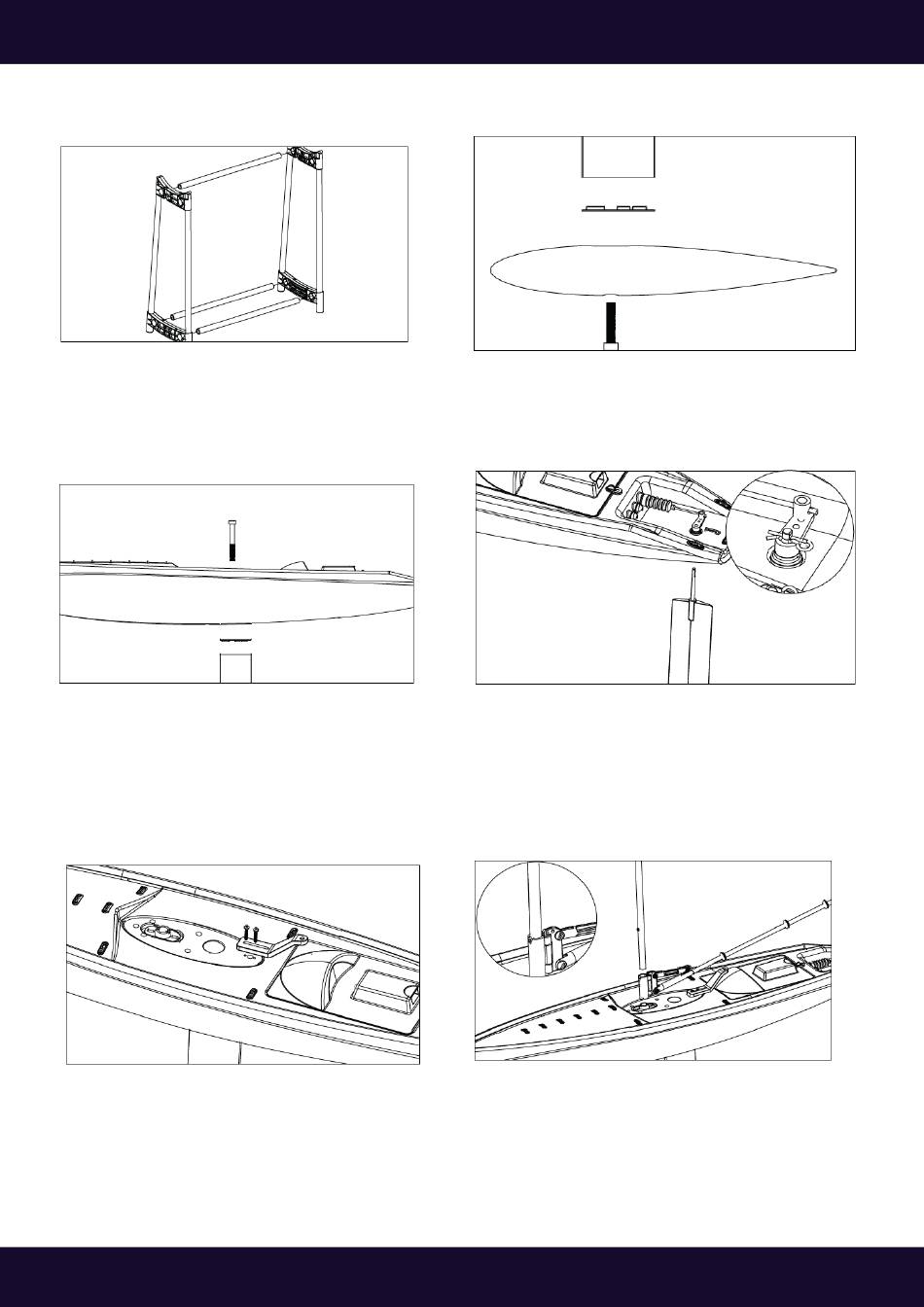

Setup the display base as shown in picture.
Insert the tubes into the sockets, no gluing is
required.
Setup the keel, water-proof rubber piece into hull by
HM5*50mm screw, using a H4.0 mm allen key.
Install the cord holder to hull deck with two PWA 2*10*8mm
screws.
www.modster.at
Fix the keel, water-proof rubber piece and ballast with a
HM5*25mm screw, using a H4.0mm allen key.
Insert the rudder from hull bottom to deck through the rudder
arm, connected with a clip, make sure rudder is able to rotate
freely. Then insert push rod through the knob on rudder arm,
keep rudder in center position and tighten the knob with a
H2.0mm allen key.
Insert long mast through main boom, till in the hull. Ensure the
mast screw in the main boom slot.
