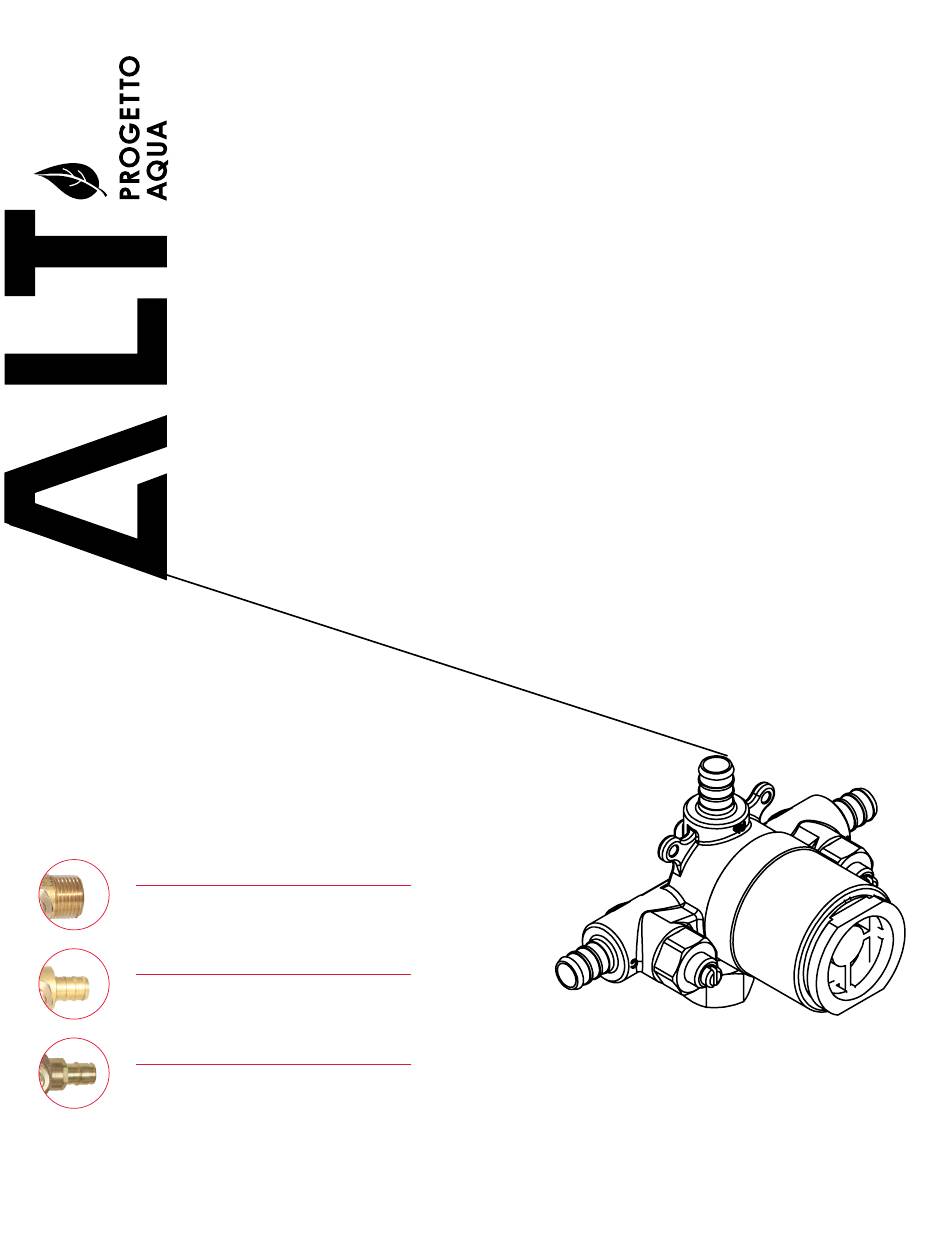

N90702 NPT CONNECTION
• 1/2" male water inlets - NPT/sweat / Entrées d'eau 1/2" mâle - NPT/soudé
• 1/2" male water outlets - NPT/sweat / Sorties d'eau 1/2" mâle - NPT/soudé
N90700 PEX CONNECTION
• PEX water inlets and top outlet / Entrées d'eau et sortie d'eau du haut PEX
• 1/2" male bottom water-outlet - NPT/sweat / Sortie d'eau du bas 1/2" mâle - NPT/soudé
N90710 WB CONNECTION
• WB water inlets and top outlet / Sortie d'eau du bas 1/2" mâle - NPT/soudé
• 1/2" male bottom water-outlet - NPT/sweat / Sortie d'eau du bas 1/2" mâle - NPT/soudé
last revision:
25/01/2017
Pressure Balance Valve Rough - 1/2" NPT inlet / Pex inlet / WB
Brute de valve à pression équilibrée - Entrée 1/2" NPT / Entrée Pex / WB
#N90702
#N90700
#N9 0710
Installation & Care Guide
Guide d'installation et d'entretien
Advertisement
Table of Contents
Related Manuals for ALT N90700
Summary of Contents for ALT N90700
- Page 1 • 1/2" male water inlets - NPT/sweat / Entrées d’eau 1/2" mâle - NPT/soudé • 1/2" male water outlets - NPT/sweat / Sorties d’eau 1/2" mâle - NPT/soudé N90700 PEX CONNECTION • PEX water inlets and top outlet / Entrées d'eau et sortie d'eau du haut PEX •...
- Page 2 Félicitations pour l’achat de purchase of your Alt product votre produit Alt By purchasing an Alt product, you are taking part in En achetant un produit Alt, vous prenez part au the global movement for better living. We take pride in mouvement global pour le mieux-vivre.
- Page 3 VALVE COMPONENTS COMPOSANTES DE LA VALVE SPECS AT LARGE / SCHÉMA DES PIÈCES ALT7-60-705-00: check valve / valve d'arrêt ALT7-60-704-00: plastic plug / bouchon en plastique ALT7-60-703-00: cartridge holder / manchon de cartouche last revision: 25/01/2017...
- Page 4 BEFORE YOU START AVANT DE COMMENCER CAUTION: FOR BEST RESULTS, WE STRONGLY REC- MISE EN GARDE: POUR OBTENIR UN RÉSULTAT OMMEND THE INSTALLATION OF THIS VALVE BE DONE OPTIMAL, NOUS RECOMMANDONS FORTEMENT QUE BY A LICENSED PLUMBER. L’INSTALLATION DE CETTE VALVE SOIT FAITE PAR UN PLOMBIER ACCRÉDITÉ.
-
Page 5: Installation
INSTALLATION MAX. HOLE SIZE PERÇAGE MAXIMAL How to Use the Plastic Protector Cap The valve is covered by a plastic protector cap. It also act as a template for setting the depth of the valve in the wall. Align the marking on the cap with the finished wall to optimise installation. -
Page 6: Installing The Valve
INSTALLATION Min 1 1/2” Max 2 1/4” Installing the valve VALVE ø[150.00] For optimal installation, plastic protector cap 5 7/8” PLASTIC PROTECTOR PROTECTEUR DE PLASTIQUE should be placed on valve. Also, once the location is determined, position the valve in between 2x4 studs in- side the wall on a plywood backing for better support. -
Page 7: Connecting The Water
INSTALLATION TO THE SHOWER HEAD Connecting the water VERS LA TÊTE DE DOUCHE Connect the hot and cold water inlets and the mixed water outlets (see Fig.4). The hot water must always be connected on the left side and the cold water on the right, as indicated on the valve body. - Page 8 MAINTENANCE To service the cartridge Remove all the components from (1) to (6). (See Fig.5). Afterwards, shut off the 2 check valves (9) & (10) by turning them clockwise with a screwdriver. Unscrew the cartridge holder (7) and remove the cartridge (8). To clean the cartridge, you may need to soak it in a vinegar and water solution to remove lime build-up.
- Page 9 CARE SOIN To clean your ALT faucet or accessory, wash with a Pour nettoyer et conserver l’apparence de vos wet nonabrasive soapy cloth. Then wipe dry with a robinets ou accesoires ALT, lavez-les avec un linge soft towel or cloth. We recommend this be done on mouillé...
-
Page 10: Warranty Garantie
- Any and all ALT products that are subjected to any type of harsh de produits abrasifs, de corrosion et/ou d’accidents causés par un abrasive, such as cleaners containing abrasive cleansers, ammonia, professionnel ou par toute autre personne.
