Performance Verification
Internal Clock Output Level
and Frequency Accuracy

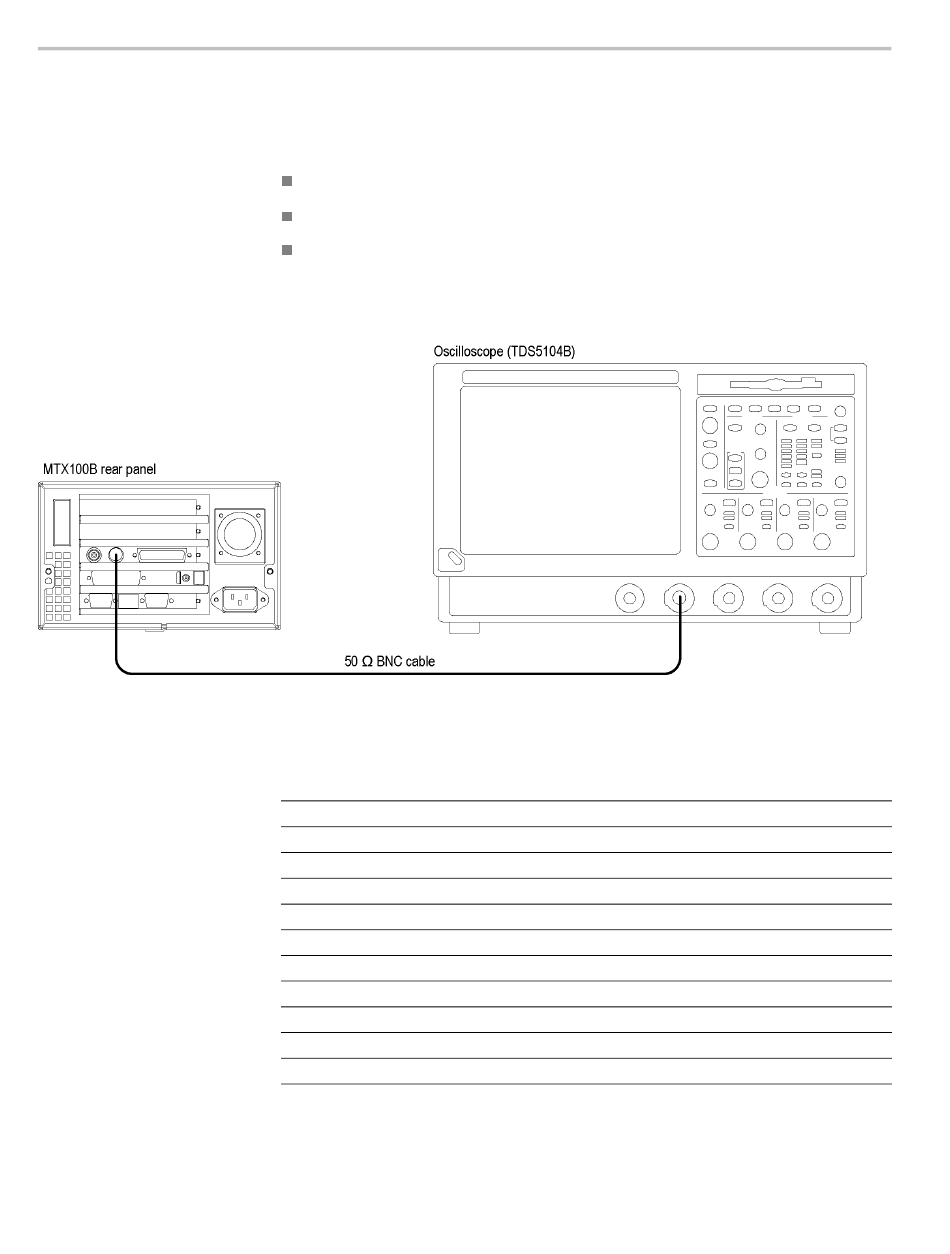

Figure 2-6: Equipment connection for verifying the internal clock output level

2–8
This test verifies the internal clock output level and frequency accuracy.
Equipment required
Oscilloscope
Frequency counter
50 Ω BNC cable
1. Use the 50 Ω BNC cable to connect the Trig In/Out connector on the
MTX100B to the oscilloscope CH1 input.
2. Set the oscilloscope as indicated below:
Control
Vertical scale
Input impedance
Horizontal scale
Trigger position
Acquire mode
Trigger mode
Trigger level
Trigger source
Trigger slope
Input coupling
Measure
3. Select Play > Others on the MTX100B to open the Others dialog box.
Setting
1 V/div (CH1)
50 Ω
10 ns/div
50%
Average 16
Auto
1.20 V
CH1
Rising Edge
DC
High Level, Low level
