NuTone ICA-441WH Installation Instructions

Indoor Remote Control
MODEL: ICA-441WH
•
For use with IMA4406, IM4406, IMA4006 or IM4006
Series Systems to operate the ISA-78, IS-82, IS-76,
IS-903, IS-905 and IS-908 Speakers.
•
IMPORTANT: Speakers that do not have built-in controls
require a separate remote control. Model ICA-441WH is
designed for indoor use only.

ROUGH-IN FRAME MOUNTING

1. The remote control may be recess-mounted to the Model
IR-91 Rough-In Frame.
2. The wiring should be installed when the system is
roughed-in.
3. The remote controls require NuTone Model IW-6 3-twisted
pair (6 wire) cable from the master station to the remote
control location. NuTone Model IW-2 2-conductor twisted
pair (22/2) cable is used from the remote control to the
speaker. See instructions packaged with the rough-in
frames.

WIRING CONNECTIONS

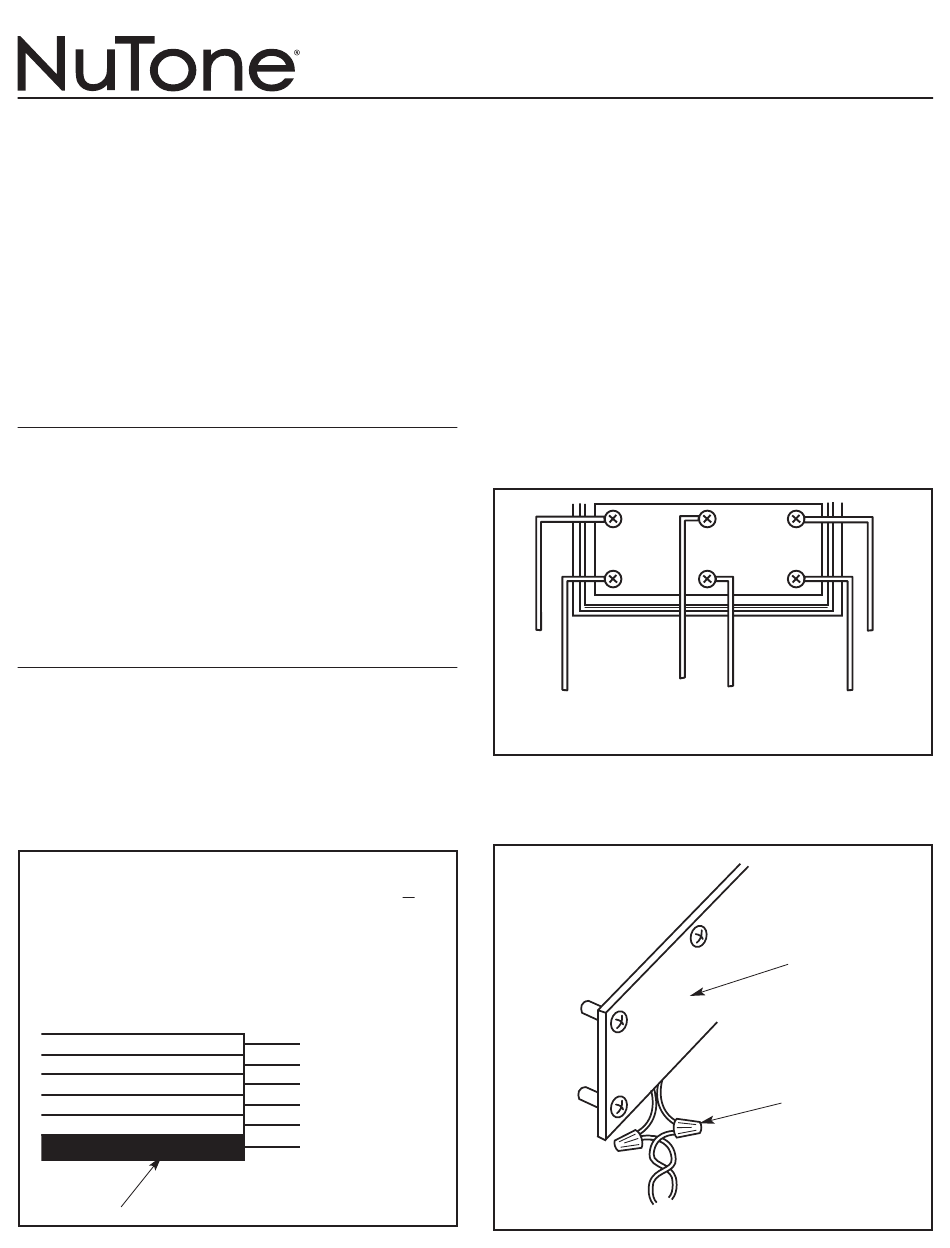

1. Refer to Figure 1. As illustrated, connect wires from the
master unit to the six (6) screw terminals. Red wire to the
terminal marked red, red/white wire to the terminal marked
red/white, etc.
3. Refer to Figure 2. Connect IW-2 cable from the speaker to
the remote control's two (2) speaker wires.
IMPORTANT – WHEN NUTONE MODEL IW-6R
WIRING IS USED:
CONNECT TO SCREWS ON PRINTED
CIRCUIT BOARD MARKED:
BLUE STRIPE
1 ORN
2 BLK
3 BLK/WHITE
4 ORN/WHITE
5 RED
6 RED/WHITE
READ & SAVE THESE INSTRUCTIONS!
INSTALLATION INSTRUCTIONS
RED
BLACK
RED/WHITE
ORANGE
BLACK/WHITE
ORANGE/WHITE
FIGURE 1
ICA-441WH
CIRCUIT
BOARD
IW-2 CABLE
TO SPEAKER
FIGURE 2
