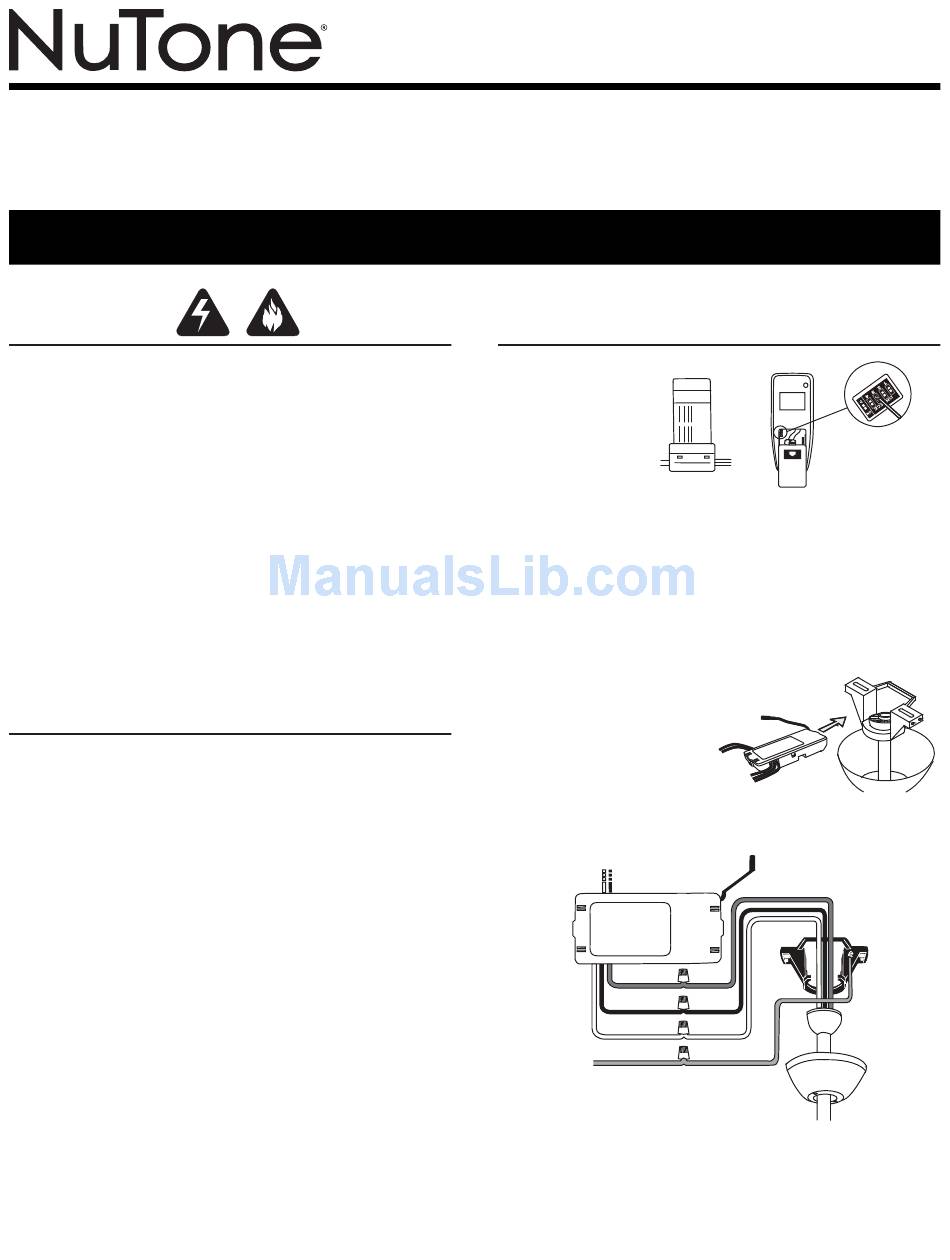

NuTone RCK01 Instructions

CEILING FAN

REMOTE CONTROL

READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If
you have questions, contact the manufacturer at the address or
telephone number listed in the warranty.
2. Before servicing or cleaning ceiling fan or light kit, switch power
off at service panel and lock service panel to prevent power from
being switched on accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction codes and standards.
4. Make sure all wire connections are secure, and that there are no
exposed conductor strands.
5. Do not use water or detergents when cleaning ceiling fan or light
kit. A dry dust cloth or lightly dampened cloth will be suitable for
most cleaning.

GENERAL INFORMATION

CAUTION: To reduce the risk of fire and electric shock, this
remote control should be used only with these fan models
manufactured by Broan-NuTone LLC: CFS52WH, CFS52PB,
CFS52BS, CFS52RB.
NOTE: Before starting installation, disconnect the power by
turning off the circuit breaker or removing the fuse at fuse box.
Turning power off using the fan switch is not sufficient to prevent
electric shock.
This remote control is designed to separately control your ceiling fan
speed and light.
• When installing the remote control, be sure your fan is set to
"HIGH SPEED" and light switch is in "ON" position.
• The fan button will control the fan speed (Hi, Med Hi, Med Low,
Low, Off).
• The light buttons will control the lights, brightness dimmer and
off. The "D" selection is the light ON only (no dimming function)
and is to be used with CFL bulbs.
• The red indicator on the transmitter will light when a button is
pressed.
INSTALLATION
NOTE: The receiver
features an automatic
learning function.
There are no frequency
switches on the
receiver. The receiver
will automatically scan
the frequency from
RECEIVER
the transmitter if any
changes are made.
The frequency settings
should be changed only
in case of interference or if two or more ceiling fans with the same
type of control system are installed in the same structure. (Fig. 1)
1. Remove the ceiling fan canopy from the mounting bracket.
2. Disconnect the existing wiring between the ceiling
fan and supply at the electrical junction box.
3. Lay the black antenna wire on top of the receiver, and put the
receiver in the mounting
bracket. (Fig. 2)
4. Make the connections as
follows, using the wire
nuts supplied: (Fig. 3)
AC SUPPLY
WHITE BLACK
RECEIVER
BLUE
BLACK
WHITE
GREEN OR BARE
CONNECT
Green fan wire .................................................. Bare supply wire
Black receiver wire ........................................... Black supply wire
White receiver wire ........................................... White supply wire
White receiver wire ........................................... White fan wire
Black receiver wire ........................................... Black fan wire
Blue receiver wire ............................................. Blue light wire
MODEL RCK01
ON
CODE SWITCHES
TRANSMITTER
FIGURE 1
RECEIVER
FIGURE 2
BLUE
BLACK
WHITE
GREEN
FIGURE 3
TO
