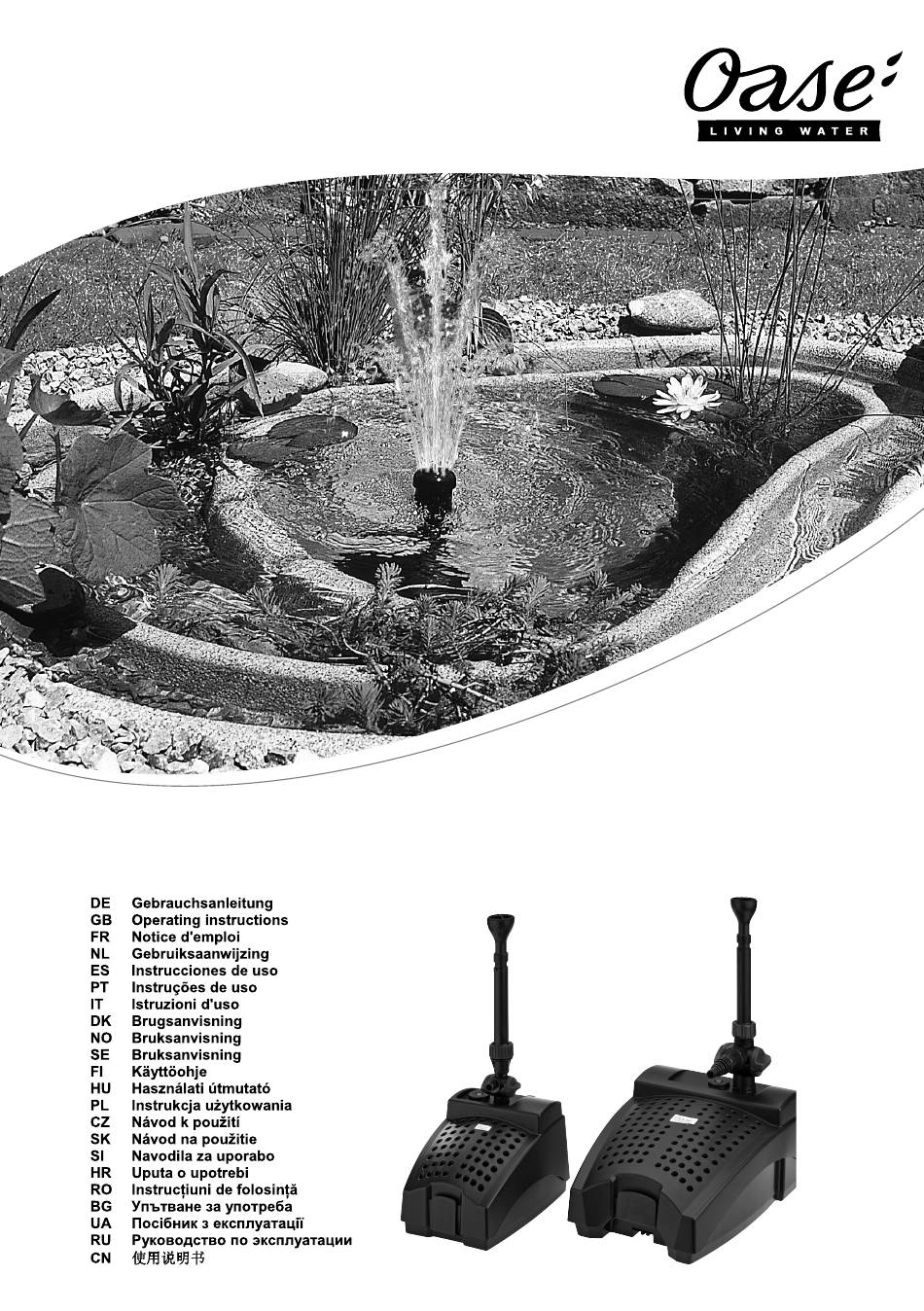

  • Page 1 Filtral 2500 UVC/5000 UVC...

  • Page 8: Intended Use

    Important information for trouble-free operation. Intended use Filtral 2500 UVC / 5000 UVC, in the following termed "unit", and all other parts from the delivery scope may be used exclusively as follows: − For cleaning garden ponds.

  • Page 9: Safe Operation

    - GB - − For your own safety, please consult a qualified electrician. − The unit may only be connected when the electrical data of the unit and the power supply coincide. The unit data is to be found on the unit type plate or on the packaging, or in this manual. −...
  • Page 10 - GB - Installation Set-up the unit Place the unit in the pond on a horizontal, firm and sludge free ground and ensure that it is completely covered by water. Setting the fountain/water feature (Fig. B, C) Pull the nozzle tube (11) to the desired length. Undo the clamping screw (10), vertically align the nozzle tube (11) and fasten the clamping screw (10) hand tight.

  • Page 11: Maintenance And Cleaning

    - GB - Maintenance and cleaning Attention! Dangerous electrical voltage. Possible consequences: Death or severe injury. Protective measures: − Prior to reaching into the water, disconnect the power supply to all units used in the water. − Disconnect the power plug prior to carrying out work on the unit. Attention! Ultra-violet radiation.

  • Page 12: Wearing Parts

    - GB - Filtral 5000: Assembly of the unit (Fig. S-V) Bolt the pump (28) to the UVC water housing (26) using the union nut. Place the bio surface element (23) and gravel bags (24) in the bottom strainer casing (2). Place the aeration stone (25) between the gravel bags (24). Ensure that the hose is not kinked.
  • Page 15 Staubdicht. Wasserdicht bis Achtung! Bei Frost, das Zerbrechlich, mit Vorsicht Nicht mit normalem Achtung! 2 m Tiefe. Gefährliche UVC- Gerät deinstallie- behandeln. Hausmüll entsorgen! Lesen Sie die Gebrauchs- Strahlung! ren! Achtung! Gefahr von Schnitt- anleitung verletzungen. Dust tight. Submersible to 2 m Attention! Remove the unit at Breakable, handle with care.
