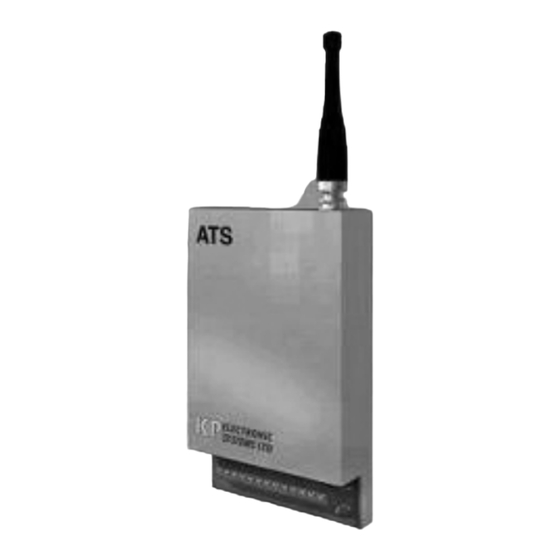

ATS100™
Long-Range
Synthesized Radio
Alarm Transmitter
Programming Guide
Web Site: www.kpsystems.com
ISRAEL Office
Email: info@kpsystems.com
Tefen Industrial Park, Tefen 24959
Tel: 972-4-987-3066 Fax: 972-4-987-3692
USA Office:
KP ELECTRONICS INC.
Email: info@kpelectronics.com
109 Tudor Drive, North Wales, PA 19454
Tel: (215) 542-7460 Fax: (215) 542-7461
P.N.: Book 039
Rev: 09 Pg.2 of 2 Approved: Amir S.
03/10/06
ATS100™ Programming Guide
Connect ATS100™ to a PC using an
RSINT001™ adaptor (see Figure 1).
The following communication parameters
can be programmed or modified:
• Protocol
• Station address
• System
• Group
• Number of words (in a burst)
• Alarm repetitions
• Test repetitions
• Periodic test (hours:min)
• Parity
• Input delay
• Input polarity
• Transmit frequency (MHz)
Figure 1: ATS100™
PC Connection Configuration
Operating Instructions
• Connecting ATS100™ to
GUP5000™ utility program
• Changing Devices
• Loading Device Parameter Values
• Changing Device Parameter Values
• Updating Parameter Value Changes
• Confirming Parameter Value Changes
• Activating SELF TEST
Connecting ATS100™ to GUP5000™
1. Connect ATS100™ to a PC using
the RSINT001™ adaptor (see
Figure 1).
2. Click Start Programs
KP Utilities GUP5000, or click
shortcut.
.
Changing Devices
Various KP devices can be programmed
using GUP5000™ utility software. When
started, the GUP5000™ utility software
program automatically connects to the
device currently connected to the PC.
