Obel Mito ON DEMAND 64 Installation - Use - Maintenance

Hide thumbs

Advertisement

Table of Contents

INSTALLATION
USE
MAINTENANCE
COFFEE GRINDER
MITO ON DEMAND
ENGLISH
Rev. 18/04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mito ON DEMAND 64 and is the answer not in the manual?

Questions and answers

Related Manuals for Obel Mito ON DEMAND 64

Summary of Contents for Obel Mito ON DEMAND 64

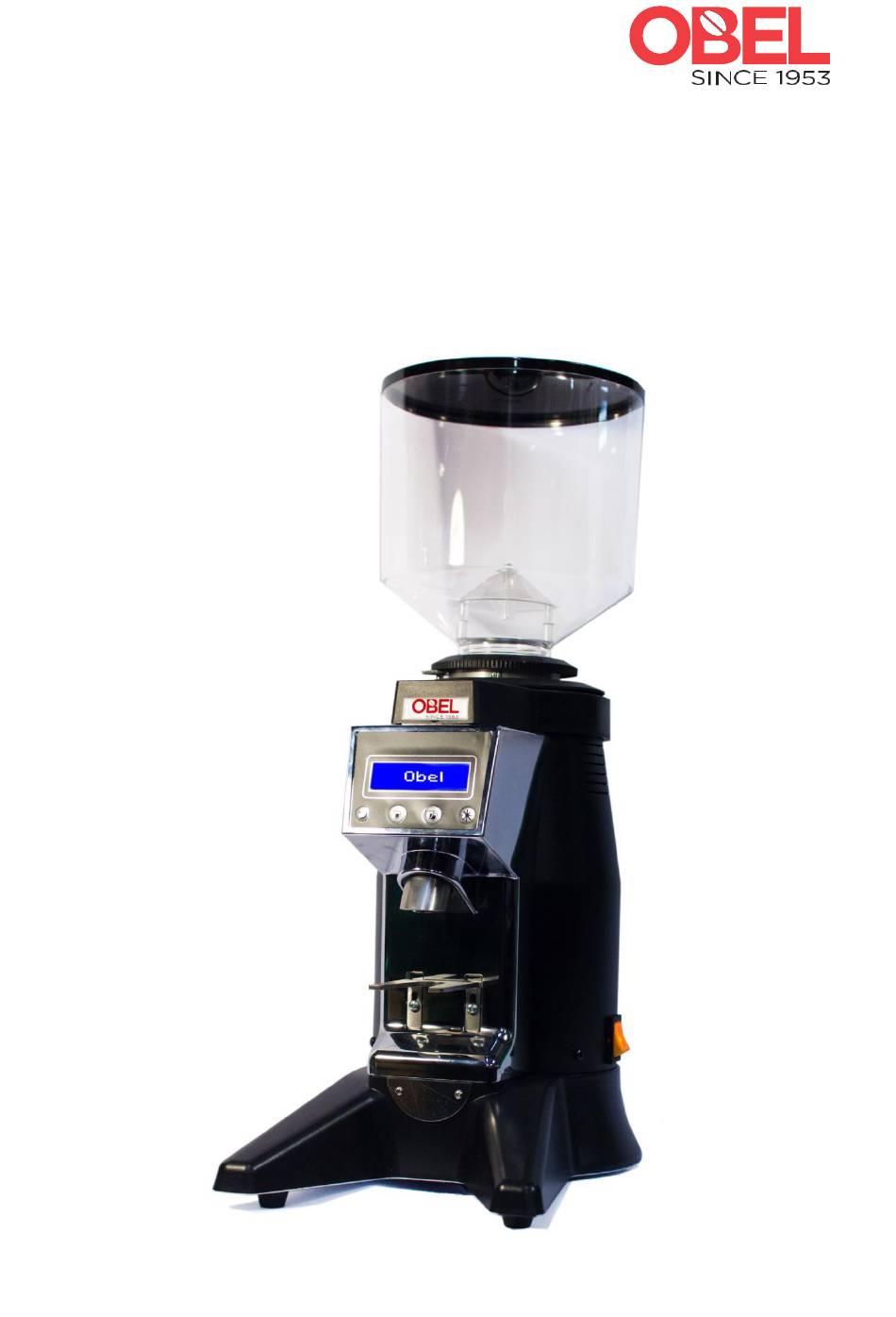

  • Page 1 INSTALLATION MAINTENANCE COFFEE GRINDER MITO ON DEMAND ENGLISH Rev. 18/04...

  • Page 2: Table Of Contents

    Before performing any cleaning or maintenance, unplug the appliance, either by removing the plug from the socket or disconnecting the main electrical supply. In case of failure or malfunctioning, turn the appliance off and avoid fixing it directly. For any maintenance operations please exclusively address an authorized OBEL SRL technical center...

  • Page 3: Rules For Installation, Use And Cleaning

    To avoid dangerous overheating, we recommend fully unwinding the power cord. The user must not replace the power cord. If the cord is damaged, or have to be replaced, address an authorized OBEL SRL technical service.
  • Page 4 Do not use the device without coffee. Do not leave the appliance where temperature goes below zero. Tecnical Data Mito ON DEMAND 64 Mito ON DEMAND 75 Volt – 230 single phase Volt – 230 single phase...

  • Page 5: Installation

    INSTALLATION MAINTENANCE Legenda Hopper Slide gate Grinding adjustment gear Grinding adjustment blocking pin Keyboard Filter holder fork Main switch INSTALLATION The appliance has to be installed by qualified personnel in accordance with the below instructions: • Make sure that the power supply is adequate to the appliance’s power rating and voltage; Make sure that the socket is properly earthed;...

  • Page 6: Use Of The Coffee Grinder

    INSTALLATION MAINTENANCE • Turn it anti-clockwise to move the burrs further apart for coarser grinding. WARNING The coffee grinder is equipped with a safety device preventing the motor from overheating. Should the safety device set in, wait for the system to cool down and make sure that the overheating is not caused by external sources.

  • Page 7: User Level Programming Mode

    INSTALLATION MAINTENANCE stop a grinding cycle in progress before the timer has ended by pressing the dose key of the relative cycle or the key. You can start continuous grinding by pressing and holding at the same time for about 3 seconds.

  • Page 8: Technician Reading And Programming Mode

    INSTALLATION MAINTENANCE set the required value, press the key to save it in the memory. The new value is shown on the display (no longer blinking). For example: Range of programmable value (for both “single” dose 1 and “double” dose 2): min: 0 seconds max: 50 seconds step: 0, 1 seconds...
  • Page 9 INSTALLATION MAINTENANCE This procedure reset both single dose and double dose partial counters. You can then press the key to switch to the TOTAL number of dose 2 cycles, for example: This parameter identifies the TOTAL number of dose 2 grinding cycles completed by the machine. This value is not resettable.

  • Page 10: Data Preset

    INSTALLATION MAINTENANCE You can however press the key to exit programming mode before the 60 second have elapsed SET TO ZERO THE PARTIAL COUNTERS ON PCB RELEASES FROM 1.5 TO 1.10 PCB from 1.5 to 1.10 Turn off the grinder using the main switch (8). Turn on again the grinder while pressing at the same time until display shows : RESET PARZIALI...

  • Page 11: Maintenance

    INSTALLATION MAINTENANCE • Activate the grinder until no more powder will be dispensed • Turn off and unplug the grinder • Remove the hopper by unscrewing it • Unscrew the lock screw from the grinding adjustment gear. • Press down the docking rod with one hand and with the other unscrew the burrs housing gear by turning it anti-clockwise •...

  • Page 12: Wiring Diagram

    INSTALLATION MAINTENANCE WIRING DIAGRAM...

  • Page 13: Wiring Diagram Performance

    INSTALLATION MAINTENANCE WIRING DIAGRAM-PERFORMANCE Istruzioni per il trattamento a fine vita Italiano Questo prodotto è conforme alla Direttivo EU 2002/96/EC.Il simbolo apposto sull apparecchiatura o sulla confezione indica che I’apparecchiatura, alla fine della propria vita utile, non deve essere trattata come un rifiuto domestico generico ma deve essere portata in un centro di raccolta differenziata per apparecchiature elettriche o elettroniche approntato dalla Pubblica amministrazione.
  • Page 14 INSTALLATION MAINTENANCE English This product complies with EU Directive 2002/96/ EC. The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

This manual is also suitable for:

Mito on demand seriesMito on demand 75
