Broadata Communications LB-KP4 User Manual

4- and 8-button keypad with rs-232 interface
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

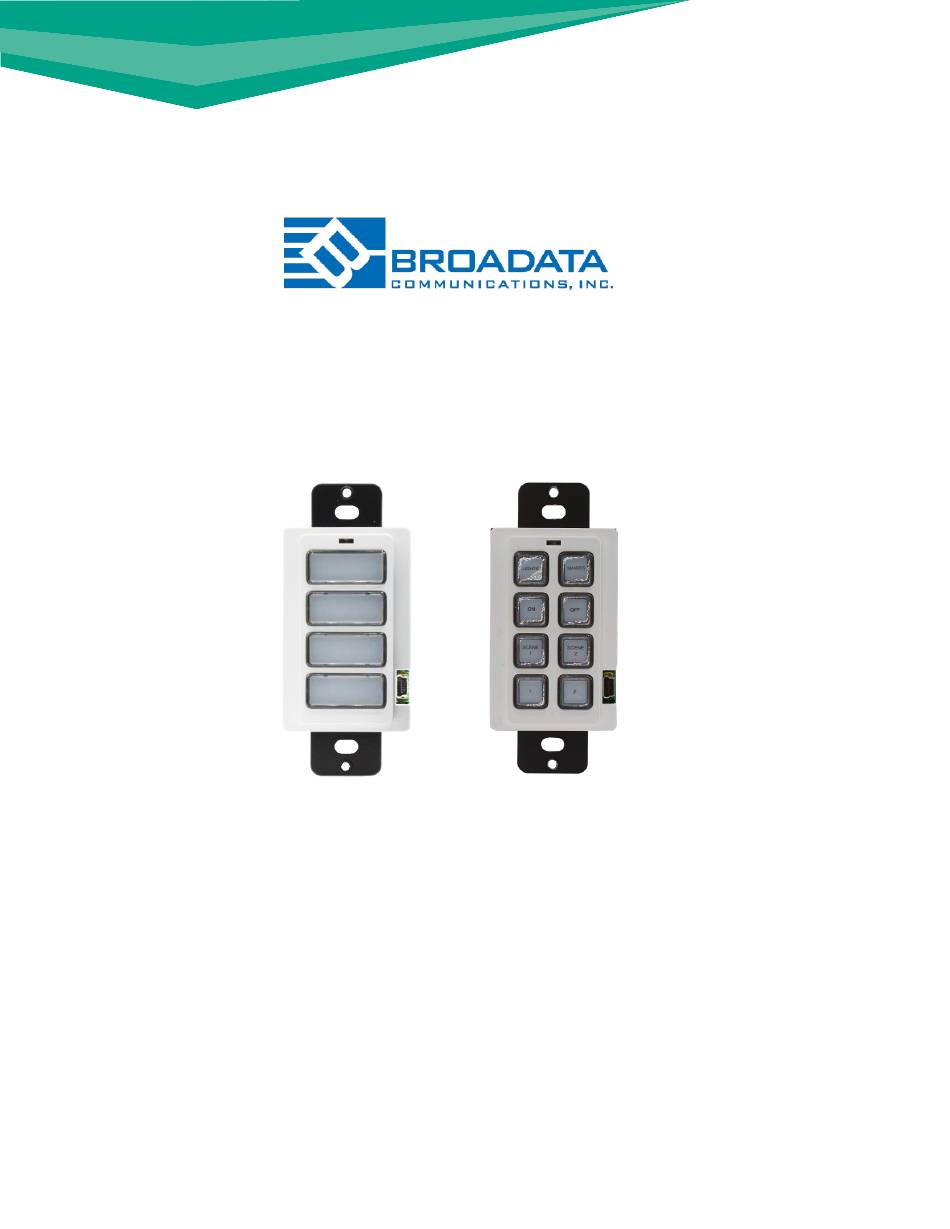

4- AND 8-BUTTON KEYPAD
WITH RS-232 INTERFACE
LB-KP4 / LB-KP8

USER MANUAL

BCI reserves the right to make changes to the products described herein without
prior notice or consent. No liability is assumed as a result of their use or application.
All rights reserved.
©2019 Broadata Communications, Inc.

Advertisement

Table of Contents
loading

Related Manuals for Broadata Communications LB-KP4

Summary of Contents for Broadata Communications LB-KP4

  • Page 1: User Manual

    4- AND 8-BUTTON KEYPAD WITH RS-232 INTERFACE LB-KP4 / LB-KP8 USER MANUAL BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application.
  • Page 2 This product contains sensitive electrical components that may be damaged by electrical spikes,surges,electric shock,lightning strikes, etc. Use of surge proctection system is highly recommended in order to protect and extend the life of your equipment. 4 and 8-Button Keypad with RS-232 Interface User Manual (LB-KP4 / LB-KP8)
  • Page 3 Install this device in a secure location where it cannot be easily pushed or knocked over. Use of this device is not suitable for use within 6 ft. of a medical patient. 4 and 8-Button Keypad with RS-232 Interface User Manual (LB-KP4 / LB-KP8)

  • Page 4: Table Of Contents

    TABLE OF CONTENTS PRODUCT DESCRIPTION OPERATION CONTROL AND FUNCTIONS FRONT/REAR PANEL CONNECTOR PIN OUT ASSIGNMENT CONFIGURATION SPECIFICATIONS SERVICE PROCEDURE REPLACEMENT POLICY RETURN AND REPAIR SERVICE LIMITED WARRANTY 4 and 8-Button Keypad with RS-232 Interface User Manual (LB-KP4 / LB-KP8)

  • Page 5: Product Description

    8-key (or 4-key) keypad with RS-232 interface • Remote power over CATx Cable • Dual-Color user configurable buttons (configured in LBC-H/O-R-ICP) • Replaceable button labels • Easy integration with LBC-H/O-R-ICP 4 and 8-Button Keypad with RS-232 Interface User Manual (LB-KP4 / LB-KP8)

  • Page 6: Operation Control And Functions

    Used to mount keypad to a wallplate USB PORT: Used for firmware updates CONTROL PORT: Uses a CAT-5 cable with RJ-45 termination to connect to the Control Processor 4 and 8-Button Keypad with RS-232 Interface User Manual (LB-KP4 / LB-KP8)
  • Page 7 3. Center the selected button label within the rubber pocket 4. Replace the Clear Keycap 5. Repeat the steps above for each button and then replace the faceplate Clear Keycap Button Label 4 and 8-Button Keypad with RS-232 Interface User Manual (LB-KP4 / LB-KP8)
  • Page 8 Terminate both ends of the CATx cable per the cable diagram. Keypad (LB-KP4 or LB-KP8) Integrated Control Processor LBC-H/O-R-ICP RS-232 HDBaseT SWITCHING TRANSMITTER LBC-HDV-T 4 and 8-Button Keypad with RS-232 Interface User Manual (LB-KP4 / LB-KP8)

  • Page 9: Connector Pinout Assignment

    LBC-H/O-R-ICP. Please double check that the cable terminations on both ends are terminated according to Diagram A. +12V (BLUE) (TX) ORG (GND) BRN (RX) WHT/ORG Diagram A 4 and 8-Button Keypad with RS-232 Interface User Manual (LB-KP4 / LB-KP8)

  • Page 10: Configuration

    On the top menu bar, click on Keypad. The virtual 8 button keypad page shown below will be loaded. Each button on the virtual keypad represents a button on the LB-KP8. By default buttons are unconfigured and labeled F1 to F8. 4 and 8-Button Keypad with RS-232 Interface User Manual (LB-KP4 / LB-KP8)
  • Page 11 CONFIGURATION BUTTON CONFIGURATION On the top menu bar click on Customize and then click on 8/16 Button Keypad. The following Button Keypad Definition page will be loaded. 4 and 8-Button Keypad with RS-232 Interface User Manual (LB-KP4 / LB-KP8)
  • Page 12 In Spacing field enter 0.0. In the Action Type drop down menu, select Relay. In the Action drop down menu, select Relay 1 On. Click on Submit Changes button. 4 and 8-Button Keypad with RS-232 Interface User Manual (LB-KP4 / LB-KP8)
  • Page 13 In Spacing field enter 0.0. In the Action Type drop down menu, select Relay. In the Action drop down menu, select Relay 1 Off. Click on Submit Changes button. 4 and 8-Button Keypad with RS-232 Interface User Manual (LB-KP4 / LB-KP8)
  • Page 14 Click on the Relay 1 On button to turn on Relay 1. Click on the Relay 1 Off button to turn off Relay 1. On the LB-KP8, pressing the F1 button should turn on Relay 1 and pressing the F2 button should turn off Relay 1. 4 and 8-Button Keypad with RS-232 Interface User Manual (LB-KP4 / LB-KP8)
  • Page 15 In Spacing field enter 0.0. In the Action Type drop down menu, select Relay. In the Action drop down menu, select Relay 2 On. Click on Submit Changes button. 4 and 8-Button Keypad with RS-232 Interface User Manual (LB-KP4 / LB-KP8)
  • Page 16 In the Action drop down menu, select Relay 2 Off. Click on Submit Changes button. To test the button, click on Keypad on the top menu bar. The following keypad should be shown. 4 and 8-Button Keypad with RS-232 Interface User Manual (LB-KP4 / LB-KP8)
  • Page 17 In the RS-232 Channel drop down menu, select 1. In the Transmit String box, type in serial string. Click the Submit Changes button. The RS-232 action, named RS-232 string, has been created. 4 and 8-Button Keypad with RS-232 Interface User Manual (LB-KP4 / LB-KP8)
  • Page 18 In Spacing field enter 0.0. In the Action Type drop down menu, select RS-232. In the Action drop down menu, select RS-232 string. Click on Submit Changes button. 4 and 8-Button Keypad with RS-232 Interface User Manual (LB-KP4 / LB-KP8)
  • Page 19 RS-232 channel 1. LB-KP4 Configuration The LB-KP4 is configured that same way as the LB-KP8. Select the Keypad Type 8 button keypad on the System Configure page when configuring the LB-KP4. Only the first 4 keys, F1 to F4, should be configured.

  • Page 20: Specifications

    Storage Temperature -20°C to 60°C 12V, 0.5A Power Supply CERTIFICATIONS CE, FCC GREEN COMPLIANCE RoHS ORDER INFORMATION LB-KP8 8-Button Keypad with RS232 Interface 4-Button Keypad with RS232 Interface LB-KP4 4 and 8-Button Keypad with RS-232 Interface User Manual (LB-KP4 / LB-KP8)

  • Page 21: Service Procedure

    • Complete Description of Problem • Hardware Installation Description Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: CustomerService@Broadatacom.com Website: www.broadatacom.com 4 and 8-Button Keypad with RS-232 Interface User Manual (LB-KP4 / LB-KP8)

  • Page 22: Limited Warranty

    LIMITED WARRANTY 6.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of ship- ment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s election, by replacement, any said products that in our sole discretion prove to be defective and are returned to the manufacturing location within 30 days after such defect is ascertained.
  • Page 23 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: Sales@Broadatacom.com 2545 West 237th Street Website: www.broadatacom.com Torrance, CA 90505 800•214•0222 310•530•1416 e-mail: Sales@broadatacom.com www.broadatacom.com 4 and 8-Button Keypad with RS-232 Interface User Manual (LB-KP4 / LB-KP8)- 60000LBKP4/LBKP8...
