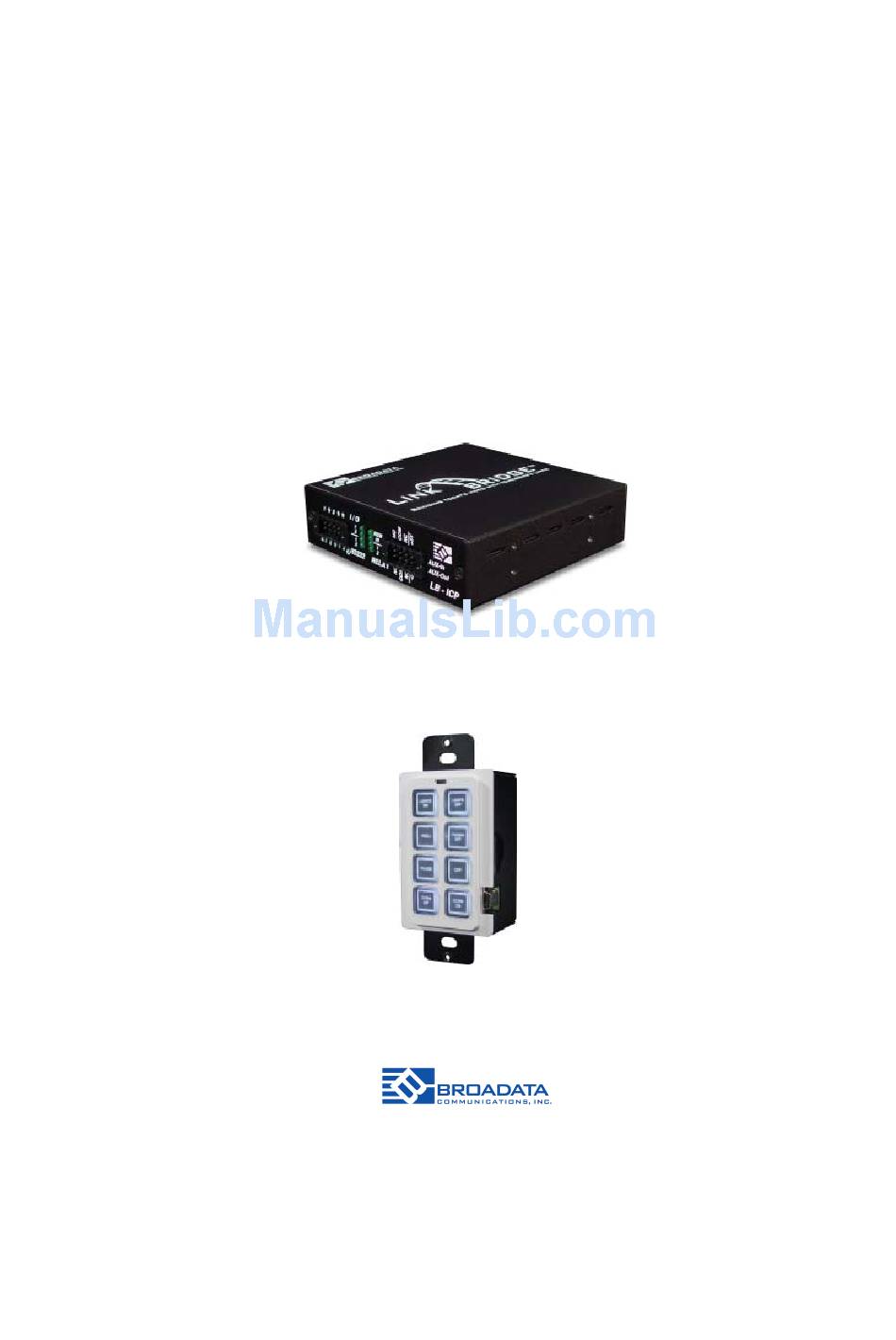

Broadata Communications LB-ICP User Manual

Link bridge inline control processor, keypad, 8 keys with rs-232 interface

Advertisement

Quick Links

LB-ICP
TM
L
B
INK
RIDGE
I
C
P
NLINE
ONTROL
ROCESSOR
LB-KP8
K
, 8 K
RS-232 I
EYPAD
EYS WITH
NTERFACE
BCI reserves the right to make changes to the products described herein without prior
notice or consent. No liability is assumed as a result of their use or application. All
rights reserved.
©2013 Broadata Communications, Inc.

Advertisement

Table of Contents
loading

Summary of Contents for Broadata Communications LB-ICP

  • Page 1 EYPAD EYS WITH NTERFACE BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2013 Broadata Communications, Inc.
  • Page 2 LB-LB-ICP/LB-KP8 User’s Manual Link Bridge Inline Control Processor/Keypad, w/RS-232 Interface SAFETY INSTRUCTIONS AND COMPLIANCE DECLARATIONS PLEASE OBSERVE THE FOLLOWING SAFETY PRECAUTIONS AS OUR PRODUCTS CONTAIN CLASS I LASER PRODUCTS WARNING This product is a CLASS I LASER PRODUCT only when the units are connected with a fiber optical cable.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1.0 PRODUCT DESCRIPTION ..........5 2.0 OPERATION CONTROL AND FUNCTIONS ....6 2.1 LB-ICP FRONT AND REAR PANELS ......6 2.2 LB-KP8 FRONT AND REAR PANEL ....... 7 3.0 CONNECTOR PINOUT ASSIGNMENT ......8 3.1 LB-ICP ................8 3.2 LB-KP8 ................
  • Page 4: Product Description

    LB-LB-ICP/LB-KP8 User’s Manual Link Bridge Inline Control Processor/Keypad, w/RS-232 Interface 1.0 PRODUCT DESCRIPTION LB-ICP • An inline control processor with multiple control I/O ports • Control I/O ports contain: • two (2) RS-232 - two (2) Relay - two (2) Digital I/O...
  • Page 5: Operation Control And Functions

    LB-LB-ICP/LB-KP8 User’s Manual Link Bridge Inline Control Processor/Keypad, w/RS-232 Interface OPERATION CONTROLS AND FUNCTIONS 2.1 LB-ICP Front and Rear Panel Front Back 1. Digital I/O: Digital input/output ports. 2. Digital I/O LEDs: Light when the corresponding ports are active high.
  • Page 6: Lb-Kp8 Front And Rear Panel

    2.2 LB-KP8 Front and Rear Panel Front Rear Control 1. F1 - F8: Functional keys for activating user-defined control functions. 2. Keypad control port (RJ-45), connects to LB-ICP CONFIG port (labeled 15 in LB-ICP). 3. Cable connection between LB-ICP and LB-KP8. Broadata Technical Support, Sales@Broadatacom.com...
  • Page 7: Connector Pinout Assignment

    LB-LB-ICP/LB-KP8 User’s Manual Link Bridge Inline Control Processor/Keypad, w/RS-232 Interface 3.0 CONNECTOR PINOUT ASSIGNMENT 3.1 LB-ICP Front Broadata Technical Support, (800) 214-0222...
  • Page 8: Lb-Kp8

    LB-LB-ICP/LB-KP8 User’s Manual Link Bridge Inline Control Processor/Keypad, w/RS-232 Interface IR detector IR OUT for behind holes external emitter Rear Reset button: push to reset to default settings RJ-45 DIP SW CONFIG/Keypad IR Learn LED 1 - TX+ Position 1: Local/Remote 1.
  • Page 9 LB-LB-ICP/LB-KP8 User’s Manual Link Bridge Inline Control Processor/Keypad, w/RS-232 Interface The cable connection between LB-KP8 and LB-ICP is shown below. 1. White/Orange +12VDC IR Out Learner 2. Orange 3. White/Green 4. Blue CONFIG RESET 5. White/Blue 6. Green 7. White/Brown 8.
  • Page 10: Lb-Icp Web Server Description

    LB-LB-ICP/LB-KP8 User’s Manual Link Bridge Inline Control Processor/Keypad, w/RS-232 Interface 4.0 LB-ICP WEB SERVER DESCRIPTION Introduction The ICP Web Server provides user friendly and intuitive web pages to configure the 8-button virtual keypad and automation functions within the ICP. It also provides a web page to manage the IR Learner. A standard web browser can be used to access the web pages.
  • Page 11 LB-LB-ICP/LB-KP8 User’s Manual Link Bridge Inline Control Processor/Keypad, w/RS-232 Interface Before configuring the Virtual Keypad, the system first needs to be set up using the Configure System page. On the top menu bar, click Configure and then click System. This brings up the ICP Login page.
  • Page 12 LB-LB-ICP/LB-KP8 User’s Manual Link Bridge Inline Control Processor/Keypad, w/RS-232 Interface Configure System The Configure System page is used to configure the local unit and remote unit types. The digital IO settings on the local unit are also configured on this page.
  • Page 13 LB-LB-ICP/LB-KP8 User’s Manual Link Bridge Inline Control Processor/Keypad, w/RS-232 Interface Digital IO Channel: Select channel 1 or 2. Digital IO Direction: Select channel as a digital Input or Output. If the Digital IO Direction is set to Input, there is an option for Pullup Resistor.
  • Page 14 LB-LB-ICP/LB-KP8 User’s Manual Link Bridge Inline Control Processor/Keypad, w/RS-232 Interface Configure Key Action The Configure Key Action page is used to configure the 8-key virtual keypad. Each function key can be defined to trigger up to 5 different actions. On the top menu click Configure and then click Key Action.
  • Page 15 LB-LB-ICP/LB-KP8 User’s Manual Link Bridge Inline Control Processor/Keypad, w/RS-232 Interface Command Action: Select the action number to be defined. Action 1 through Action 5 can be defined. Spacing: Enter the delay (in seconds) desired following the command action. Action Type: Select the action type.
  • Page 16 LB-LB-ICP/LB-KP8 User’s Manual Link Bridge Inline Control Processor/Keypad, w/RS-232 Interface Digital Output Options Digital Output Channel: Select the digital output channel 1 or 2. Note: this option is not available if both Digital IO channels are set to Inputs in Configure System page.
  • Page 17 LB-LB-ICP/LB-KP8 User’s Manual Link Bridge Inline Control Processor/Keypad, w/RS-232 Interface RS-232 Options RS-232 Channel: Select channel 1, 2, 3 or 4. Note: Channels 3 and 4 are only available on LBC-ICP and EAD/SCL-ICP units. Channel 1/2: RS-232 control channels. Channel 3: RS-232 control channel or pass-through channel. Channel 3 defaults as a control channel.
  • Page 18 LB-LB-ICP/LB-KP8 User’s Manual Link Bridge Inline Control Processor/Keypad, w/RS-232 Interface Flow Control: Select On to enable flow control and Off to disable flow control. Flow control is available only on Channel 1. If flow control is enabled, Channel 2 is no longer available.
  • Page 19 LB-LB-ICP/LB-KP8 User’s Manual Link Bridge Inline Control Processor/Keypad, w/RS-232 Interface Configure Auto Action The Configure Auto Action page is used to configure a set of auto actions based on a selected trigger. Available triggers are Video Detect, Digital Input 1 and Digital Input 2. The available actions are Relay, RS- 232 and IR.
  • Page 20 LB-LB-ICP/LB-KP8 User’s Manual Link Bridge Inline Control Processor/Keypad, w/RS-232 Interface Configure IR Code The Configure IR Code page is used to learn and manage IR codes in the ICP. To learn an IR code, type in the label of the IR code in New Label and click the Learn button.
  • Page 21 LB-LB-ICP/LB-KP8 User’s Manual Link Bridge Inline Control Processor/Keypad, w/RS-232 Interface View and Manage Settings The View and Manage Settings page shows the current settings of the Key Action Definitions, Auto Action Definitions and IR Code Definitions. Click the Details button next to Key Action Definitions to display the Key Action settings details.
  • Page 22 LB-LB-ICP/LB-KP8 User’s Manual Link Bridge Inline Control Processor/Keypad, w/RS-232 Interface Click the Key Action Definitions Details button and the following will be displayed: Broadata Technical Support, Sales@Broadatacom.com...
  • Page 23 LB-LB-ICP/LB-KP8 User’s Manual Link Bridge Inline Control Processor/Keypad, w/RS-232 Interface Click the Auto Action Definitions Details button and the following will be displayed: Click the IR Code Definitions Details button and the following will be displayed: Broadata Technical Support, (800) 214-0222...
  • Page 24 LB-LB-ICP/LB-KP8 User’s Manual Link Bridge Inline Control Processor/Keypad, w/RS-232 Interface Examples Example #1: This example configures the F1 key on the virtual keypad as a toggle key to turn on/off Relay channel 1. On the top menu click Configure and then Key Action.
  • Page 25 LB-LB-ICP/LB-KP8 User’s Manual Link Bridge Inline Control Processor/Keypad, w/RS-232 Interface Configure F1 Key toggle-release action, to turn Relay channel 1 Off as follows: Click Submit Changes. On the top menu click Keypad. The following virtual keypad should be displayed: Broadata Technical Support, (800) 214-0222...
  • Page 26: Specifications

    LB-LB-ICP/LB-KP8 User’s Manual Link Bridge Inline Control Processor/Keypad, w/RS-232 Interface 5.0 SPECIFICATIONS Ethernet (Control) Channel Capacity Connector Female RJ-45 (integrated Activity and Link LEDs) Data Rate 10/100Base-T, half/full duplex with autodetect Protocols DHCP, HTTP, TCP/IP, UDP/IP, AUTOIP, Telnet RS-232 (Control)
  • Page 27 0 to 95%, non-condensing KEYPAD (LB-KP8) Dimensions 1.78” (W) x 1.66” (D) x 2.85” (H) Configuration Port RS-232, baud rate 19200 baud, 8 data bits, 1 stop bit, no parity Power 12 VDC (powered by LB-ICP) Broadata Technical Support, (800) 214-0222...
  • Page 28: Service Procedure

    U.S. Please call Customer Service at 800-214-0222 for information. 6.2 Return/Repair Service The Link Bridge LB-ICP/LB-KP8 System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/repair processing please contact Broadata Communications, Inc.
  • Page 29: Limited Warranty

    Inline Control Processor/Keypad, w/RS-232 Interface 7.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s election, by replacement, any said products that in our sole...
  • Page 30 LB-LB-ICP/LB-KP8 User’s Manual Link Bridge Inline Control Processor/Keypad, w/RS-232 Interface Broadata Technical Support, Sales@Broadatacom.com...
  • Page 31 LB-LB-ICP/LB-KP8 User’s Manual Link Bridge Inline Control Processor/Keypad, w/RS-232 Interface Broadata Technical Support, (800) 214-0222...
  • Page 32 LB-LB-ICP/LB-KP8 User’s Manual Link Bridge Inline Control Processor/Keypad, w/RS-232 Interface Broadata Technical Support, Sales@Broadatacom.com...
  • Page 33 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: CustomerService@Broadatacom.com Website: www.broadatacom.com 60000-LB-ICP/LB-KP8...
