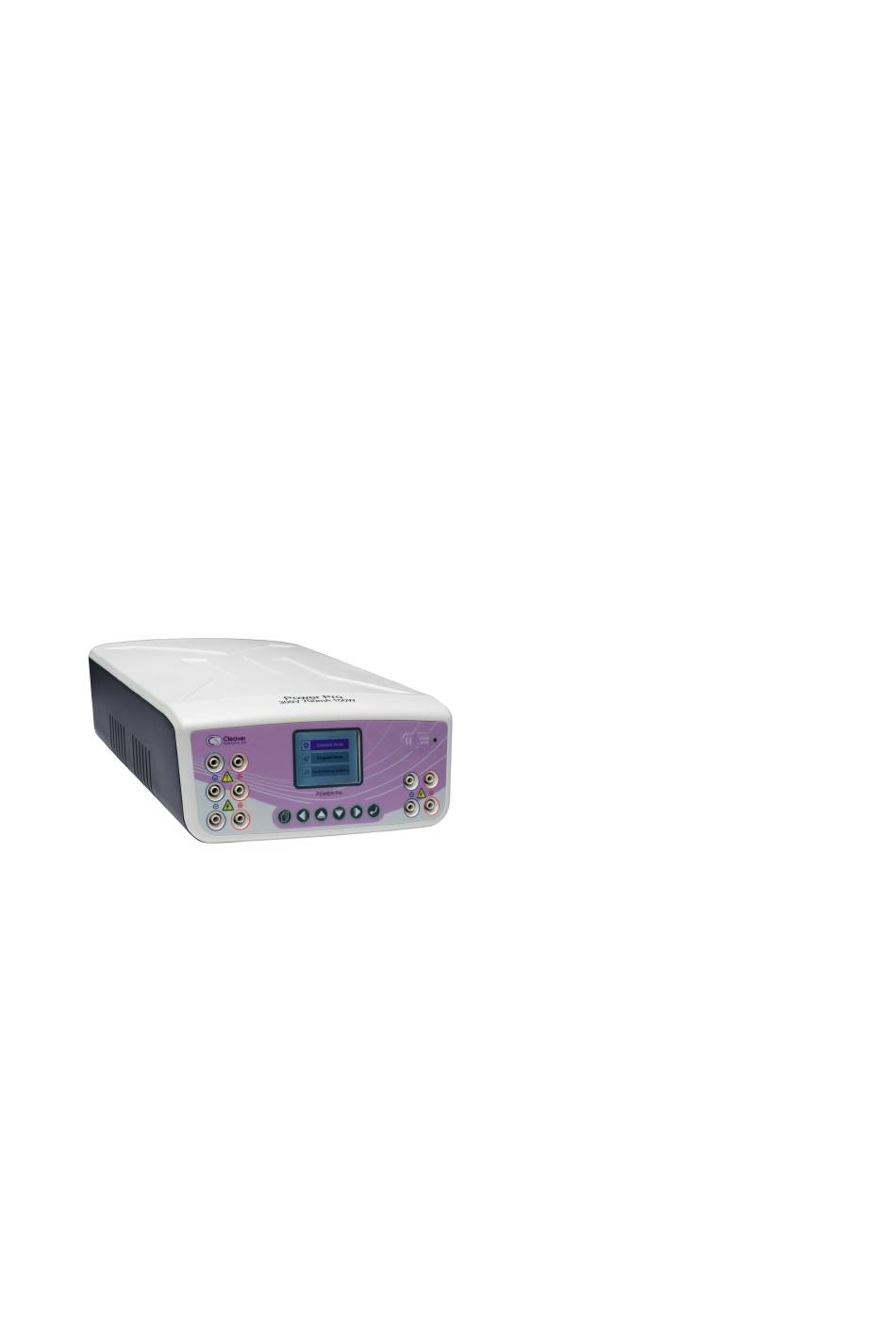

- Page 1 POWERPRO...
-
Page 3: Instruction Manual
Series Power Supplies Instruction Manual Catalogue Numbers powerPRO300 powerPRO500 powerPRO3AMP Record the following for your records: Model _____________________ Catalogue No. _____________________ Date of Delivery _____________________ Warranty Period _____________________ Serial No. _____________________ Invoice No. _____________________ Purchase Order No. _____________________ 13/11/2018... -
Page 4: Table Of Contents
Contents Instruction Manual Catalogue Numbers Contents Safety Information Precautions Environmental Conditions Avoiding Electrical Shock Avoiding Damage to the Instrument Equipment Operation Symbols Potential Risk and Preventive Measures Risk assessment table Preventative measures Packing List Specifications Operating Instructions Installation Control Interface Operation Constant Mode Program Mode... -
Page 5: Safety Information
Safety Information Cleaver Scientific powerPRO Power Supply has been tested and found to comply with the limits for the CE regulation. Also, it is RoHS compliant to deliver confident product which meets the environmental directive. These limits are designed to provide reasonable protection against harmful interference when the instrument series is operated in a commercial environment. -
Page 6: Precautions
Follow the guidelines below to ensure safe operation of the unit. The powerPRO Power Supply has been designed to utilize shielded wires thus minimizing any potential shock hazard to the user. Cleaver Scientific recommends against the use of unshielded wires. -
Page 7: Equipment Operation
space behind the instrument, and at least 5 cm of space on each side. 4. Use high level of precaution against the damages on the unit. 5. Do not operate the unit out of environmental conditions addressed above. 6. Do not operate the power supplies in high humidity environments (> 95%), or where condensation may occur. -
Page 8: Potential Risk And Preventive Measures
Caution/ Warning: Indicates a hazardous situation which, if not avoided, could result in death or serious injury. powerPRO 300 Max. voltage: 300 V Max. current: 700 mA Max. watt: 150 W powerPRO 3AMP Max. voltage: 300 V Max. current: 3000 mA Max. -
Page 9: Packing List
The unit should be checked for damage when received. Cleaver Scientific is liable for all missing or damaged parts / accessories within 7 days after customer received this instrument package. Please contact Cleaver Scientific immediately regarding this issue. If no response within such period from consignee party, that will be consignee party’s whole... -
Page 10: Specifications
Specifications powerPRO 300 powerPRO 3AMP powerPRO 500 Output Voltage / Inc 5 - 300V / 1V 5 – 300 / 1V 5 – 500 / 1V Output Current / Inc 1 - 700mA / 1mA 10 – 3,000mA / 10mA 1 –... - Page 11 Cleaver Scientific powerPRO Series Power Supply are microprocessor controlled and designed to meet most electrophoresis needs. This manual describes the setup and operation of the powerPRO Series Power Supply including important information on safety and maintenance of the unit. The powerPRO Series Power Supply are capable of running horizontal &...
-
Page 12: Operating Instructions
Operating Instructions Installation powerPRO Series Power Supplies require no complex installation. As long as the unit is placed on a sturdy and level surface in a safe, dry place, and further connects with well-prepared electrophoresis systems, it is ready for operation. -
Page 13: Operation
Operation 1. Place the unit on a sturdy and level surface in a safe, dry place, away from laboratory traffic. 2. Ensure that the AC power switch is OFF, and then plug the three- pronged power cord one end into a grounded three-prong AC outlet with appropriate voltage (100V to 240V as indicated on the rating sticker near the AC cord on the back of the unit) and plug the other end into the main power socket. - Page 14 2. Use the up and down arrows to select which parameter should be kept constant. Press the enter key to move to the next page. 3. Use the up and down arrows to navigate the parameters, press the enter key to start parameter adjustment.
-
Page 15: Program Mode
The Program Mode allows you to vary levels in voltage (V), current (mA), and power (W) during specified time periods for up to 6 Steps, depending upon your electrophoresis needs. The powerPRO Series power supply is capable of having 30 different program files storages for user’s convenience. After starting the operation, set the Program Mode as follow: 1. -
Page 16: Typical Running Conditions
6. Press the start Key to begin electrophoresis. The LED next to the start key will light, indicating the power supply is active. Parameter values can be viewed during the run. 7. Pressing the pause key will temporarily pause the run and will allow parameter values to be altered using the same method outlined above. - Page 17 2. There are 4 categories that can be selected. Choose the model according to your experiment need. 3. After selecting model, the pre-set value will display. These values can be adjusted as described previously. 4. Press the start button to begin electrophoresis. 13/11/2018 Page 15...
-
Page 18: Troubleshooting
Use the correct cords. The fuse has blown Replace the fuse. Repeated fuse broken Hardware failure Contact Cleaver Scientific service department Operation stops and Communication wires on It is recommended to send the machine the screen displays... - Page 19 Operation stops with Circuit is interrupted Verify that the running buffer is correct. alarm: Verify the all cables are attached Display shows correctly Turn the Power switch off and on again; restart application. If you cannot restart the instrument, turn off the power, disconnect the power cord from the outlet, and contact Technical Service.
-
Page 20: Care And Maintenance
For additional fuses, contact Cleaver Scientific Maintenance powerPRO Series Power Supply uses all solid-state components and should require no maintenance or recalibration under normal use. If the unit must be returned for repair, contact our service department or your local distributor for shipping instruction. -
Page 21: Warranty
Warranty The Cleaver Scientific Ltd. (CSL) powerPRO units have a warranty against manufacturing and material faults of twelve months from date of customer receipt. If any defects occur during this warranty period, CSL will repair or replace the defective parts free of charge.
