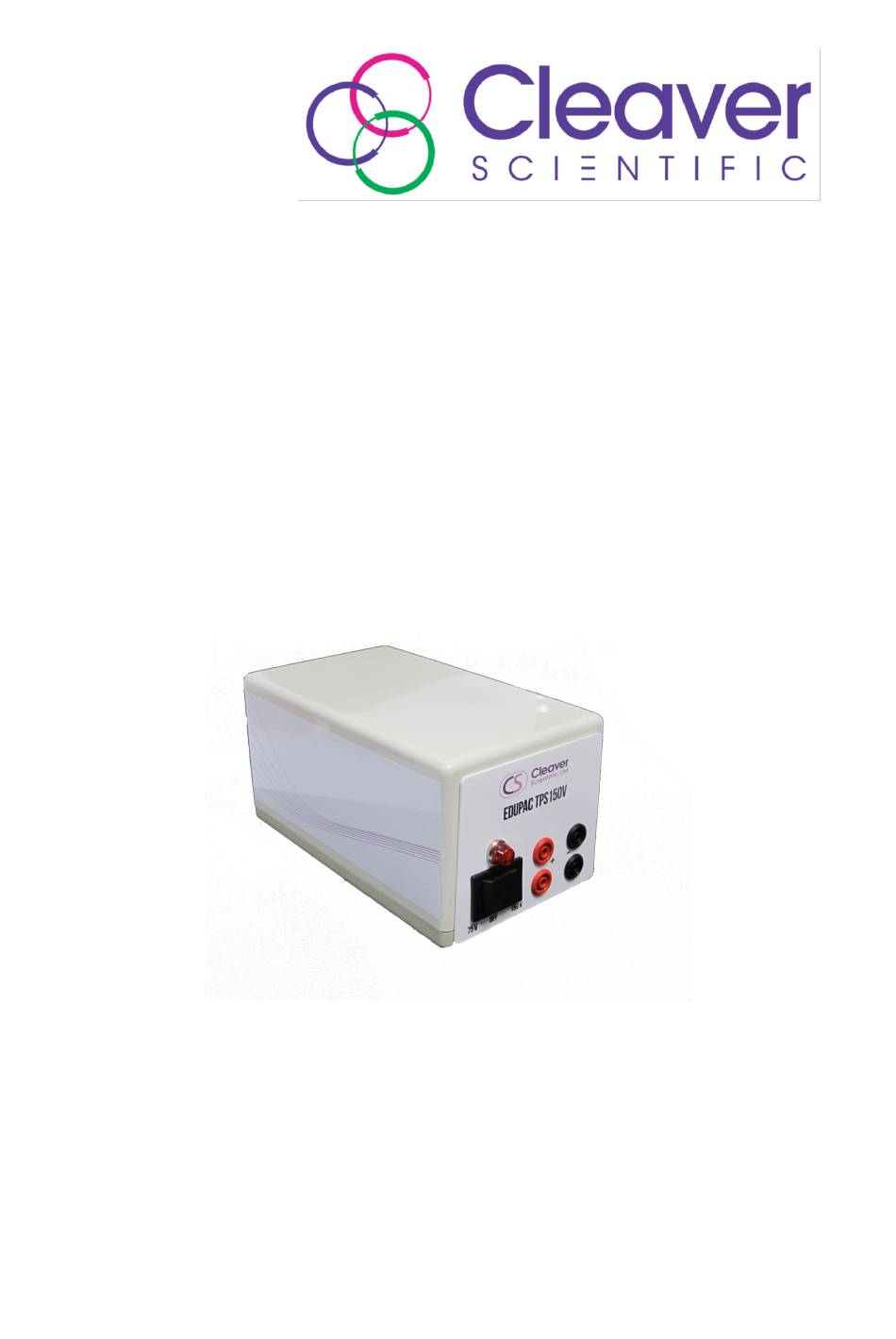

- Page 1 TPS150V Power Supply Instruction manual www.cleaverscientific.com.com info@cleaverscientific.com...
-
Page 2: Packing List
Cleaver Scientifc is liable for all missing or damaged parts / accessories within 7 days after customer received this instrument package. Please contact Cleaver Scientific immediately regarding this issue. If no response within such time period from consignee party, that will be... -
Page 3: Warning
Warning Cleaver Scientific’s Power Supply has been tested and found to comply with the limits for the CE regulation. It is also RoHS compliant to meet the requirements of the environmental directive. These requirements are designed to provide reasonable protection against harmful interference when the instrument series is operated in a commercial environment. - Page 4 Follow the guidelines below to ensure safe operation of the unit. The NANOPAC Power Supplies has been designed to use insulated wires thus minimizing any potential shock hazard to the user. Cleaver Scientific recommends against the use of uninsulated wires.
- Page 5 Avoiding Damage to the Instrument 1. Do not attempt to operate the device if damage is suspected. 2. Protect this unit from physical damage, corrosive agents and extreme temperatures (direct sunlight, etc.). 3. For proper ventilation and safety concerns, keep at least 10 cm of space behind the instrument, and at least 5 cm of space on each side.
-
Page 6: Table Of Contents
Table of Contents Packing list ............................ 2 Warning ............................3 Introduction ...................... 7 Section 1 1.1 Overview ............................7 Technical Specification ................8 Section 2 Installation Instructions ................9 Section 3 Operation Instructions ................. 9 Section 4 4.1 Start the operation ................Error! Bookmark not defined........................ -
Page 7: Introduction
Section 1 Introduction 1.1 Overview Cleaver Scientific TPS150V Power Supply is uniquely equipped with specifications to address the majority of electrophoresis applications. Output voltages can be selected between 75 & 150V giving reproducible data from one experiment to another. -
Page 8: Technical Specification
Section 2 Technical Specification Output Voltage / Inc. 75 or 150V Output Current / Inc. 0 - 300mA Output Type Constant Voltage Terminal Pairs 2 Pairs Ambient to 40 ℃ Operation Temperature Unit Dimension 100 x 191 x 100mm Construction material High Impact Plastic Weight Approx. -
Page 9: Installation Instructions
Section 3 Installation Instructions Power Supply is a factory pre-installed instrument. As long as it is placed on a sturdy and level surface in a safe, dry place, and is connected to a suitably prepared electrophoresis system, it is ready for operation. Section 4 Operation Instructions 4.1 To operate Plug the unit into a grounded 240V mains supply and turn on the unit by... -
Page 10: Defined
4.2 Replacing the Fuse For additional fuses, contact Cleaver Scientific. Ltd. To replace the fuse: 1. Turn off the main power switch at the rear of Power Supply and detach the power cord. 2. Open the fuse compartment located inside the Power Entry Module by inserting a small flat blade screwdriver into the slot below the ON/OFF switch. -
Page 11: Warranty
All claims made under this warranty must be presented to Cleaver Scientific within one year following the date of delivery of the product to the customer.
