The Manual of KL6600

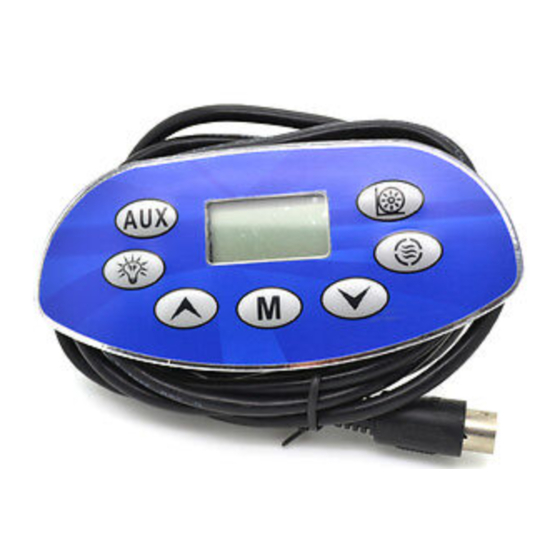

Ⅰ. Overview of the Panels

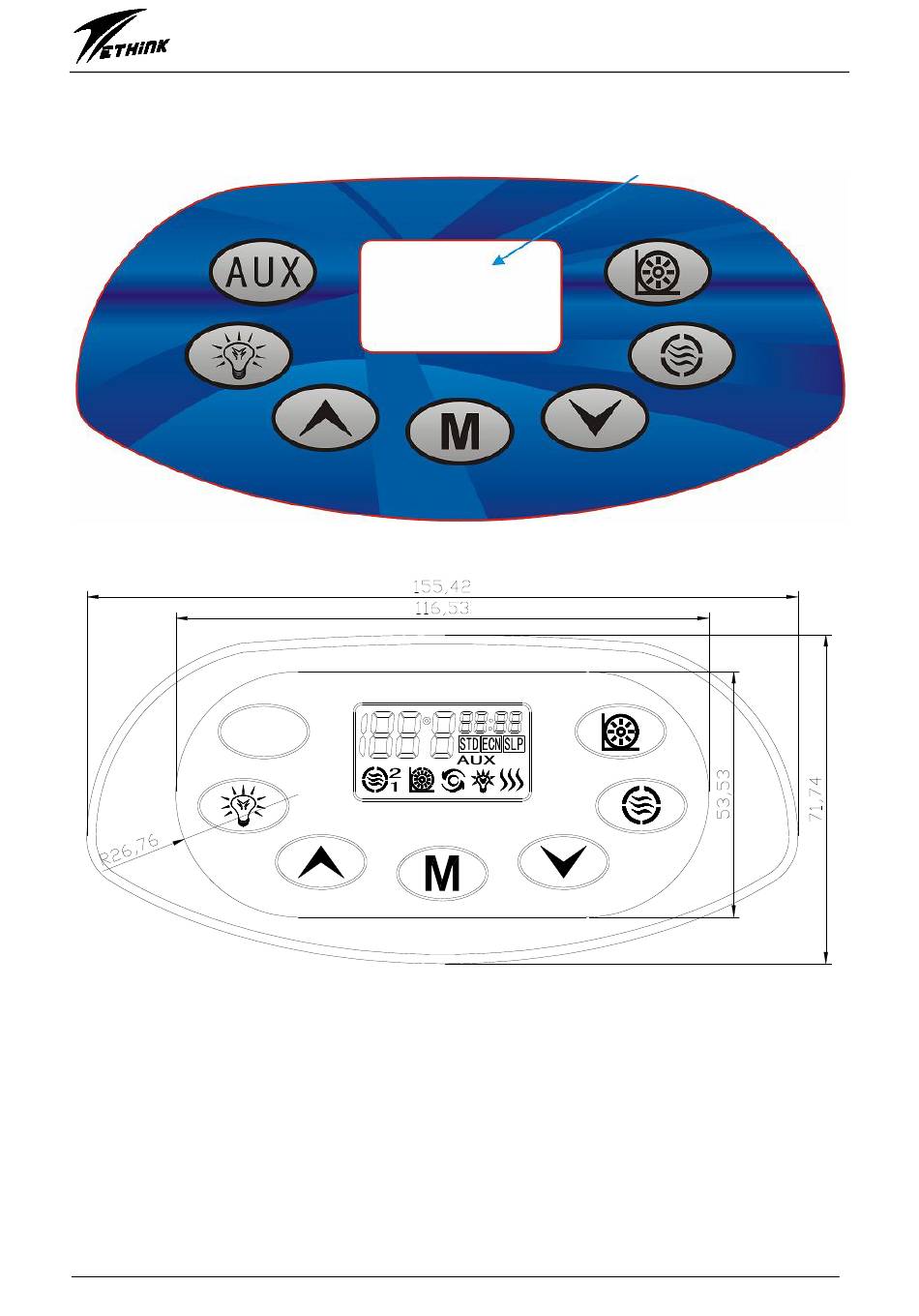

Fig. 1.The plan of panel
AUX
Fig. 2.The installation plan of sever buttons（156*72mm）
Ⅱ.The function summary
1. Three working modes: Normal Mode, Economy Mode and Filter Mode.
2. Plug-and-play mode is to get easy operation and easy installation.
3. 24 hours clock display and setup of circulation-cleaning
4. Max 3KW of the heater, water temperature display and the setting function.
5. 1 surfing pump and 1 blower and an additional load AUX output
6. 1 impact massage pump, divide into ordinary impact and strong impact.
7. Synchronous changing or fixed color with multiple lights and ozone antivirus system.
www.ethink-spa.com
1
Advertisement
Related Manuals for ETHINK KL6600
Summary of Contents for ETHINK KL6600
- Page 1 KL6600 The Manual of KL6600 Ⅰ. Overview of the Panels Fig. 1.The plan of panel Fig. 2.The installation plan of sever buttons（156*72mm） Ⅱ.The function summary 1. Three working modes: Normal Mode, Economy Mode and Filter Mode. 2. Plug-and-play mode is to get easy operation and easy installation.
- Page 2 KL6600 8. Automatically anti-freeze 9. Single color button backlighting 10. Low-voltage part (Light and Ozone) overcurrent protection. 11. Overcurrent protection of circulating pump 12. Auto Moisturizing (optional) 13. Switchbank, selecting the different functions. 14. Error code hinting Ⅲ. Function Description Ⅰ).Initial electrical testing...
-
Page 3: Working Mode
KL6600 2. Under the setting mode, click on “ ” to set “start time of filter cycle”, the LED shows “ ”. 3. The 3rd time to click on “ ” to set “continuous working time of filter cycle”, the LED shows “... -
Page 4: Clock Setting
KL6600 setting temperature. And it will not start to heat at the second filter cycle. 2.5 The 4th time to press “ ”, the system enters to “Filter Mode”, the LED shows “ ”. ***Note*** When A2=ON, there is without “Economy Mode” and it will auto ignore the fourth step when operation. - Page 5 KL6600 5. At the initial stage of each filtering cycle, all the devices will run for 15 seconds to purify the pipeline equipment. Ozone starts to work 15 seconds later. In order to prolong the service life of anti-virus system, every 15 minutes ozone stops working for 15 minutes.
- Page 6 KL6600 A6: OFF: When the temperature appears abnormal, all high-voltage loads will stop working. ON: All high-voltage loads are not affected by temperature sensor control. At this time, it can choose not to connect with the heater. A7: OFF: With a flowing induction sensor, when it is detected to be without flowing, the heater doesn’t work.
- Page 7 KL6600 There is a short circuit place “light” to see whether the control lamp hold synchronizer inside or not. Ⅳ).The operation of “ ” “ ” is to control an additional load to be ON/OFF .And the additional load can be used for DVD/TV or others, and its MAX power is 1KW/230V.
- Page 8 KL6600 Ⅴ.Installation structure 1A/250V KL6600 SENSOR LIGHT OZONE HT48R06A-1 KEY_DIS HT46R23 WCS2705 1 2 3 4 5 6 7 8 Fig.8. KL6600 Control box structure www.ethink-spa.com...
- Page 9 KL6600 Ⅵ. System malfunction warning Fault Failure cause Solutions indication Temperature sensor open 1. Check whether the plug loose or not and “ ” circuit or short circuit whether cable is damaged or not. Water flow sensor open circuit 2. If plug and cable are intact, please replace the “...
-
Page 10: Electrical Parameters
KL6600 .Electrical parameters Ⅶ 1. Performance index Working voltage: AC220-240V / 50Hz (or 110-120V/60Hz) Maximum working current: 30 A/220-240V Compression strength: 1250V / 1 minute Not being punctured. Insulation resistance: 》200MΩ Waterproof level: IPX5 Electric shock preventing: 1 class 2. Maximum output load index...
