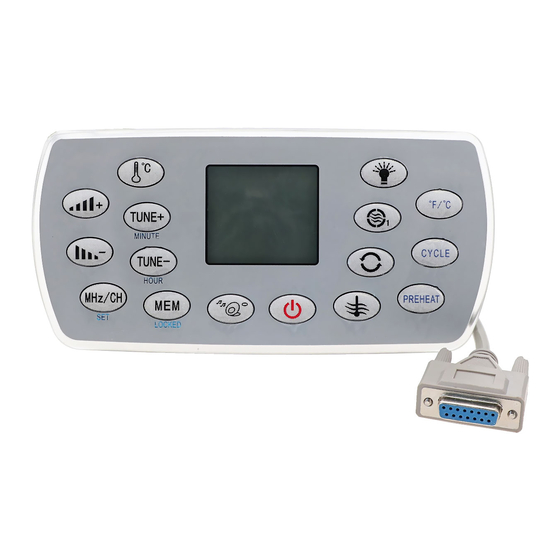

KL8-3H PROGRAMMING INSTRUCTIONS
1．key note
Figure 1.3: with TV / DVD's DC12V power mask map
"
"
Frequency up-searching /
"
"
Frequency down- searching/
+
"
" Volume up
www.ethink-spa.com
Figure 1.1: Conventional panel structure
Minute
Hour
KL8-3H-CAA6/KL8-3H-BAA6
The total on/off & setting confirm
"
"
"
"
Radio / CD input key
Blower on/ Off &
Temperature Mode Shift
1
Advertisement
Table of Contents
Related Manuals for ETHINK KL8-3H Series
Summary of Contents for ETHINK KL8-3H Series
- Page 1 Figure 1.3: with TV / DVD's DC12V power mask map “ ” The total on/off & setting confirm Frequency up-searching / Minute “ ” “ ” “ ” Radio / CD input key Frequency down- searching/ Hour “ Blower on/ Off & Temperature Mode Shift ” Volume up www.ethink-spa.com...
- Page 2 / short circuit shows “E1” 。 Parts of the radio frequency display shows “- - -” indicates that the system is turned off， pre-heating and cleaning cycle in a closed state。 Figure 3： normal temperature display Figure 4： Sensor Open / Short show www.ethink-spa.com...
- Page 3 ”(Hours key) that can change “Circulation clean start time” 。 Every time“ ” Key，increased by 1 minute，hold down the“ ” Key will be for increased minutes。 ” Button to increase the 1 hour，press and hold“ ” Key will be for Every time“ www.ethink-spa.com...
- Page 4 ” Key， set the state to enter the pre-heating， when the LCD on the “ON” signs indicate that “PREHEAT” Flashing signs will appear， At the same time， one clock time （ pre-heating start working time） is flashing too，but “： ” no flashing （see Note 2） 。 Again“ ”Key， Closed set （ see Note 1） 。 www.ethink-spa.com...
- Page 5 After the time set to open access to the next step。 4） 、Then click “ ” To enter a state of temperature setting。LCD on at this time there will be "SET" signs，according to “ ” Key to change the set temperature。Temperature range： www.ethink-spa.com...
- Page 6 In the waiting state by “ ” Key to enter the working state，State in the working state by “ ” Can enter the waiting state，LCD display can be seen whether the state boot? Figure 8：waiting state Figure 9：working state www.ethink-spa.com...
- Page 7 All surf PUMP will auto off when working 1 hour later。 12、long circulation cleaning: ” Key to on / off a long circulation cleaning。After a long work cycle At any time by“ patterns and cleaning cycle time is the same：surf pump & blower will be activated within 30 minutes www.ethink-spa.com...
- Page 8 When opening Group A or B in any one of the load，and load a group of self-closing，such as： open PUMP1，heater and circulating pump shut down automatically；the same token，open the heating，The surfing pumps and blower shut down automatically。 2), Setting of power control mode： www.ethink-spa.com...
- Page 9 Heater： AC220V/6KW. 。 Surf Water pump： AC220V/3 HP （AC110V/3KW） （AC110V/2HP） Circulation water pump： AC220V/1HP。 Blower： AC220V/1HP Hot tub under water lamp： AC12V/10W。 Ozone： AC12V/15W DC12V/10W Radio： 1) Frequency Range： FM： 87.0~108.0MHz 2) Maximum Output Power： 20W 3) Speaker：8Ωdamp proof speaker www.ethink-spa.com...
