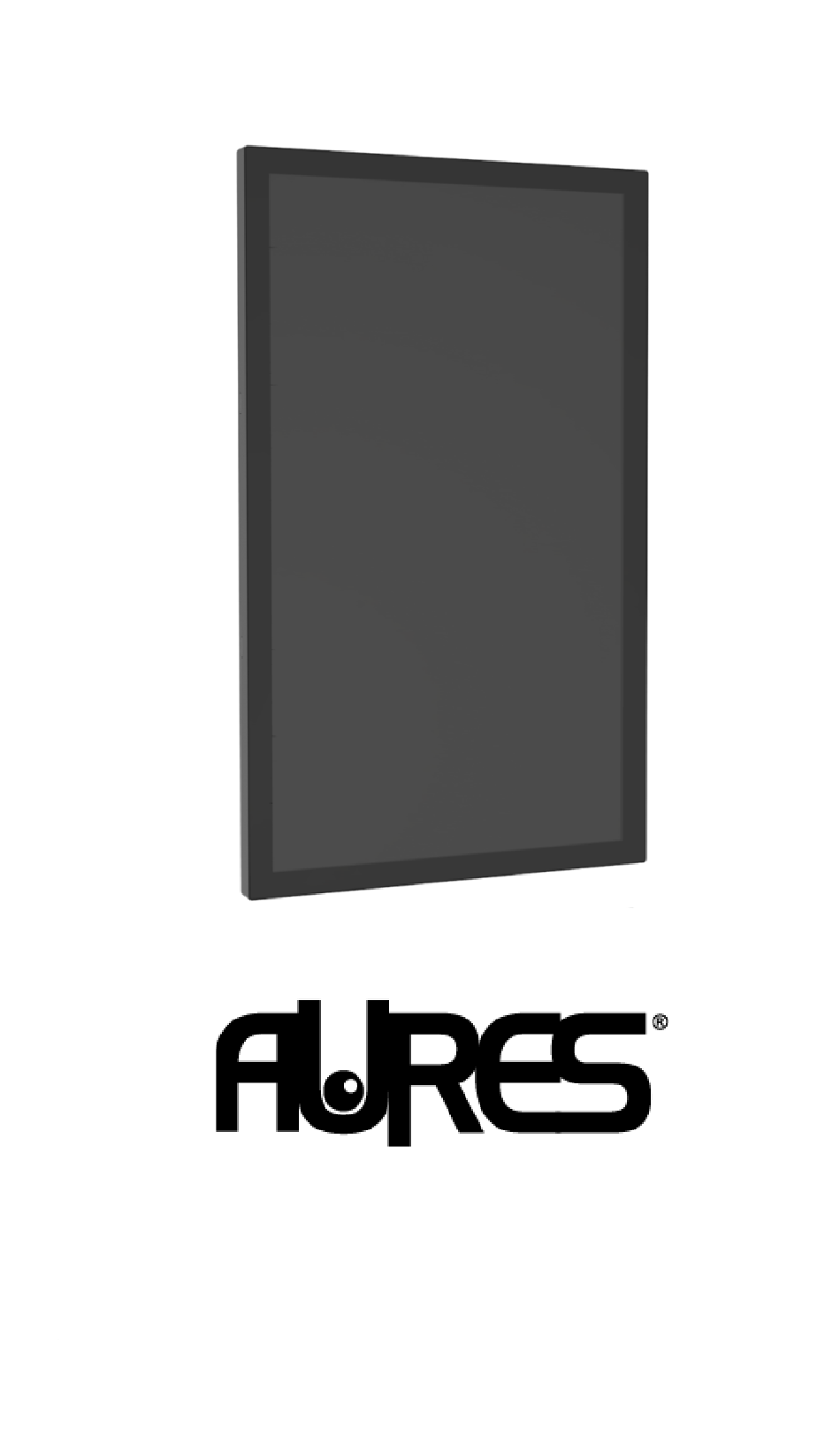

- Page 1 USER’S MANUAL YUNO-K270 I ART-04027 Rev.C...
- Page 2 FCC Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 Safety IMPORTANT SAFETY INSTRUCTIONS To disconnect the machine from the electrical Power Supply, turn off the power switch and remove the power cable plug from the wall socket. The wall socket must be easily accessible and in close proximity to the machine. Read these instructions carefully.
-
Page 4: Table Of Contents
Product Overview ....................3 Specification ......................4 How to start the module ..................6 How to Install YUNO board to YUNO-K270 ............7 How to Install or Remove the Mylar ..............7 Attaching the Side Bracket ................... 8 Side Mounting Instructions ................... 9 Product Dimensions ................... -
Page 5: Package Overview
Package Overview DC Power Supply YUNO-K270-BLACK Power Cord Side Bracket Set x 2 User Manual RJ-50 to DB-9M Cable x 2 Bracket Screws ( M4 x L8) x 8 pcs Mylar x 8 Thermal Pad Foam Tape... -
Page 6: Product Overview
Product Overview YUNO-K270 is a 27-inch panel PC designed for point of sale and kiosk applications. This product is of a modular design enabling easy maintenance. • Front View • Back View... -
Page 7: Specification
Specification Model Name YUNO-K270 Intel® Core™ i3-5010U Processor Intel® Bay Trial-M SoC (3M Cache, 2.10 GHz) CPU support Processor J1900 Intel® Core™ i5-5350U (2M Cache, up to 2.16 GHz) Processor (3M Cache, 2.90 GHz) System Memory Phoenix uEFI BIOS BIOS LCD Panel 27.1"... - Page 8 Power Power Adapter External 19V / 4.74A 90Watt Adapter Communication 2.4/5 GHz, 802.11ac, a/b/g, n Wireless LAN Wi-Fi Bluetooth Module (YUNO-WBM option) Certifications FCC Class A / CE / LVD / UL Environment Operating 0-35°C (32°F-95°F) Temperature Storage -20°C-60°C (-4°F-140°F) Temperature Humidity 20%-80% non-condensing...
-
Page 9: How To Start The Module
How to start the module Remove the cover of module. Connect the DC adapter to the power connector on the module. Press the “Power Switch” button to ON/OFF the module. Add the cover to module. Power Switch... -
Page 10: How To Install Yuno Board To Yuno-K270
How to Install YUNO board to YUNO-K270 The user must wait 10 minutes after turning off the device before changing the card. Take the thermal pad from accessory box, Turn and tighten the thumb screw. and remove one side of the protection. -
Page 11: Attaching The Side Bracket
Attaching the Side Brackets Tighten Bracket A to B using the screws supplied. Bracket A Bracket A Bracket B Bracket B Bracket B Bracket B Bracket A Bracket A Depending on your mounting scheme, alternately, you may use the side brackets to mount your displays onto your wall or device. -
Page 12: Side Mounting Instructions
Mounting Instructions The monitor can be mounted on a wooden or concrete wall with 8 screws and two pairs of opposing brackets. 186.0 220.0... -
Page 13: Product Dimensions
Product Dimensions Appendix A: Driver Installation To download the most recent drivers and utilities, and obtain advice regarding the installation of your equipment, please visit the AURES Technical Support Website www.aures-support.fr (French) www.aures- support.fr/UK (English) www.aures- support.fr/GE (German)
