AS80MA11
Magnetic Detector
Installation Instructions
General Introduction

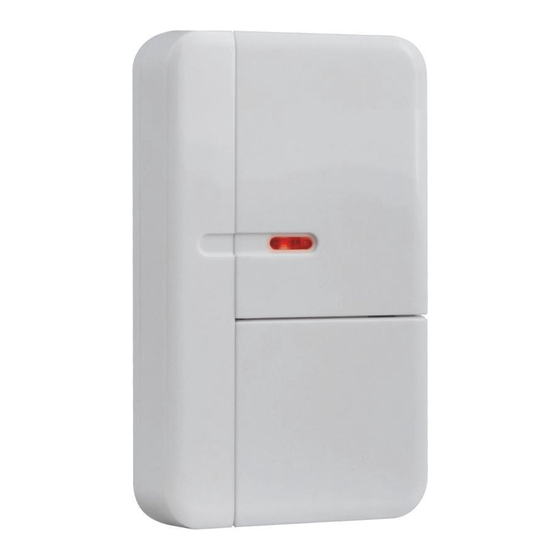

The Magnetic Detector is used in security or home automation applications to detect
opening or closing of doors/windows. It consists of two parts; a Detector and a
Magnet. Opening the protected door/window will remove the magnetic field, sending
an alarm signal to the gateway.
Product Overview
Detector
Magnet
LED
Tamper
switch
Battery
Binding with Homesys
1. Models with battery included: The battery is isolated by a mylar film to deactivate
the detector during shipment. Do not remove the mylar film yet.
Models without battery included: Do not insert the battery yet.
2. Log into th eELRO Smart Home Alarm account from a web browser.
3. Select "System", then "Add a Device".
Screw
hole
Battery Mylar
(for models with
battery included)
1
4. Select "Magnetic Detector".
5. The following screen will appear. This means the gateway is entering binding
mode.
6. Models with battery included: Pull out the mylar film, the LED should turn ON.
