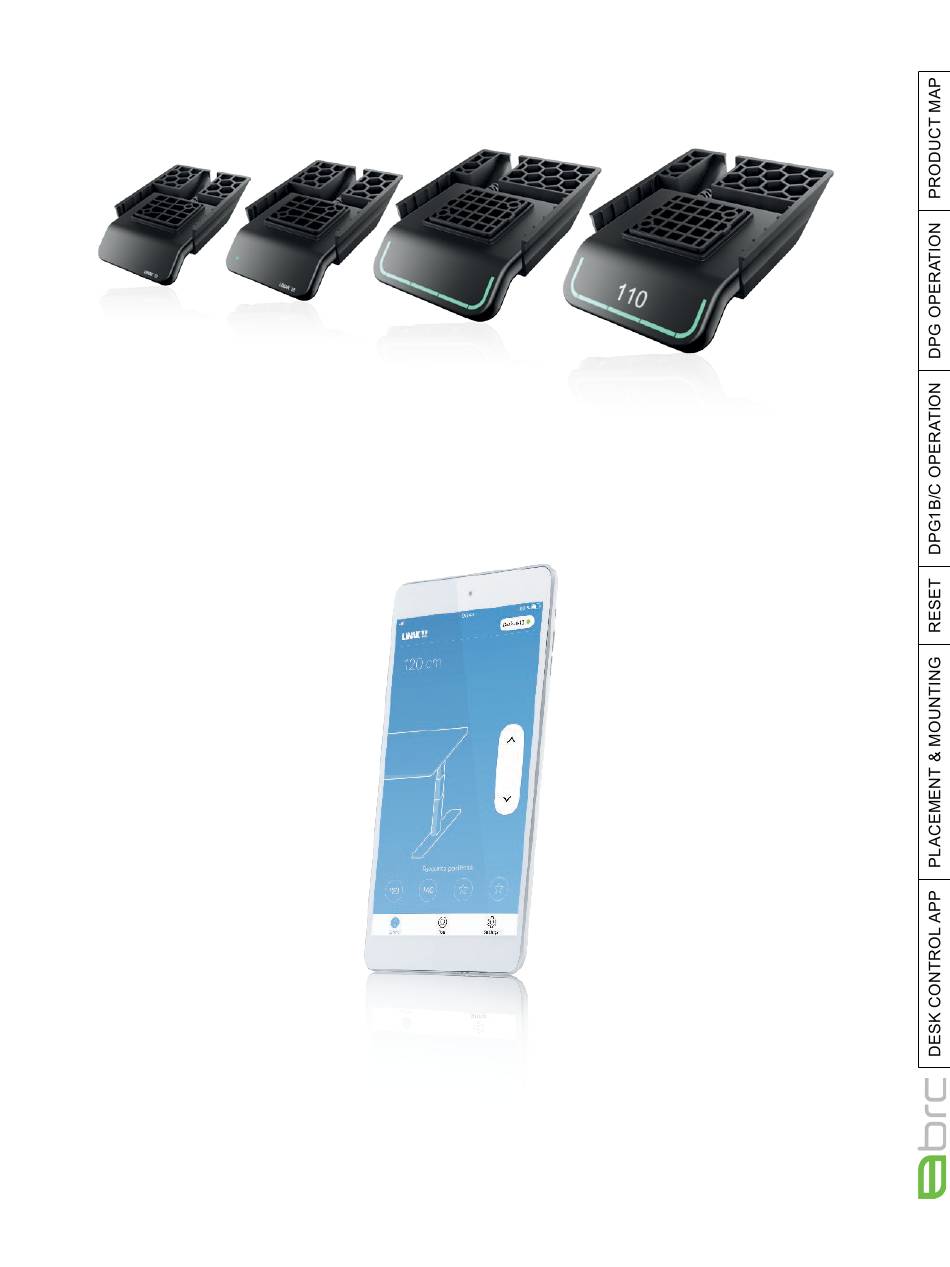

Products
DPG1K
• Up/down drive
Desk Control™ Apps
• Up and down drive (if supported by the
connected product)
• Displays actual height
• Displays error codes and links to LINAK
website support
• Up to 4 memory positions
BRC DPG CONTROLLER USER GUIDE
DPG1M
• Up/down drive
• 2 memory positions
• LED diode reminder
• Bluetooth
®
Page 12 of 56
DPG1B
• Up/down drive
• 2 memory positions
• Light strip reminder
• Bluetooth
®
• Reminder notifications when to stand up
• Possibility to enable automatic drive on memory
positions (if supported by the connected product)
• Works via Bluetooth
®
• Available in English, German, French, Spanish,
Italian, Korean, Chinese and Japanese
DPG1C
• Up/down drive
• 4 memory positions
• Light strip reminder
• Bluetooth
®
• Display
Low Energy Technology
Advertisement
Table of Contents
Related Manuals for BRC DPG1K
Summary of Contents for BRC DPG1K
- Page 1 Low Energy Technology ® • Displays error codes and links to LINAK • Available in English, German, French, Spanish, website support Italian, Korean, Chinese and Japanese • Up to 4 memory positions Page 12 of 56 BRC DPG CONTROLLER USER GUIDE...
- Page 2 DPG down to make the desk drive down. Release the DPG when you have reached your requested position. Figure 1: Tilt and hold the DPG1K to make the desk drive up Figure 2: Press and hold the DPG1K to make the desk drive down...
- Page 3 DPG down to make the desk drive down. Release the DPG, when you have reached your requested position. Figure 1: Tilt and hold the DPG to make the desk drive up Figure 2: Press and hold the DPG to make the desk drive down Page 19 of 56 BRC DPG CONTROLLER USER GUIDE...
-
Page 4: Memory Positions
3: Press the “star”-button and toggle to the “star” with “3” next to it. Now use the same storing procedure as described above: Press the star for 2 seconds and the memory position is saved. Page 20 of 56 BRC DPG CONTROLLER USER GUIDE... - Page 5 DPG to let the desk adjust automatically to the first position in the direction of the double tap. Simply tab the DPG again to stop the driving of the desk. Figure 3: Double tap to adjust the desk to a memory position automatically Page 21 of 56 BRC DPG CONTROLLER USER GUIDE...
-
Page 6: Connecting Bluetooth
The display on the DPG1C will inform about the Bluetooth-ID of the desk, which is “DESK” followed by a 4-digit number – look for this ID in the list of “Desks nearby”. Page 22 of 56 BRC DPG CONTROLLER USER GUIDE... - Page 7 It is possible to reset the reminder to default values by pressing the “bell” symbol for 8 seconds. The light strip will flash red to indicate when the action is completed. Page 23 of 56 BRC DPG CONTROLLER USER GUIDE...
- Page 8 Figure 4: Pulsating green light strip indicates that everything is okay Figure 5: Pulsating orange light strip indicates that the user needs to change position Page 24 of 56 BRC DPG CONTROLLER USER GUIDE...
- Page 9 The DPG1C shows error codes in case of errors in the system. The most common errors loop between the error code (EXX) and the cause, check the code below: Error codes in CBD6S Cause E53-E64 COLLISION E41-E52 OVERLOAD INITIALISATION Page 25 of 56 BRC DPG CONTROLLER USER GUIDE...
- Page 10 Placement of the DPG1K: The drawings below are side views examples on how to position the DPG1K according to the edge of the tabletop. Drawing No.: DRW0001 Drawing No.: DRW0001 Placement of the DPG1M: The drawings below are side views examples on how to position the DPG1M according to the edge of the tabletop.
- Page 11 The drawings below are side views examples on how to position the DPG1C proportionally to the edge of the tabletop. Because of the light strip, we recommend placing the DPG1C in a visible position. Page 27 of 56 BRC DPG CONTROLLER USER GUIDE...
- Page 12 This might lead to incorrect functionality of the DPG. DPG without cover DPG with cover Please observe that a DPG version with cover requires a 13 mm longer screw Page 28 of 56 BRC DPG CONTROLLER USER GUIDE...
- Page 13 Find more information about how to use the DPG in this short film: (link) Above-mentioned mounting guidelines are directly accessible via the label on the cover of the DPG. Use either the QR code or type in the web address. Page 29 of 56 BRC DPG CONTROLLER USER GUIDE...
- Page 14 Preparing the tabletop for both DPG sizes (DPG1K/M and DPG1B/C) The DPG series consists of 4 different desk panels in 2 different sizes. The DPG1K and the DPG1M are the same size and the DPG1B and the DPG1C are the same size.
- Page 15 The front hole of all 4 DPG variants are shared; Here indicated by the green line. As the DPG1K and the DPG1M are the same size, they share the hole indicated by the red line. As the DPG1B and the DPG1C are the same size, they share the hole indicated by the black line.
- Page 16 The app comes in 8 languages and is available for 2 different platforms: iOS for iPhones and iPads and Android for Android smartphones and tablets. Page 34 of 56 BRC DPG CONTROLLER USER GUIDE...
-
Page 17: Downloading Apps
Use your Android device to log into Google Play Store Step 2: Type “Desk Control” in the search column Step 3: Select the “Desk Control” app Step 4: Click install to download the app to your device P age 35 of 56 BRC DPG CONTROLLER USER GUIDE... - Page 18 Pressing “connect to your desk” on the below screen will lead to the “Pairing Bluetooth ” guide. ® Page 36 of 56 BRC DPG CONTROLLER USER GUIDE...
-
Page 19: Pairing Bluetooth
The following question pops up on the screen, which the user have to answer. If the user only uses one desk with this app; Press yes If the user uses this app for multiple desk; Press no Page 37 of 56 BRC DPG CONTROLLER USER GUIDE... -
Page 20: Bluetooth Device
Leads back to “Desks nearby” and lets the user connect to another product in pairing mode Height Current height of the desk. In case an error occurs, the error code will be displayed instead of the height. Page 38 of 56 BRC DPG CONTROLLER USER GUIDE... -
Page 21: Automatic Drive
Automatic drive is only possible to enable when the app is connected to a “full version” product. The DPG will reflect the favourite positions saved through the app, so you can tilt between the positions via the desk panel instead of using the app. Page 39 of 56 BRC DPG CONTROLLER USER GUIDE... - Page 22 Please note: If an interval for sitting/standing has already been chosen via the DPG, these settings will be shown when opening the app. Page 40 of 56 BRC DPG CONTROLLER USER GUIDE...
- Page 23 ® Set desk height Set the current height of the desk. An illustration guides the user on how to measure. Choose in which units the height is shown: cm or inches. Page 41 of 56 BRC DPG CONTROLLER USER GUIDE...
- Page 24 Link to the “Made to Move” area; Get guidance on how to use a sit/stand desk correctly. Product information Link to LINAK website with information about this app. Support Link to LINAK website with troubleshooting videos on the DPG products. Page 42 of 56 BRC DPG CONTROLLER USER GUIDE...
- Page 25 DPG and app are put into standing position until it is moved down again. When reaching sitting position (under 95 cm), the notification is being reset and a new notification will appear after 50 min. Notifications ONLY appears, when user is sitting – not in standing position. Page 43 of 56 BRC DPG CONTROLLER USER GUIDE...
- Page 26 If you are pregnant, have varicose veins or have a health condition that may prevent you from standing for 5-15 minutes at a time every hour, you should contact your doctor to make sure that this will not be detrimental to your health. Page 44 of 56 BRC DPG CONTROLLER USER GUIDE...
