EXCEL 10 FTT/LPT 209541 B TERMINATION MODULE
Fig. 3 shows the physical connection of the module for a
single termination network. Fig. 4 shows the modules
attached to a typical FTT/LPT network for a double
termination. Fig. 5 shows the physical connection of the
modules for a double termination network. Double
termination is only applicable when a network is wired in a
daisy-chain topology and the total wire length is greater
than 1640 ft (500m). Refer to the E-Bus Wiring Guidelines ,
form 74-2865, for complete rules on network topology and
termination module locations.
Fig. 3. Physical connection of module for a single
termination network .
1/2
(13)
1. STRIP 1/2 IN. (13 MM) FROM WIRES
TO BE ATTACHED AT ONE TERMINAL.
NOTE: The termination module is outside of the scope of the EMC directive and therefore does not require CE marking. This is
because the termination module is an RC filter (with only passive components.
Home and Building Control
Honeywell Inc.
Honeywell Plaza
P.O. Box 524
Minneapolis, MN 55408-0524
95-7554 J.D. 3-97
E-BUS
BROWN
YELLOW
ORANGE
M12200
2. TWIST WIRES TOGETHER
WITH PLIERS (A MINIMUM
OF THREE TURNS).
Fig. 6. Attaching two wires at controller or wall module terminals.
Home and Building Control
Honeywell Limited-Honeywell Limitee Honeywell AG
155 Gordon Baker Road
North York, Ontario
M2H 3N7

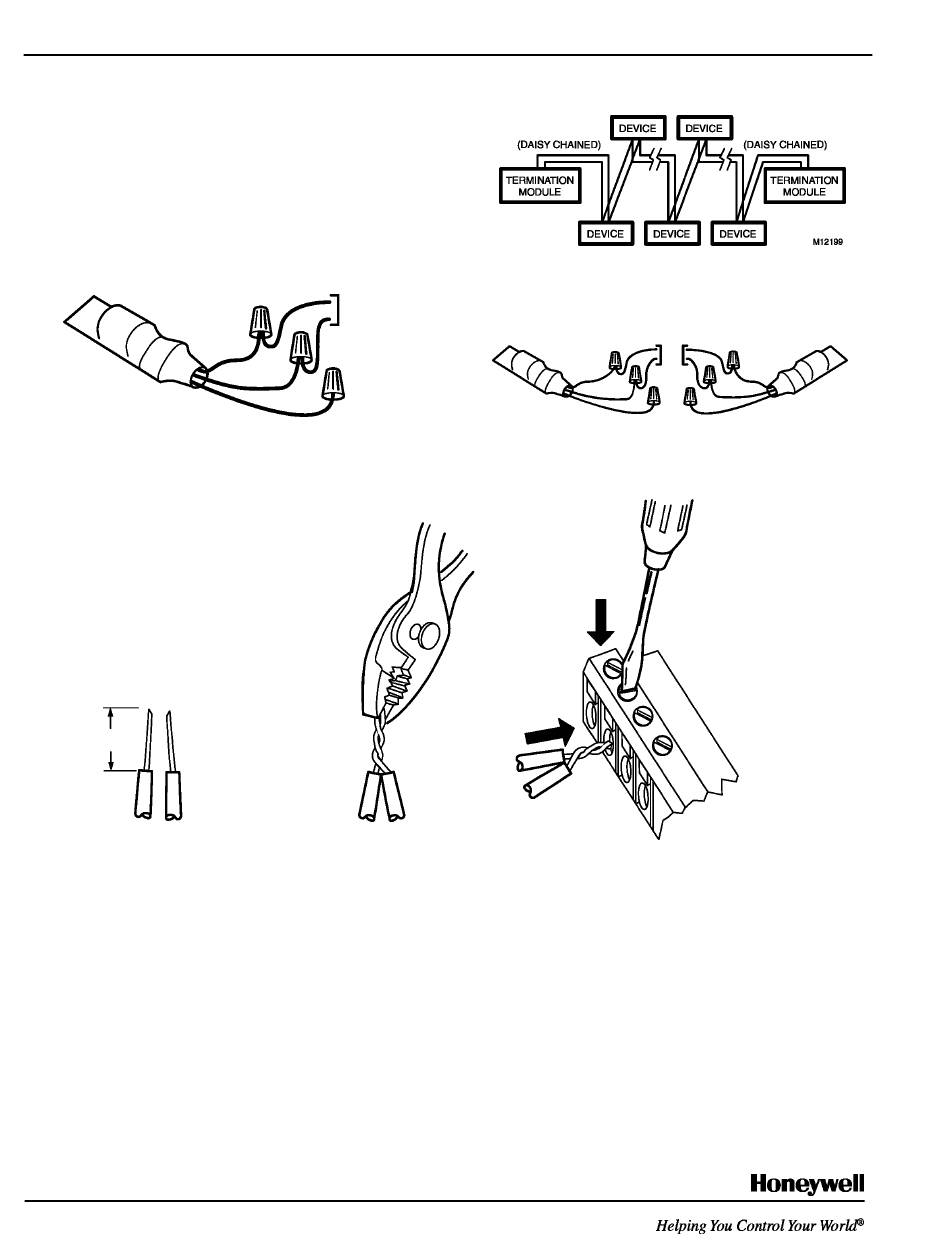

Fig. 4. FTT/LPT termination module wiring for double
termination network topology .
BROWN
YELLOW
Fig. 5. Physical connection of modules for a double
3. CUT TWISTED END OF WIRES TO 3/16 IN. (5 MM)
BEFORE INSERTING INTO TERMINAL AND TIGHTENING
SCREW. THEN PULL ON EACH WIRE IN ALL TERMINALS
TO CHECK FOR GOOD MECHANICAL CONNECTION.
Home and Building Control Products
Boblinger Straβ e 17
D-71101 Schomaich
Phone (49-7031) 637-01
Fax (49-07031) 637-493
Printed in Mexico
E-BUS
E-BUS
BROWN
ORANGE
ORANGE
YELLOW
termination network.
M8945
M12201
