Summary of Contents for Lenoxx BTW80

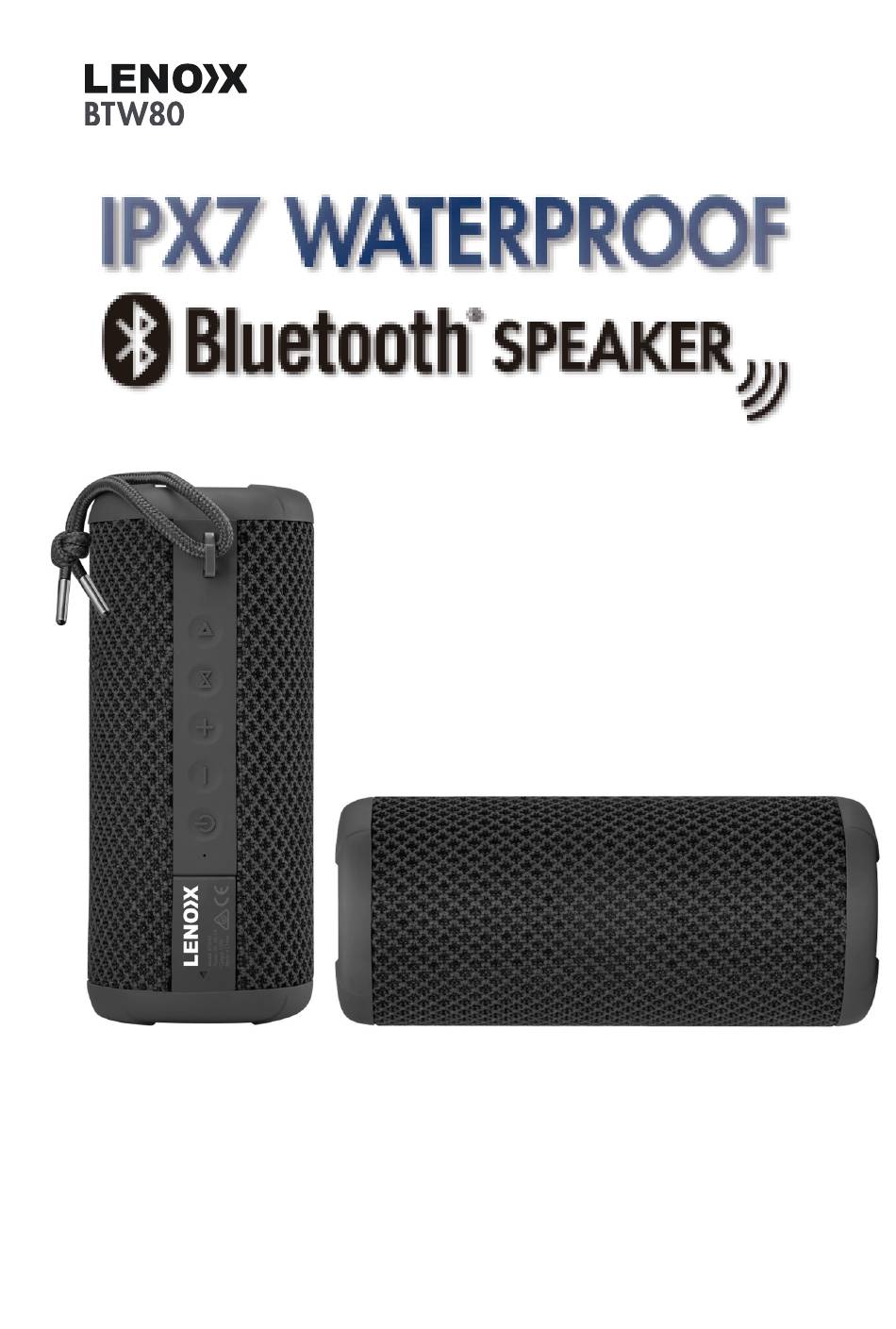

- Page 1 Model no: BTW80 / BTW80BL Batch no: PR3710 PLEASE REATAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. ...
- Page 2 Product information: Bluetooth version: 4.2 Frequency response: 20 – 20,000 Hz Power output: 2 x 5w Driver size: 1.75” x 2 Connections: 3.5mm aux in/Bluetooth Power supply: micro USB, 5 V DC Battery: Li‐ion, 3.7 V, 2500 mAh Charging time: 5 hours Playback time: Up to 14 hours* Working distance: Up to 10 meters Waterproof level: IPX7. IPX7 is one of the strongest waterproof ratings. The speaker can go 1 meter underwater for up to 30 minutes without any interference in the function of the speaker. Hands free function: Integrated microphone Dimensions: 190 (w) x 80 (h) x 80 (d) mm * Playback time of the speaker depends on the battery charge level, volume level, audio track and ambient temperature. ...
- Page 3 Repair works, modifications or cleaning which were performed by a service not authorized by the manufacturer. Accidents or events or any other reasons which do not depend on the manufacturer, which includes lightning, fire, magnetic field and inappropriate ventilation. Package content: 1. BTW80 Bluetooth speaker 2. 60cm Black Micro USB charging lead 3. 60cm Black Aux in lead 4. User manual 5. Warranty card ...
- Page 4 Press and hold this button for 3 seconds to turn it on 7. Last Track/V‐: Press this button repeatedly to decrease the volume. Press and hold this button for 3 seconds to move to the previous music track. 8. V+/Next Track: Press this button repeatedly to increase the volume. Press and hold this button for 3 seconds to move to the next music track. 9. TWS（True wireless）pairing button: Use this button for pairing two BTW80 speakers for stereo playback. 10. Play/Pause button. Press once to pause playback, press again to resume playback. Charging: Before using the speaker, it needs to be charged. Charge it using the micro USB charging lead included in the package. Plug the small micro USB socket into the charging port on the side of the speaker, and the other end of the lead (the standard USB2.0 plug) into any standard USB charger. The LED light indicator will be red when charging. When it is fully charged, the LED indicator will be off. The speaker can be charged while playing music. ...
- Page 5 4. Now the speakers will connect together automatically each time after you turn them off and on. 5. Turn on the Bluetooth function on your device, select BTW80 from the list and pair the speaker. 6. After successful connection one of the speakers will play the left channel while the other speaker will play the right channel of stereo sound. ...
