In Win A1 User Manual

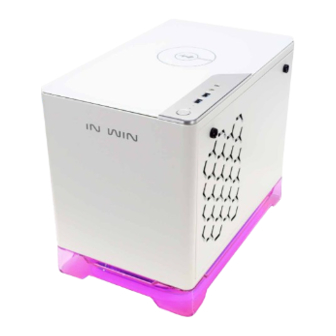

Mini-itx tower, wireless charger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for In Win A1

Summary of Contents for In Win A1

  • Page 2 The square structure provides hassle-free installation, and the capacity to house powerful hardware despite its compact size. An In Win 600W, 80 PLUS Bronze PSU is prebuilt within the A1 with cables already managed. A wireless charger makes life easier and charges your mobile device anytime! The A1 not only presents the elegant aesthetics of simplicity, but also shows the spirit of In Win’...

  • Page 3: Specifications

    344 x 295 x 414 mm (13.5” x 11.6” x 16.2” ) (H x W x D) Net Weight 6 kg/ 13.2lbs Gross Weight 6.9 kg/ 15.3lbs ■ In Win products comply with RoHS regulation. ■ Specifications may vary based on different regions.
  • Page 4 140 x 150 x 86 mm Dimensions (L x W x D) Warranty 3 Years Connectors Motherboard 24-pin CPU 4+4-pin PCIE 6+2 pin Peripherals SATA Floppy Power Micro USB ■ In Win products comply with RoHS regulations ■ Specifications may vary based on different regions...

  • Page 5: Package Content

    Package Content A1 Chassis QR Code Card Accessories Bag...

  • Page 6: Accessories Bag

    Accessories Bag Hexagon Head Screws X 8 2.5” HDD Screws X 10 Graphic Card Holder X 1 Cable Ties X 5 Anti-Slip Strips X 4 LED 4-Pin Header X 1 LED-SATA Connector X 1 If your motherboard doesn't have an RGB header, please use the provided LED-SATA connector and LED 4-Pin header to set default LEDs.
  • Page 7 Case Structure SECC Front/ Side Panel Audio Ports (Earphone and Microphone) USB 3.0 Ports HDD/Power LED Indicator Power Button Logo Tempered Glass...
  • Page 8 2.5 Drive Bay Side Fan Mounting Area Rear Fan/ Radiator Mounting Area Bottom Fan Mounting Area Motherboard Mounting Area CPU Cooler Installation Cut-Out Hole PCI-E Expansion Slot Extra PCI-E Supporting Mounting Hole Power Supply Area Fan Dust Filter Wireless Mobile Device Charging Area...

  • Page 9: Motherboard Installation

    Installation Guide Please follow the related chapters to asseble Opening the Chassis For the side panel, please pull the two tool-less tabs and lift up. Motherboard Installation Parts Required: Hexagon Head Screws Expansion Card Installation Parts Required: Hexagon Head Screws, Graphics Card Holder...
  • Page 10 I/O Wires Installation Switch/LED Connector Blue(P_LED) 1 2 Red (HDD) White(P_LED) 3 4 White (HDD) Brown(P_SW) 5 6 NC White(P_SW) 7 8 NC Key 9 10 NC...
  • Page 11 RGB-Strip Installation If your motherboard support the RGB luminous effect, please follow the direction of sign and insert RGB-strip into the 4-pin RGB-strip header directly on the motherboard.
  • Page 12 If your motherboard doesn't have an RGB header, please connect the provided dual 4-Pin LED header to the RGB-strip and the LED-SATA connector. Then connect to the PSU to set the default LEDs. LED-SATA connector 4-Pin LED header RGB-strip PSU SATA LED-SATA connector 2.5”...
  • Page 13 Fan/ Liquid Cooling Radiator Installation Anti-Slip Strips Installation Parts Require: Anti-Slip Strips Remove the tap covers, then place them under each corner...

  • Page 14: Completing Installation

    Completing Installation Parts Required: Cable Ties...

  • Page 15: Warranty

    CD-ROM, motherboard, CPU, etc.) ■ Warranty * For more detailed warranty information, please visit the In Win retail website at www.in-win.com. * The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make final modifications.
  • Page 16 In Win IW-WT01 Wireless Charger User Manual...
  • Page 17 ■ Note to use 1. To avoid any computer and computer-related component damage, please use IW-WT01 In Win approved products. 2. To indicate that the mobile device battery is at a full charge, the platform will continuously beep. To cease the beeping sounds, simply remove the device.
  • Page 18 3. Please check if the receiver is compatible with WPC Qi. • Other Qi integrated smart phones/devices The full compatibility list can be found in the IW-WT01 user manual. • Other Qi add-ons such as Qi receiver/backcover/case Copyright © 2018 In Win Development Inc. All Rights Reserved.
  • Page 19 Copyright © 2018 In Win Development Inc. All Rights Reserved.
