9000 SERIES AMPLIFIERS
This manual is intended for those who use the 9000 Series Amplifier in the Matrix mode.
For use in the Mixer mode, please read the separate instruction manual for the Mixer mode.
Thank you for purchasing TOA's 9000 series Amplifier.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
MATRIX MODE
INSTALLATION AND
OPERATING INSTRUCTIONS
M-9000
A-9060DH
A-9120DH
A-9120DL
A-9060S
A-9120S
A-9240SH
(Version 3.10)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A-9060DH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toa A-9060DH

Summary of Contents for Toa A-9060DH

  • Page 1 For use in the Mixer mode, please read the separate instruction manual for the Mixer mode. Thank you for purchasing TOA's 9000 series Amplifier. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. MATRIX MODE (Version 3.10) INSTALLATION AND OPERATING INSTRUCTIONS M-9000 A-9060DH A-9120DH A-9120DL A-9060S A-9120S A-9240SH...

  • Page 2: Table Of Contents

    3. GENERAL DESCRIPTION 4. FEATURES ... 10 5. INSTALLATION PRECAUTIONS 6. HANDLING PRECAUTIONS 7. NOMENCLATURE AND FUNCTIONS 7.1. M-9000 (Matrix Mixer Amplifier), A-9060DH/9120DH/9120DL/9060S/9120S/9240SH (Matrix Mixer Power Amplifiers) [Front] ... 12 [VFD on-screen indications] [Changing the indicated channels on the LEVEL output meter]...
  • Page 3 9.2. Zone Paging 9.2.1. Paging port mode 9.2.2. Ring signal mode 9.3. Releasing Key Lock ... 32 10. PAGING WHILE POWER IS OFF 11. SYSTEM DESIGN-TO-OPERATION FLOW 12. SELECTING OPERATION METHOD 13. SETTING 13.1. Setting Menu Flow ... 36 13.2. Setting Keys and Knobs 13.3.
  • Page 4 15. MODULE INSTALLATION 15.1. Module Combination 15.2. Channel Numbers and Terminal Numbers 15.3. Module Installation ... 88 15.4. Module Installation Examples 16. CONNECTIONS 16.1. Control I/O Terminal Connections 16.1.1. Remote volumes 1, 2 16.1.2. Control inputs 1 – 4 16.1.3. Control outputs 1 – 4 16.1.4.
  • Page 5 24. SIGNAL FLOW DIAGRAM 25. LEVEL DIAGRAM ... 119 26. SPECIFICATIONS 26.1. M-9000 ... 120 26.2. A-9060DH, A-9120DH 26.3. A-9120DL ... 124 26.4. A-9060S, A-9120S ... 126 26.5. A-9240SH ... 128 26.6. Optional Modules 26.6.1. D-001T ... 130 26.6.2. T-001T ...

  • Page 6: Important Safety Instructions

    1. IMPORTANT SAFETY INSTRUCTIONS • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. •...

  • Page 7: Safety Precautions

    2. SAFETY PRECAUTIONS • Before installation or use, be sure to carefully read all the instructions in this section for correct and safe operation. • Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or cautions regarding safety.
  • Page 8 CAUTION When Installing the Unit • Never plug in nor remove the power supply plug with wet hands, as doing so may cause electric shock. • When unplugging the power supply cord, be sure to grasp the power supply plug; never pull on the cord itself.

  • Page 9: General Description

    The M-9000 is a Matrix Mixer Amplifier featuring the above matrix mixer function. Besides the M-9000's matrix mixer function, the following A-9000 Series Amplifiers come with power amplifiers, out of which A-9060DH, A-9120DH, and A-9120DL can perform 2-channel or stereo broadcast in stand-alone operation.

  • Page 10: Features

    4. FEATURES • Either matrix or mixer mode can be selected depending on application for optimum operation. • Matrix mode is suitable for BGM broadcasts or paging to zoned areas. • Mixer mode is suitable for speech or sound reinforcement in such applications as hotel meeting rooms, churches or conference rooms.

  • Page 11: Installation Precautions

    5. INSTALLATION PRECAUTIONS • Keep the 9000 Series Amplifiers except the M-9000 over 10 cm away from objects that may obstruct air flow to prevent the unit's internal temperature rise. Over 10 cm • When mounting the unit on an equipment rack ·...

  • Page 12: Nomenclature And Functions

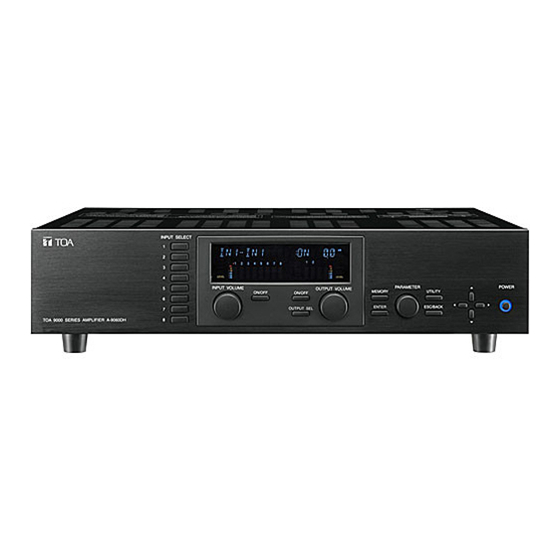

    7. NOMENCLATURE AND FUNCTIONS 7.1. M-9000 (Matrix Mixer Amplifier), A-9060DH/9120DH/9120DL/9060S/9120S/9240SH (Matrix Mixer Power Amplifiers) [Front] INPUT SELECT TOA 9000 SERIES PRE-AMPLIFIER M-9000 1. Power switch and Power indicator Press this switch to turn on the power. The power indicator lights. To turn off the power, hold down the switch for at least 0.5 second.

  • Page 13: [Vfd On-Screen Indications]

    [VFD on-screen indications] FAULT FADER –10 –20 –30 LEVEL –40 15. 14-Segment,18-digit alphanumeric display Displays the corresponding setting screen or data when each function key is pressed. Parameters being edited flash. 16. Keylock indicator Lights when the key lock function is enabled, and flashes while the key lock function is being edited.
  • Page 14 29. Output channel ON/OFF indicator (channel number) Lights when the corresponding output is on (i.e. in operation mode), and flashes when off. The number of channels of which indicators light depends on the modules used. 30. Output meter Indicates the signal level or output fader position of each output channel.

  • Page 15: [Changing The Indicated Channels On The Level Output Meter]

    [Changing the indicated channels on the LEVEL output meter] The output meter indicates the signal levels of only a set of 4 channels: CH 1 – 4 (factory-preset) or CH 5 – 8. Pressing the Up shift key alternately switches the level indication between CH 1 – 4 and CH 5 – 8. The LEVEL indicator of the output meter status indicator flashes while the CH 5 –...

  • Page 16: [Rear]

    • M-9000 120V 60Hz CTRL REMT VOL1 REMT VOL2 MODE RS-232C MATRIX MIXER M-9000 CU 37 38 • A-9060DH, A-9120DH, A-9120DL WARNING 120V 60Hz CTRL 250 W DO NOT CONNECT NEGATIVE(–) TERMINALS REMT TOGETHER. VOL1 REMT VOL2 CLASS 2 WIRING –...

  • Page 17: Power Cord (2 M)

    Signal and GND terminals, respectively. (Leave the unit's Cold terminal free.) 0 dB, 600 Ω, balanced type [A-9060DH/9120DH/9120DL] There are 2 preamplifier output terminals and 2 power amplifier input terminals. Connecting a plug to the power amplifier input terminal internally disconnects the preamplifier section from the power amplifier section.

  • Page 18: Optional Modules

    7.2. Optional Modules 7.2.1. D-001T (2-Channel Input Module) The D-001T module is designed for use with the 9000 Series amplifiers. Up to 4 modules (8 channels in total) can be inserted into the amplifier. The module can handle signals ranging from microphone level (–60 dB) to line level (–10 dB) in 9 input sensitivity levels.

  • Page 19: Zp-001T (Zone Paging Module)

    7.2.3. ZP-001T (Zone Paging Module) The ZP-001T module is designed for use with the 9000 Series amplifiers and functions as an interface to connect the 9000 Series amplifiers to an analog PABX, allowing zone paging to be initiated from the PABX. Only one ZP-001T module can be used per 9000 Series amplifier.

  • Page 20: C-001T (Control I/O Expansion Module)

    7.2.4. C-001T (Control I/O Expansion Module) The C-001T module is designed for use with the 9000 Series amplifiers and can provide up to 8 channels each of input and output expansion. Since the main unit has 4 fixed inputs and outputs each, the control input and output can be expanded to up to 12 channels each when the C-001T module is used.

  • Page 21: Optional Accessories

    7.3. Optional Accessories 7.3.1. AN-9001 (Ceiling Mount Microphone) The AN-9001 is designed to be mounted in a wall or ceiling with the use of a 1-gang electrical box. It is used in conjunction with the AN-001T Ambient Noise Sensor Input module in the 9000 Series system. [Front] [Bottom] 1.

  • Page 22: Zm-9001 (Zone Manager)

    7.3.2. ZM-9001 (Zone Manager) The ZM-9001 adds 6 control inputs and can be mounted in a 1-gang electrical box. [Front] [Bottom] 2. Control buttons [1 – 6] Activate the function assigned to them when pressed. 3. Control output terminal [E, OUT] Connect this terminal to the 9000 Series amplifier's REMT VOL terminal.

  • Page 23: Zm-9002 (Zone Manager)

    7.3.3. ZM-9002 (Zone Manager) The ZM-9002 adds 4 control inputs and 1 volume control, and can be mounted in a 1-gang electrical box. [Front] [Bottom] 4. Control buttons [1 – 4] Activate the function assigned to them when pressed. 5. Volume control Adjusts the volume on the assigned input or output channel.

  • Page 24: Ss-9001 (Speaker Selector)

    7.3.4. SS-9001 (Speaker Selector) The SS-9001 selectively distributes each of 2 inputs to the same 4 output zones. It is used in conjunction with the ZP-001T Zone Paging module. [Left side] 7. Speaker input terminals [IN 1, IN 2] 2-pin removable terminal blocks. Connect the speaker output (70 V high impedance line, up to 240 W) from the power amplifier to each terminal.

  • Page 25: Description Of Matrix Mode

    Input signals are basically not mixed but distributed in the matrix mode. Three operation methods are available in this mode; Normal matrix operation, 1-channel output operation (A- 9060S/9120S/9240SH only), and 2-channel output operation (BGM/Page operation) (A-9060DH/9120DH only). (Refer to p. 35 "SELECTING OPERATION 8.1.1.

  • Page 26: 1-Channel Output Operation

    OUT 4 8.1.3. 2-channel output operation (BGM/Paging operation) This operation method can be selected when the A-9060DH or A-9120DH Amplifier with ZP-001T Zone Paging module but without T-001T Audio Output Expansion module installed is used. BGM broadcasts* delivered at the amplifier's output channel 1 and priority broadcasts* broadcasts are based on the priority levels set for input channels.

  • Page 27: Glossary

    8.2. Glossary • ANC (Ambient Noise Control) function (AN-001T only) The ANC function automatically adjusts the amplifier's output volume in response to the change in ambient noise level. The output volume changes as the ambient noise level goes above or below the set reference level. •...

  • Page 28: Operation

    9. OPERATION To operate the unit in the matrix mode, make necessary settings in advance such as the audio input/output settings and event settings (including broadcast pattern and BGM broadcast group) according to the set operation method. 9.1. Normal Use In the matrix mode, the unit need not be manually operated in normal conditions since the set broadcast patterns can be activated by means of remote control.

  • Page 29: Changing The Input Volume

    9.1.3. Changing the input volume Step 1. Press the Input channel selection key to choose the input channel for which you want to change the volume from those with the illuminated Input channel ON/OFF indicator (channel number). The selected channel's selection indicator (red dot) lights, and the channel name and volume level are displayed on the VFD screen.

  • Page 30: Zone Paging

    9.2. Zone Paging This section describes the method of initiating zone paging from a PABX (extension telephone) using the ZP- 001T Zone Paging module. Note that the operation method differs depending on the ZP-001T's operation mode setting: paging port mode or ring signal mode. In both operation modes, when any of the following situations arises, the ZP-001T will not receive calls from the PABX or the line will be cut off if the ZP-001T is being engaged in paging call.

  • Page 31: Ring Signal Mode

    9.2.2. Ring signal mode Step 1. Make a call from the extension telephone to the ZP-001T module. After a calling tone sounds twice, the ZP-001T receives the call and a callback tone is heard from the handset. Step 2. Select the output channel. Press [0] first, followed by the output channel number* ([1] –...

  • Page 32: Releasing Key Lock

    9.3. Releasing Key Lock The key lock function prevents the front-mounted keys or knobs from being tampered. (Refer to Lock Function Setting.") You can temporarily operate the locked keys by entering a password to unlock them. Operation after password entry differs depending on the locked keys. Step 1.

  • Page 33: Paging While Power Is Off

    10. PAGING WHILE POWER IS OFF The 9000 Series amplifiers are designed to initiate paging by way of the ZP-001T module or activate the Event* even while the power is OFF* The unit operates as follows when the power is switched OFF: •...

  • Page 34: System Design-To-Operation Flow

    11. SYSTEM DESIGN-TO-OPERATION FLOW 1. Design the system. 1.1. Determine the input and output equipment. 1.2. Set the input-to-output routing and priority. 2. Prepare equipment. 2.1. Mount modules. (Refer to 2.2. Check to confirm that the Mode switch is set to the matrix mode. (Refer to 2.3.

  • Page 35: Selecting Operation Method

    M O D E M A T R I X Normal matrix operation When the A-9060DH or A-9120DH with ZP- 001T but without T-001T installed is used: Either the 2-channel output operation or normal matrix operation can be selected.

  • Page 36: Setting

    13. SETTING Ensure that the Mode switch on the unit's rear panel is set to the MATRIX position before performing the setting. The setting items include those which must be set before operation (audio input/output, Event, and utility settings), those which are adjusted while actually monitoring the sound (adjustment mode settings), and those which restrict operations of front panel keys and knobs (key lock settings).

  • Page 37: Setting Keys And Knobs

    13.2. Setting Keys and Knobs Output channel ON/OFF key Input channel ON/OFF key [Front] INPUT SELECT TOA 9000 SERIES AMPLIFIER A-9120DH Input channel selection keys Input volume control Output channel selection key Output volume control INPUT VOLUME OUTPUT VOLUME MEMORY ON/OFF ON/OFF OUTPUT SEL...

  • Page 38: Basic Setting Operation

    13.3. Basic Setting Operation 13.3.1. Entering the setting mode Holding down the Utility menu key for 2 seconds or more displays the setting menu screen. Note You cannot enter the setting mode as long as any indication is displayed in the upper line of the VFD screen. To enter, delete the indication by pressing the Memory key, then hold down the Utility key for 2 seconds or more.

  • Page 39: Returning From Setting Mode To Normal Use State

    [Setting content selection] Use the Parameter setting knob in most cases. In some cases, however, use the input and output channel selection keys, or the input and output channel ON/OFF keys. I N P U T 1 P R I O R I T Y For example, to select an input channel, use the input channel selection key as shown below.

  • Page 40: Input Parameter Setting

    13.4. Input Parameter Setting 13.4.1. Setting flow chart [Normal matrix operation] Normal use state MEMORY UTILITY Press for over 2 seconds. PARAMETER Setting menu screen Input channel selection I N P U T – S E T T I N G S E L E C T I N P U T (For the channel on which the D-001T is used)
  • Page 41 [1-channel or 2-channel output operation] Normal use state MEMORY UTILITY Press for over 2 seconds. PARAMETER Setting menu screen Input channel selection I N P U T – S E T T I N G S E L E C T I N P U T (For the channel on which the 900 (For the channel on which the D-001T...

  • Page 42: Input Setting Items

    13.4.2. Input setting items Use the Parameter setting knob for each parameter selection. (A1) Input channel name setting I N 1 – _ _ _ _ _ _ _ The flashing portion is the cursor position for entering channel name characters. Select a character from the alphanumeric character list by rotating the Parameter setting knob, then move the cursor with the Right shift key.
  • Page 43 (A5) Pre-paging tone ON/OFF setting (when the ZP-001T is used) P R E P A G E T O N E – O F F Set whether or not to sound a one-tone chime before paging. Setting Range ON, OFF (default) When set to OFF, the tone does not sound at the paging telephone, either.
  • Page 44 (A11) Trigger setting (only in the 1-channel or 2-channel output operation, when the 900 series module or D-001T is used) T R I G G E R = N O N E Set how to activate the selected input channel. Setting Range NONE (default), C-IN01 –...

  • Page 45: Audio Output Name Setting

    13.5. Audio Output Name Setting 13.5.1. Setting flow chart The screen display examples shown below may differ from actual displays. The on-screen indications shown in red here (actually shown by flashing cursors) are parameters or setting contents to be selected with the Parameter setting knob, input channel selection key or other designated keys. The indications of the [ ], [ ], [ ], and [ ] arrows represent that the screen is switched with the Screen...

  • Page 46: Event Setting (Only In The Normal Matrix Operation)

    13.6. Event Setting (Only in the normal matrix operation) 13.6.1. Setting flow chart The screen display examples shown below may differ from actual displays. The on-screen indications shown in red here (actually shown by flashing cursors) are parameters or setting contents to be selected with the Parameter setting knob, input channel selection key or other designated keys.

  • Page 47: Event Setting Items

    13.6.2. Event setting items Unless otherwise specified, use the Parameter setting knob for each parameter selection. (B1) Event number selection E V E N T N O N E Event number Setting Range 01 – 32 (default: 01) (B2) Event classification setting E V E N T 0 1 N O N E Event classification...
  • Page 48 (B4) Output channel setting (when Event classification is set to ROUTE) E V E N T 0 1 O U T 1 Output channel name Setting Range OUT1 – 2, Max. 8 when T-001Ts are used (default: OUT1) Note: 2 or more channels selectable. •...
  • Page 49 (B7) Busy input terminal setting (when Event classification is set to ROUTE, the Trigger to the control input C-IN terminal, and the Trigger type to PULSE) B U S Y – I N N O N E Select the control input terminal to receive Busy signal. Selecting the terminal overwrites the previously set function on it if there is.
  • Page 50 (B11) BGM Event number selection (when Event classification is set to BASE) E V E N T 0 1 B A S E Event number Setting Range 01 – 32 (default: 01) Rotating the Parameter setting knob displays only the priority-8 inputs with the trigger function set to NONE (normally BGM broadcasts) out of the Event numbers with Event classification set to ROUTE.

  • Page 51: Utility Setting

    13.7. Utility Setting 13.7.1. Setting flow chart The screen display examples shown below may differ from actual displays. The on-screen indications shown in red here (actually shown by flashing cursors) are parameters or setting contents to be selected with the Parameter setting knob, input channel selection key or other designated keys. The indications of the [ ], [ ], [ ], and [ ] arrows represent that the screen is switched with the Screen...
  • Page 52 From the previous page (P. 55-C1) Function selection Control output number selection (when the control output is selected) (p. 58-C17) U T I L I L Y C - O U T C - O U T N O N E PARAMETER Interlock output control display (only in the normal matrix operation)
  • Page 53 From the previous page (P. 55-C1) Function selection Remote controller type setting (when the remote volume control (when the remote controller type is selected) is set to VOLUME) (p. 61-C26) U T I L I T Y R E M O T E R E M O T E 1 V O L U M E PARAMETER...
  • Page 54 From the previous page (P. 55-C1) Function selection (when the operation method is selected) Operation method setting (p. 63-C36) U T I L I T Y S U B - M O D E M O D E M A T R I X PARAMETER Function selection (when the firmware version is selected)

  • Page 55: Utility Setting Items

    13.7.2. Utility setting items Unless otherwise specified, use the Parameter setting knob for each parameter selection. (C1) Function selection U T I L I T Y C - I N Setting Range C-IN (control input, default), C-OUT (control output), POWEROFF, VOX TIME (VOX release time), RS232C, MODULE, PRIORITY, REMOTE (remote volume), ANC (ANC monitor), EVENT (Event activation at power-on), CHANNEL (input channel activation at power-on), SUB-MODE (operation method), VERSION, MEMORY (memory initialization)
  • Page 56 (C3) Event assignment display (Only in the normal matrix operation) C - I N 0 1 E V E N T N O N E When the displayed control input (C-IN01 in this example) is set to Trigger in the Event setting, the Event number is displayed.
  • Page 57 (C8) (When the control input function is set to MUTE:) C - I N 0 1 – M U T E Assign the function that mutes the input or output channel to the control input. Closing the control input terminal mutes the set channel. An input channel, when muted while in use, occupies the routed output, causing the Event-activated broadcast by the input channel with lower priority not to go through to the same output channel.
  • Page 58 (C13) (When the control input function is set to EMG-MUTE:) C - I N 0 1 – E M G - M U T E Assign the function that simultaneously mutes all output channels to the control input. Closing the control input terminal mutes all output channels.
  • Page 59 (C18) Interlock output control display (Only in the normal matrix operation) C - O U T 0 1 E V E N T N O N E When the displayed control output (C-OUT01 in this example) is designated as interlock output in the Event setting, its Event number is displayed.
  • Page 60 [When the function is set to RS232C:] (C23) Communication speed (bps) setting S E R I A L S P E E D = 5 7 6 Setting Range 9.6 k, 19.2 k, 38.4 k, 57.6 k (default), 115.2 k [When the function is set to MODULE:] (C24) Slot number selection and 900 series module classification setting S L O T...
  • Page 61 [When the function is set to REMOTE:] (C26) Remote controller type setting R E M O T E 1 V O L U M E Set the type of remote controller connected to the remote control input terminals. Use the Left and Right shift keys to move the setting items on the screen. Remote Volume Setting Range Terminal Number...
  • Page 62 [When the function is set to ANC:] (C29) ANC monitor switching ON/OFF setting A N C M O N S E L E C T = If there are 2 or more ANC inputs, set whether or not ANC inputs to be monitored are switched. Setting Range OFF (default), ON (C30) Monitor switching control input terminal setting (When the ANC monitor switching is set to ON)
  • Page 63 The 2-channel output operation (BGM/PAGE) or normal matrix operation (MATRIX) can be selected when the A-9060DH or A-9120DH with ZP-001T but without T-001T installed is used. On the conditions except above, the operation method cannot be selected but is fixed to the normal matrix operation .
  • Page 64 [When the function is set to VERSION:] (C37) Firmware version indication F I R M V E R S I O N = Displays the firmware version number. [When the function is set to MEMORY:] (C38) Memory initialization I N I T I A L I Z E O K ? Pressing the Enter key initializes all of the unit's current settings to default settings.

  • Page 65: Adjustment Mode Setting

    13.8. Adjustment Mode Setting 13.8.1. Settings in adjustment mode In the adjustment mode, audio setting parameters can be set while monitoring the output sound. Input and output gain settings, input sound source equalization*, and sound equalization for individual output zones can be performed.
  • Page 66 Step 8. Return to the input gain setting screen and press the Right shift key. The output channel selection and gain setting screen is displayed. Note To stop the audio output temporarily, press the output channel ON/OFF key. Step 9. Adjust the gain with the Output volume control. In this event, pressing the Output channel selection key permits the output channel to be selected.

  • Page 67: Adjustment Mode Setting Flow Chart

    13.8.2. Adjustment mode setting flow chart (Normal matrix operation) Normal use state Event selection E V E N T MEMORY UTILITY Press for over 2 seconds. PARAMETER Setting menu screen To select, A D J U S T (1-channel or 2-channel output operation) Input channel selection I N P U T PARAMETER...

  • Page 68: Adjustment Mode Setting Items

    13.8.3. Adjustment mode setting items Unless otherwise specified, use the Parameter setting knob for each parameter selection. (D1) Event selection (In the normal matrix operation) E V E N T – R O U T E KEYLOCK FAULT EMERGENCY Event No. Output channels set in Event setting Input channel set in Event setting Rotate the Parameter setting knob to obtain the Event No.
  • Page 69 (D4) BASS and TREBLE settings (input/output) B A S S + 1 2 T R E B L E – 1 0 Rotate the Parameter setting knob to set gains. Press the Right or Left shift key to select BASS or TREBLE, of which gain value that flashes can be adjusted. Setting Range –12 dB to +12 dB (default: 0 dB), 1 dB steps (D5) Loudness compensation setting (input/output)
  • Page 70 (D8) Compressor setting (input/output) C O M P R E S S O R – O F F Setting Range OFF (default), 1, 2, 3, 4, 5 Use the compressor to prevent power amplifier overload or to produce more easily heard sound by averaging the audio level.
  • Page 71 (D11) Highest output level setting (when the AN-001T is used and ANC operation is set to ACTIVE) M A X I M U M L E V E L Set the upper limit of the ANC-activated output level. Setting Range –15, –12, –9, –6, –3, 0 (default) dB Note: Settable level is 3 dB or more above the lower limit (lowest output level).
  • Page 72 (D14) Reference level adjustment (when the AN-001T is used and ANC operation is set to ACTIVE) A N C A D J : S E N S ANC adjustment value Reference level Adjust the reference level which is a starting point for detecting the amount of change in ambient noise level. (Refer to the previous setting item.) Though the reference level is automatically determined according to the input sensitivity set on its setting screen, this adjustment screen allows the reference level to be manually adjusted under the actual condition...
  • Page 73 (D17) Speaker parameter presetting A L L F L A T Optimum equalization can be automatically set depending on the type of speaker to be used. If this function is not used or the speaker to be used is not included in a speaker list, set "SP EQ" to ALL FLAT.
  • Page 74 GAIN (dB) FREQ (Hz) EQ 01 EQ 02 Settable EQ bands EQ 03 in the EQ setting screen EQ 04 EQ 05 EQ 06 (HPF) – EQ 07 EQ 08 –6.5 EQ 09 +1.5 EQ 10 (LPF) – 15.8 k H-1 with a subwoofer GAIN (dB) FREQ (Hz) EQ 01...
  • Page 75 HB-1 GAIN (dB) FREQ (Hz) EQ 01 EQ 02 EQ 03 Settable EQ bands EQ 04 in the EQ setting screen EQ 05 EQ 06 EQ 07 EQ 08 EQ 09 (HPF) – EQ 10 (LPF) – SW FOR F-122* GAIN (dB) FREQ (Hz) EQ 01 EQ 02...
  • Page 76 FB-120* GAIN (dB) FREQ (Hz) EQ 01 EQ 02 EQ 03 Settable EQ bands EQ 04 in the EQ setting screen EQ 05 EQ 06 EQ 07 EQ 08 EQ 09 (HPF) – EQ 10 (LPF) – FB-120 Series 2.053...

  • Page 77: Key Lock Function Setting

    13.9. Key Lock Function Setting The key lock function prevents equipment malfunctions by disabling operation of each key. 13.9.1. Keys that can be locked INPUT SELECT TOA 9000 SERIES PRE-AMPLIFIER M-9000 ALL: Locks all keys simultaneously. INPUT: Locks the Input channel selection keys, Input volume control, and Input channel ON/OFF key. It is also possible to individually set whether or not to lock for each channel.

  • Page 78: Key Lock Function Setting Flow Chart

    13.9.2. Key lock function setting flow chart The screen display examples shown below may differ from actual displays. The on-screen indications shown in red here (actually shown by flashing cursors) are parameters or setting contents to be selected with the Parameter setting knob, input channel selection key or other designated keys. The indications of the [ ], [ ], [ ], and [ ] arrows represent that the screen is switched with the Screen...

  • Page 79: Key Lock Function Setting Items

    13.9.3. Key lock function setting items Set the keys to be locked on the key lock function setting screen. The KEYLOCK indication lights after setting completion. Since a password is requested if the locked key is pressed, enter the password. Unless otherwise specified, use the Parameter setting knob for each parameter selection.
  • Page 80 (E7) Output channel selection key lock ON/OFF K E Y L O C K O U T P U T O F F Locks the Output channel selection key, Output channel ON/OFF key, and Output volume control for each Output channel. Select with the Parameter setting knob the Output channel to be locked, and set the key lock function to ON with the Output channel ON/OFF key.

  • Page 81: Password Setting

    13.9.4. Password setting When using a password, set the password before performing lock setting for each key. Step 1. Hold down the Utility menu key for 2 seconds or more in normal use state. The setting screen is displayed. Step 2. Select KEYLOCK with the Parameter setting knob. Step 3.

  • Page 82: Key Lock Setting Operation

    13.9.5. Key lock setting operation Step 1. Hold down the Utility menu key for 2 seconds or more in normal use state. The setting screen is displayed. Step 2. Select KEYLOCK with the Parameter setting knob. Step 3. Press the Right shift key. Lock status is displayed.

  • Page 83: Restoring Factory Default Setting

    14. RESTORING FACTORY DEFAULT SETTING Follow the procedures below to return all settings to default values while using the unit in the matrix mode. Details of the default values are shown on Step 1. Hold down the Utility menu key for 2 seconds or more when in normal use state.

  • Page 84: Default Setting Table

    14.1. Default Setting Table 14.1.1. Input settings Setting Item Input Channel Name [Settings when the 900 series module is used] Trigger* Zone 1 – 4 * [Settings when the D-001T is used] Input Sensitivity Phantom Power VOX Function* Trigger* Zone 1 – 4 * [Settings when the ZP-001T is used] Pre-paging Tone Operation Mode...

  • Page 85: Utility Settings

    [When Event classification is set to ROUTE] Input Channel Output Channel Trigger Trigger Type Busy input terminal Interlock Output Control Interlock Output [When Event classification is set to BGMEND] Trigger [When Event classification is set to BASE] Event Number Trigger 14.1.4.

  • Page 86: Adjustment Mode Settings

    [When the function selection is set to REMOTE] Remote Controller Type Remote-Controlled Channel Volume-Controlled Signal [When the function selection is set to ANC] ANC Monitor Switching ON/OFF Control Input Terminal Interlock Output Control Interlock Output Terminal [When the function selection is set to EVENT] Event Activation at Power-On [When the function selection is set to CHANNEL] Input Channel Activation at...
  • Page 87 [Settings when the AN-001T is not used] Ducker Attenuation Level Output Channel Settings Output Channel Selection Channel Control Channel Gain BASS/TREBLE Loudness Compensation Speaker Parameter Presetting EQ Band Number Gain Center Frequency Compressor –20 dB OUT1 –20.0 dB 0 dB ALL FLAT (When EQ = ON and EQ band number = 01) 0 dB...

  • Page 88: Module Installation

    15. MODULE INSTALLATION Important Be sure to detach the power cord when inserting or removing any module. 15.1. Module Combination The unit is designed to provide an up to 8-input/8-output configuration in combination with its optional modules. Inputs are configured by only using the modules. (No input terminals are located on the rear panel.) For outputs, 2 output channels are provided on the rear panel and can be expanded by adding modules.
  • Page 89 Step 2. Insert the AN-001T module into the slots in order without leaving slots open in between. Note Up to 8 audio inputs including AN-001T's inputs can be used per amplifier. Step 3. Insert the T-001T module into the slots, starting in order from Slot 5 without leaving slots open in between.

  • Page 90: Module Installation Examples

    15.4. Module Installation Examples [Example of audio 8 IN/8 OUT and control 12 IN/12 OUT configuration] C-001T T-001T T-001T Control Audio Audio 8 inputs 2 outputs 2 outputs 8 outputs [Example of audio 5 IN/4 OUT, control 4 IN/4 OUT, and ambient noise sensor 2 IN configuration] Open slot Open slot 900 series...

  • Page 91: Connections

    16. CONNECTIONS 16.1. Control I/O Terminal Connections 16.1.1. Remote volumes 1, 2 Volume of the input or output channels can be remotely adjusted by connecting a variable resistor or variable DC power supply unit. (The REMT VOL 1 terminal is factory-preset to output 1, and the REMT VOL 2 to output 2.) Connect a 10 kΩ...

  • Page 92: Control Outputs 1 - 4

    16.1.3. Control outputs 1 – 4 Use these terminals to activate LEDs, relays, and other external equipment. Maximum operating current is 50 mA, and the maximum applicable voltage is +27 V. REMT VOL1 (Remote volume 1) REMT VOL2 (Remote volume 2) (Control inputs) (Control outputs) REMT VOL1...

  • Page 93: Operation By Control Input

    16.1.4. Operation by control input [Pulse trigger] Use this method to activate operations for which no definite end can be defined, such as Volume Up/Down, BGM and Base pattern activation, and BGM End. Minimum pulse width is 100 ms. High BASE BGM END Broadcast state...
  • Page 94 [Level trigger] Use this method to activate "MUTE," "POWER" (Power ON/OFF remote function), "EMG-MUTE" (Cut-off by emergency control), interrupt broadcasts, and other operations of which start and end must be defined. High For "MUTE," "POWER," and "EMG-MUTE" functions, if operated at the front panel (EMG-MUTE does not accept this access from the front panel) or if other control input to which the same function is assigned is fed, their states are changed by subsequent panel operations or control input activations.

  • Page 95: Speaker Output Terminal Connections (A-9060S And A-9120S Only)

    16.2. Speaker Output Terminal Connections (A-9060S and A-9120S only) The A-9060S and A-9120S are equipped with speaker output terminals of 70 V, 25 V, and 8 Ω transformer output, and 4 Ω direct output. 16.2.1. Transformer output terminal connection Connect the supplied jumper wire* between 4 Ω (DIRECT) and TRANS IN terminals as shown below. Then, connect speakers to COM terminal and 70 V, 25 V, or 8 Ω...

  • Page 96: C-001T Module Connections

    16.3. C-001T Module Connections 16.3.1. Control input terminal 16.3.2. Control output terminal (Open voltage: 3.3 V, Max. 1 mA) Contact closures Open collectors, etc. LEDs, Relays, etc. (Max. 50 mA) For operation by means of the control inputs, refer to Applicable DC voltage Max.

  • Page 97: Rs-232C Connector Connection

    16.4. RS-232C Connector Connection Use the straight cable when connecting a PC to the unit's RS-232C connector (9P, female). 9000 Series amplifier RS-232C connection (Female) 16.5. AN-001T and AN-9001 Connections The AN-001T and AN-9001 are connected as illustrated below and used to control the speaker sound volume in a room or such closed space.

  • Page 98: Power Source Connections To The Ss-9001

    16.6. Power Source Connections to the SS-9001 16.6.1. When using a 24 V DC power source Connect a 24V DC power source to the SS-9001's DC input terminal pins. From 24 V DC power source SS-9001's side 16.6.2.When using the optional AC adapter Connect the optional AD-246 AC Adapter to the SS-9001's DC input terminal.

  • Page 99: Removable Terminal Plug Connection

    16.7. Removable Terminal Plug Connection Be sure to use the supplied removable terminal plugs for connections to the removable terminal blocks. Cautions • Be sure to use shielded cables for audio signal lines and for the ZM-9001/9002 control lines. • Avoid soldering stranded or shielded cable, as contact resistance may increase when the cable is tightened and the solder is crushed, possibly resulting in an excessive rise in joint temperatures.

  • Page 100: Rack Mounting Bracket Attachment

    17. RACK MOUNTING BRACKET ATTACHMENT Use the supplied rack mounting bracket when mounting the unit in an equipment rack. Step 1. Remove four M4 x 8 screws on the sides. The removed screws are no longer used. Step 2. Attach the rack mounting bracket to the unit using the supplied four M4 x 16 bracket mounting screws. Bracket maunting screw M4 x 16 (supplied) Rack mounting bracket (supplied)

  • Page 101: An-9001 Installation

    18. AN-9001 INSTALLATION Step 1. Install a 1-gang electrical box in a wall or ceiling. Step 2. Mount the AN-9001's Main unit to the installed electrical box. Use the 2 screws (No.6-32UNC x 30) supplied with the AN-9001. Note The AN-9001 comes with 2 types of machine screws: No.6-32UNC x 30 (unified threads) and M4 x 30 (metric threads).

  • Page 102: Dimensional Diagrams

    19. DIMENSIONAL DIAGRAMS 19.1. AN-9001 [Front] [Bottom] [Front view of Main unit] [Side] 1-gang Electrical Box (not supplied) [Figure when mounted] Unit: mm 46 – 50 [Dimensions of mounting opening]...

  • Page 103: Zm-9001

    19.2. ZM-9001 [Front] [Bottom] 19.3. ZM-9002 [Front] [Bottom] [Front View without panel] [Side] 1-gang electrical box (not supplied) [Figure when mounted] [Dimensions of mounting opening] [Side] 1-gang electrical box (not supplied) [Figure when mounted] Unit: mm 32.6 46 – 50 Unit: mm 32.6 [Front View without panel]...

  • Page 104: Ss-9001

    19.4. SS-9001 9000 SERIES SPEAKER SELECTOR IN 1 ZONE 1 70 V MAX. 240W IN 2 IN 2 70 V MAX. 240W ZONE 2 CTRL IN IN 2 ZONE 1 ZONE 2 ZONE 3 ZONE 3 ZONE 4 IN 2 DC IN 120mA ZONE 4...

  • Page 105: How To Use The Supplied Software

    20. HOW TO USE THE SUPPLIED SOFTWARE 20.1. General Description The supplied CD-ROM contains the A-9000 series maintenance software, which executes the following utility programs. Updating firmware Updates the firmware. Parameter file Others* [System requirements] Ensure your PC operates on Windows XP and also meets the following requirements, or this software will not run properly.

  • Page 106: Installing The Software

    20.2. Installing the Software Step 1. Load the supplied CD-ROM into the PC's CD-ROM drive. Step 2. Double-click the "setup_a9k.exe" icon in the software folder. Step 3. Designate the folder into which the 9000 series maintenance software is extracted, and click the "OK" button.

  • Page 107: Setting The Communication Port And Speed

    20.4. Setting the Communication Port and Speed Set the PC's communication port and speed according to the procedure below. Step 1. Double-click the "MaintCtrl.exe" icon to run the 9000 series maintenance software. The screen at right is displayed. Step 2. Pull down the menu from the "Option" button and select "Communication Setting."...

  • Page 108: Updating The Firmware

    20.5. Updating the Firmware Our latest A-9000 firmware is made available on our product information download site (http://www.toa- products.com/international/). You can also obtain the latest version by downloading it. The communication speed is fixed to a given value during updating irrespective of its setting. Step 1.
  • Page 109 Step 5. Perform the following key operations at the unit to make the unit ready for data reception from the PC. 5-1. Turn the power switch off. 5-2. Press the Input channel 8 selection key, Escape/Back key, and Power switch at the same time. The unit is placed in standby mode for communications with the PC.

  • Page 110: Storing Or Recalling Parameters Set At The Unit

    20.6. Storing or Recalling Parameters Set at the Unit You can back up the parameters set at the unit to your PC, or transfer the parameters stored in your PC to the unit. Step 1. Double-click the "MaintCtrl.exe" icon to run the 9000 series maintenance software.
  • Page 111 Step 5. Select the file, then click the "Open" button. The set parameters are transferred from the unit to the PC or from the PC to the unit. Step 6. Click the "Exit" button to terminate the program after data transmission completion.

  • Page 112: Monitoring The Unit's Operation Status

    20.7. Monitoring the Unit's Operation Status The operation status of the unit can be monitored in real time. Step 1. Double-click the "MaintCtrl.exe" icon to run the 9000 series maintenance software. The screen at right is displayed. Step 2. Click the "Others" button. The window at right opens.
  • Page 113 Step 4. To stop monitoring, click the "Stop" button. Step 5. Click the "Exit" button to terminate the program. The screen returns to the initial menu screen in Step 1.

  • Page 114: Activating The Control Input

    20.8. Activating the Control Input You can simulate the unit's control input activation through PC operation. Step 1. Double-click the "MaintCtrl.exe" icon to run the 9000 series maintenance software. The screen at right is displayed. Step 2. Click the "Others" button. The window at right opens.

  • Page 115: Error Indications

    21. ERROR INDICATIONS Error indications MODULE SLOT#No. ERROR DC PROTECT (OUTPUT #No.) THERMAL PROTECT ERASE MIXER MEMO? ERASE MATRIX MEMO? INITIALIZE MEMORY? The Fault indicator lights. The Fault indicator flashes. Possible cause and Remedy A module is inserted into a wrong slot. Check to confirm that each module is inserted into a correct slot, and correctly reinsert the module inserted into the wrong slot.

  • Page 116: Troubleshooting

    22. TROUBLESHOOTING Symptom Noise generated. Module mounting screw not securely tightened. Excessive noise. Incorrect module input sensitivity setting. Sound distorted. Incorrect module input sensitivity setting. D-001T module mounting Phantom power not supplied. screw not securely tightened. Phantom power not Phantom power set to OFF supplied.

  • Page 117: Block Diagram

    PWR AMP OUT 1 IN 1 NE5532 PRE AMP PWR AMP OUT 2 IN 2 NE5532 70 V Hi-Z BTL POWER AMP: A-9060DH CU, A-9120DH CU Low-Z Single-END POWER AMP: A-9120DL CU POWER SUPPLY REMT-VOL1 REMT-VOL2 R–>V CONVERT MAIN_TRANS CONTROL INPUT...

  • Page 118: Signal Flow Diagram

    VOLUME –30 –40 ON/OFF 10BAND P-EQ PUT-2 COMP TONE LOUDNESS ON/OFF LEVEL METER –10 OUTPUT –20 VOLUME –30 –40 ON/OFF A-9060DH/9120DH/9120DL 10BAND P-EQ PUT-1 COMP TONE LOUDNESS LEVEL METER –10 OUTPUT –20 VOLUME –30 –40 ON/OFF 10BAND P-EQ PUT-2 COMP...

  • Page 119: Level Diagram

    A-9060S CU, A-9120S CU 70 V 70 V 25 V 25 V 8 Ω 8 Ω TRANS IN DIRECT SPEAKERS OT-less model: A-9240SH CU 70 V – – SPEAKERS A-9060DH CU, A-9120DH CU RELAY SPEAKERS OUT 1 – OUT 2 – RELAY...

  • Page 120: Specifications

    26. SPECIFICATIONS 26.1. M-9000 Power Source 120 V AC, 60 Hz Power Consumption 40 W Audio Input Max. 8 channels, modular construction (modules optional) Audio Output Preamplifier output 1, 2: 0 dB* Module Slot Analog input (slot 1 – 8): –10 dB* Digital input (slot 1 –...
  • Page 121 • Accessories Power cord (2 m) ... 1 Rack mounting bracket ... 2 Bracket mounting screw (M4 x 16) ... 4 Blank panel ... 7 Blank panel mounting screw (M3 x 8) ... 14 Removable terminal plug (3 pins) ... 2 Removable terminal plug (14 pins) ...

  • Page 122: A-9060Dh, A-9120Dh

    26.2. A-9060DH, A-9120DH Model No. Power Source Power Consumption Audio Input Audio Output Preamplifier Output 1, 2 Speaker Output 1, 2 60 W, 83 Ω x 2, BTL output, removable terminal block (4 pins) Module Slot Analog input (slot 1 – 8): –10 dB* Digital input (slot 1 –...

  • Page 123: Bracket Mounting Screw (M4 X 16)

    0 dB = 1 V Allowing it to be controlled by a control system such as AMX and Crestron through RS-232C port. Notes • The design and specifications are subject to change without notice for improvement. • AMX is a trademark of AMX Corporation. •...

  • Page 124: A-9120Dl

    26.3. A-9120DL Power Source 120 V AC, 60 Hz Power Consumption 260 W Audio Input Max. 8 channels, modular construction (modules optional) Power amplifier input 1, 2: 0 dB* Audio Output Preamplifier output 1, 2: 0 dB* Speaker output 1, 2: Module Slot Analog input (slot 1 –...
  • Page 125 0 dB = 1 V Allowing it to be controlled by a control system such as AMX and Crestron through RS-232C port. Notes • The design and specifications are subject to change without notice for improvement. • AMX is a trademark of AMX Corporation. •...

  • Page 126: A-9060S, A-9120S

    26.4. A-9060S, A-9120S Model No. Power Source Power Consumption Audio Input Audio Output Preamplifier Output 1 Preamplifier Output 2 Speaker Output [Direct] 60 W, 4 Ω, unbalanced, removable terminal block (7 pins) [Transformer] 60 W, 8 Ω 25 V & 75 V, balanced, removable terminal block (7 pins) Module Slot Analog input (slot 1 –...
  • Page 127 Operating Temperature Operating Humidity Finish Dimensions Weight 0 dB = 1 V Allowing it to be controlled by a control system such as AMX and Crestron through RS-232C port. Notes • The design and specifications are subject to change without notice for improvement. •...

  • Page 128: A-9240Sh

    26.5. A-9240SH Power Source 120 V AC, 60 Hz Power Consumption 250 W Audio Input Max. 8 channels, modular construction (modules optional) Power amplifier input: 0 dB*1, 10 kΩ, RCA pin jack Audio Output Preamplifier output 1: 0 dB* Preamplifier output 2: 0 dB* Speaker output: Module Slot Analog input (slot 1 –...
  • Page 129 0 dB = 1 V Allowing it to be controlled by a control system such as AMX and Crestron through RS-232C port. Notes • The design and specifications are subject to change without notice for improvement. • AMX is a trademark of AMX Corporation. •...

  • Page 130: Optional Modules 26.6.1. D-001T

    26.6. Optional Modules 26.6.1. D-001T Power Source Current Consumption Input Input Sensitivity Frequency Response Total Harmonic Distortion + N Input Equivalent Noise S/N Ratio Cross Talk CMRR A/D Converter Sampling Frequency Tone Control Parametric Equalizer High-pass Filter Low-pass Filter Compressor Phantom Power Operating Temperature Finish...

  • Page 131: T-001T

    26.6.2. T-001T Power Source Current Consumption Output Frequency Response Total Harmonic Distortion + N S/N Ratio Residual Noise Cross Talk D/A Converter Sampling Frequency Tone Control Parametric Equalizer Speaker Equalizer High-pass Filter Low-pass Filter Compressor Delay Operating Temperature Finish Dimensions Weight * 0 dB = 1 V Note: The design and specifications are subject to change without notice for improvement.

  • Page 132: C-001T

    26.6.3. C-001T Power Source Current Consumption Control Input Control Output Operating Temperature Finish Dimensions Weight Note: The design and specifications are subject to change without notice for improvement. • Accessories Removable terminal plug (9 pins) ... 2 Machine screw M3 x 8 ... 2 26.6.4.

  • Page 133: An-001T

    26.6.5. AN-001T Power Source +24 V DC, –24 V DC, +6 V DC Current Consumption 20 mA (at +24 V DC), 20 mA (at –24 V DC), 60 mA (at +6 V DC) Input Sensor input (Ambient noise sensor microphone input): 2 channels, 3 kΩ...

  • Page 134: Optional Accessories 26.7.1. An-9001

    26.7. Optional Accessories 26.7.1. AN-9001 Type Phantom Power Current Consumption Directivity Impedance Rated Sensitivity Frequency Response Output Terminal Operating Temperature Finish Dimensions Weight Note: The design and specifications are subject to change without notice for improvement. • Accessories Removable terminal plug (3 pins) ... 1 Machine screw No.

  • Page 135: Ss-9001

    26.7.4. SS-9001 Power Source Current Consumption Control Signal Control Power Speaker Terminal Control Terminal Operating Temperature Finish Dimensions Weight Note: The design and specifications are subject to change without notice for improvement. • Accessories Removable terminal plug (2 pins) ... 6 Removable terminal plug (10 pins) ...
  • Page 136 200610 CU...

This manual is also suitable for:

A-9120dlA-9120dhA-9060sA-9240shA-9120sM-9000

Table of Contents
