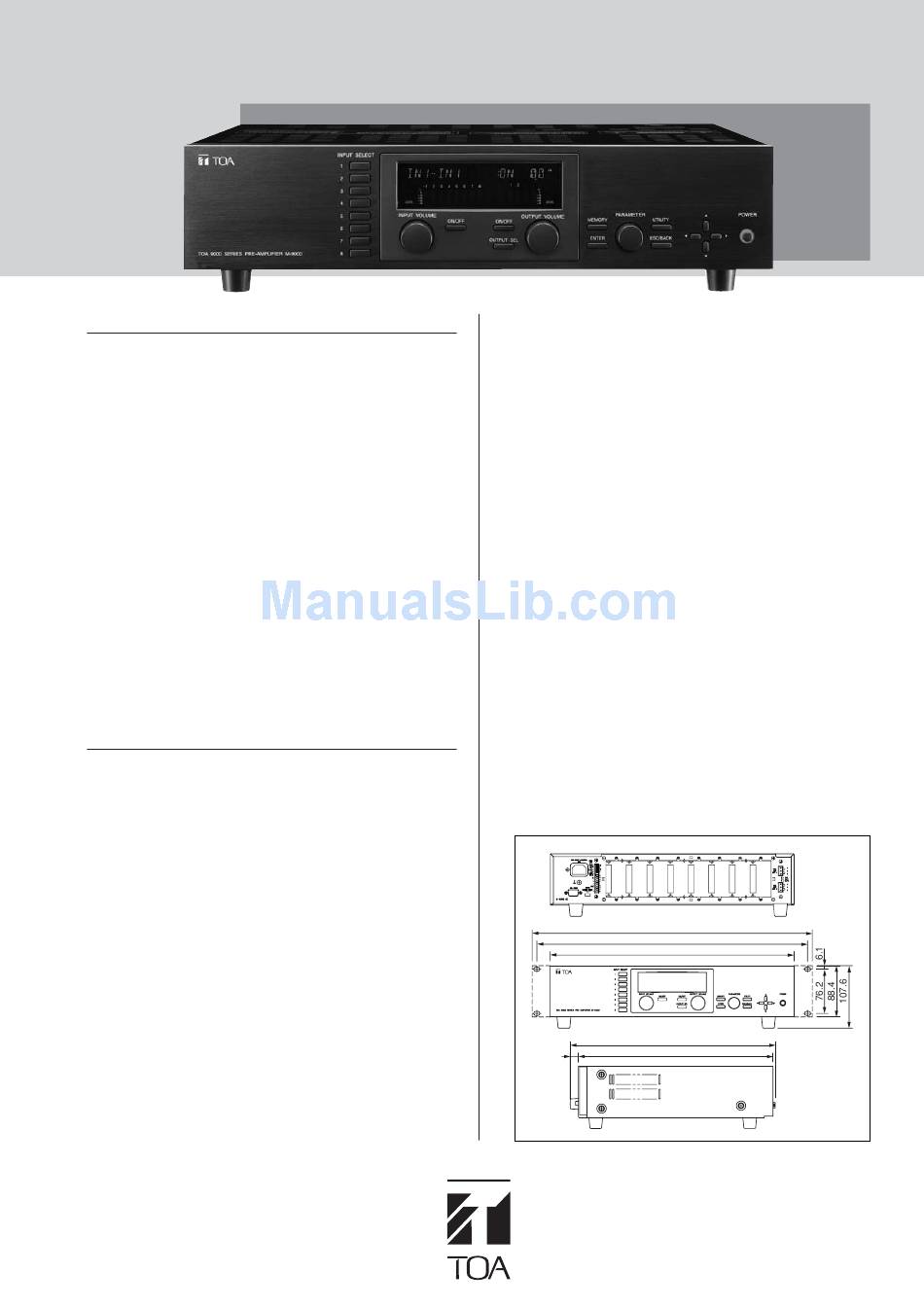

Toa M-9000 Specifications

DESCRIPTION
The TOA M-9000 Series Digital Matrix Mixer features a
compact design that fits in a two rack space package. The
versatile new Mixer is ideal for multi-zone paging, music
distribution and room-combining applications.
The M-9000 includes eight module ports allowing designers to
easily configure custom systems with up to eight mic/line inputs
and eight outputs. The M-9000 chassis has two channels of
built-in digital signal processing (DSP) with ten band parametric
EQ, compressor, eight level ducking and more. Input and
output modules provide additional DSP.
Two discrete operation modes, "Mixer" and "Matrix", allow the
M-9000 to be used in both simple mixing and complex multi-
zone paging applications. Versatile features include telephone
zone paging, automatic microphone mixing and ambient noise
control.
Modules include the D-001T dual channel mic/line input
module, T-001T dual channel line output module, ZP-001T
telephone access zone paging module, C-001T control
expansion module, and AN-001T Ambient Noise Control
module. Accessories include the AN-9001 ceiling/wall-mount
microphone, ZM-9001 and ZM-9002 remote panels, and
SS-9001 4-zone speaker selector.

SYSTEM FEATURES

■
Modular Digital Matrix Mixer for a multitude of applications
including audio-visual, zone paging, room combining and
many more.
■
Dual Modes (MIXER and MATRIX) — two separate feature
sets to suit both simple mixing and complex multi-zone
distribution applications.
■
Easy to Configure and Operate
■
Exceptional Audio Quality
• 24-bit, 48 kHz sampling
• Low Distortion - 0.008%
■
Modular System— up to 8 mic/line inputs and 8 outputs.
■
Dual Channel Digital Signal Processor (DSP):
• 10-Band Parametric EQ
• High and Low Pass Filters
• Compressor
• Loudness Contour
• Bass and Treble
• Delay (MIXER mode)
• TOA Speaker EQ Presets
• Additional DSP included on D-001T and T-001T modules
■
Telephone Zone Paging— access up to eight zones with
optional ZP-001T module
DIGITAL MATRIX MIXER
■
■
■
Ambient Noise Control— automatically increase or reduce
output levels in response to changes in ambient noise.
Multi-function Display allows programming and operation
without a PC.
Rack-mount Kit Included (2RU)
Flexible Remote Control
■
Two Remote Volume Control Terminals
• Assignable to any input or output channel
• Control with 10k ohm linear potentiometer, 0-10 VDC or optional
ZM-9001/ZM-9002 remote panels
• Assign remote volume control to background music (Priority 8)
inputs without affecting paging input volume
■
Four Control Inputs (expandable to twelve with C-001T module)–
programmable to activate Memory, Volume Up/Down, Mute, Power On/Off,
Emergency Mute
■
Four Control Outputs (expandable to twelve with C-001T module) –
programmable to activate external relays synchronized with Memory,
Channel On/Off and Power On/Off
■
RS-232 Port
• Control protocol available for external devices (see protocol for
controllable parameters)
• AMX and Crestron control modules available
Additional Features
■
Software Utility for saving unit parameters to PC,updating unit firmware,
virtual control activation and status indication
■
MS Excel Programming Templates – use Microsoft(R) Excel for off-site
programming
■
Keylock Security sets password-protected access to Input,
Output, Utility & Power functions
■
Input and Output Metering (D-001T module(s) required for input
metering)
■
Alphanumeric Channel and Memory Naming
■
Power On Memory sets the Event/Scene selected when unit powers up
■
Detachable AC Cable
Rear View
482
466
420
Front View
353
14
335
Side View
M-9000
unit: mm
