Device Description
®
technolon

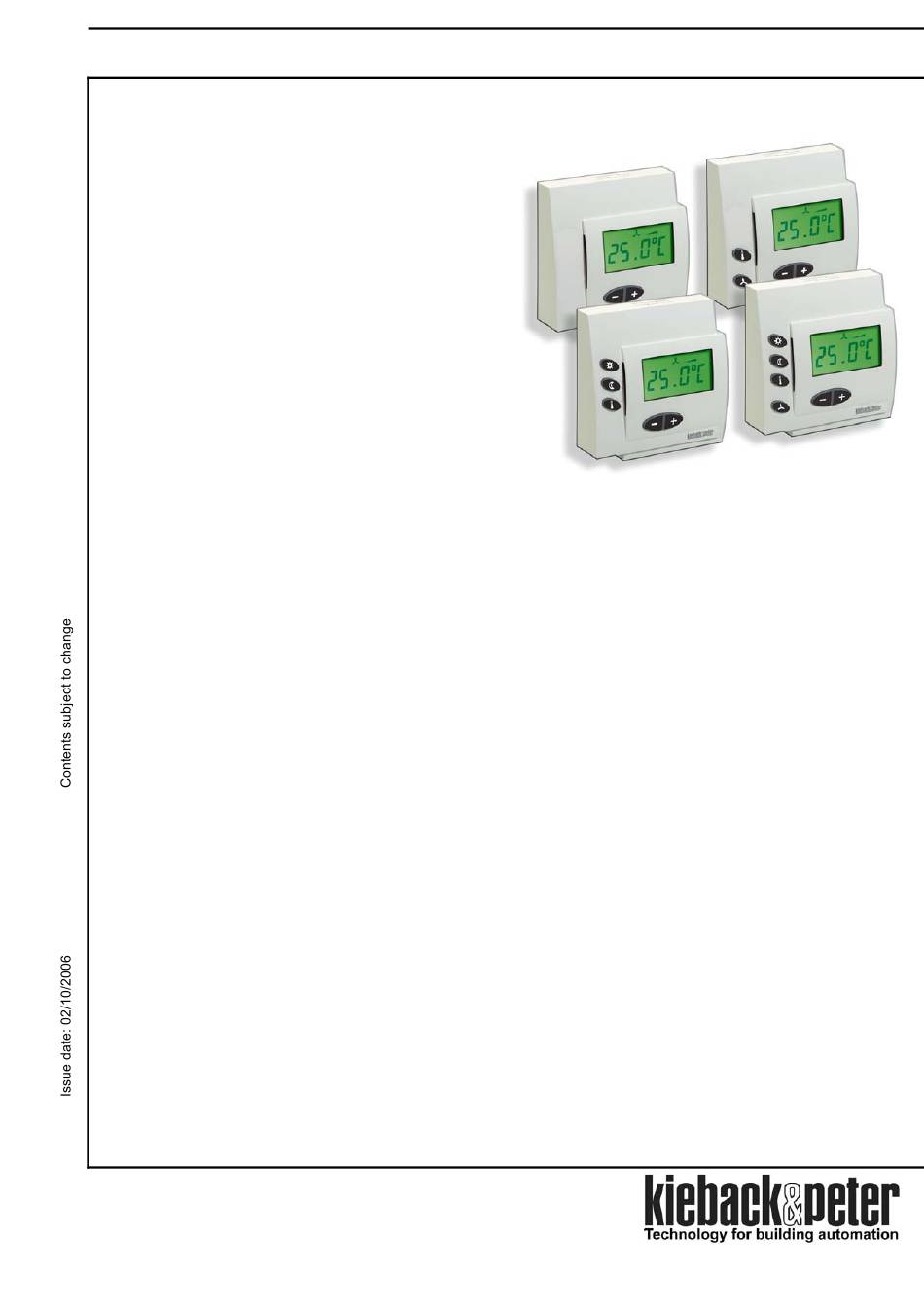

Room Module DDC110-L1,
DDC110-L2, DDC110-L3 and DDC110-L4
Single room control or room display and service
module for single-room control in the LON network.
With display of the room temperature and manual
adjustment of the room setpoint.
The DDC110-L2 technolon
additional user button for switching
3 ventilator speeds and temperature types.
The DDC110-L3 technolon
additionally has another user button for switching day
/night or standby operation and temperature type.
The DDC110-L4 technolon
DDC110-L3, additionally also has a user button for
switching 3 ventilator speeds.
With an I/O component (accessory), message inputs and servo devices
for heating and cooling as well as 3-level fan control can be directly
connected to a technolon
Kieback & Peter GmbH & Co KG
Tempelhofer Weg 50, D-12347 Berlin
Telephone +49 (0) 30 / 600 95-0
Telefax +49 (0) 30 / 600 95 164
E-Mail: info@kieback-peter.de
http://www.kieback-peter.de
®
Room Module has an
®
Room Module
®
Room Module, like
®
Room Module .
DDC110-L1 .. DDC110-L4 technolon
Technical data sheet 1.10-51.110-81-en
®
Room Module
Page
Page
Page
Page
Page
Page
Page
Page
10
Page
12
Page
12
2
2
2
3
3
3
4
Advertisement
Table of Contents
Related Manuals for Kieback&Peter Technolon DDC110-L1
Summary of Contents for Kieback&Peter Technolon DDC110-L1
-
Page 1: Table Of Contents
Technical data sheet 1.10-51.110-81-en ® Device Description DDC110-L1 .. DDC110-L4 technolon Room Module ® technolon Room Module DDC110-L1, DDC110-L2, DDC110-L3 and DDC110-L4 Single room control or room display and service module for single-room control in the LON network. With display of the room temperature and manual adjustment of the room setpoint. -
Page 2: Contents Notes On The Device Description
Technical data sheet 1.10-51.110-81-en ® DDC110-L1 .. DDC110-L4 technolon Room Module Device Description Notes on the device description ® The description contains references for the deployment and assembly of the technolon Room Module. In case of questions which cannot be clarified with this device description, please refer to the supplier or manufacturer for further information. -
Page 3: Application
Technical data sheet 1.10-51.110-81-en ® Device Description DDC110-L1 .. DDC110-L4 technolon Room Module Application The technolon ® Room Modules DDC110-L1, DDC110-L2, DDC110-L3 and DDC110-L4 are employed in the single- room control of the LON network as Single Room Control or as room displays and service modules . An I/O component UP can be connected at the Room Module as an accessory. -
Page 4: Technical Data
Technical data sheet 1.10-51.110-81-en ® DDC110-L1 .. DDC110-L4 technolon Room Module Device Description Technical data – Room Module DDC110-L1 to DDC110-L4 Mains 24 V AC/DC ± 10 %, 10 mA (without I/O component UP) Bus connection - LON FTT10 Application: According to LONMARK standard: LONMARK profile #8060 for single room control or LONMARK profile #8090 for room display and service module - Bus for I/O component UP on plug contact... - Page 5 Technical data sheet 1.10-51.110-81-en ® Device Description DDC110-L1 .. DDC110-L4 technolon Room Module Operation DDC110-L1 Display depending on the configuration: Room temperature (actual value) with function symbol ↕ Function symbols Room setpoint with function symbol Digital readout Other function symbols can be displayed depending on the configuration: Day operation Automatic switchover by...
- Page 6 Technical data sheet 1.10-51.110-81-en ® DDC110-L1 .. DDC110-L4 technolon Room Module Device Description Operation DDC110-L2 Display depending on the configuration: Room temperature (actual value) with function symbol ↕ Function symbols Room setpoint with function symbol Digital readout Other function symbols can be displayed depending on the configuration: Day operation Automatic switchover by...
- Page 7 Technical data sheet 1.10-51.110-81-en ® Device Description DDC110-L1 .. DDC110-L4 technolon Room Module Operation DDC110-L3 Display depending on the configuration: Room temperature (actual value) with function symbol ↕ Function symbols Room setpoint with function symbol Digital readout Other function symbols can be displayed depending on the configuration: Day operation Automatic switchover by...
- Page 8 Technical data sheet 1.10-51.110-81-en ® DDC110-L1 .. DDC110-L4 technolon Room Module Device Description Operation DDC110-L4 Display depending on the configuration: Room temperature (actual value) with function symbol ↕ Function symbols Room setpoint with function symbol Digital readout Other function symbols can be displayed depending on the configuration: Day operation Automatic switchover by...
- Page 9 Technical data sheet 1.10-51.110-81-en ® Device Description DDC110-L1 .. DDC110-L4 technolon Room Module ► Switching ventilator speeds on and off The ventilator speeds are automatically switched on and off by the program . If required, the ventilator speeds can be switched by manual control. and the Room Module switches to ventilator mode for manual control.
-
Page 10: Assembly
Technical data sheet 1.10-51.110-81-en ® DDC110-L1 .. DDC110-L4 technolon Room Module Device Description Assembly The assembly may only be carried out by qualified personnel on voltage-fee switched connecting leads . Warning The Room Module can be mounted in the wall or in a flush-mounted box. For rapid and correct measurement of the room temperature, the Room Module is to be assembled in such a way that the airflow of the room is included. - Page 11 Technical data sheet 1.10-51.110-81-en ® Device Description DDC110-L1 .. DDC110-L4 technolon Room Module Attach hood and tighten securing screw For surface-mounted or flush-mounted wiring, the hood and base have labelled housing parts that can be broken out depending on the cable leads. Furthermore, pluggable hood inserts are a part of the delivery which can be exchanged for the standard inserts : Note...
-
Page 12: Installation
Technical data sheet 1.10-51.110-81-en ® DDC110-L1 .. DDC110-L4 technolon Room Module Device Description Installation The electrical installation and the Room Module connection may only be carried out by qualified personnel. Warning This must be done in accordance with the VDE regulations and local specifications. Connection DDC110-L..
