Issue 2017-09-13
Product Description

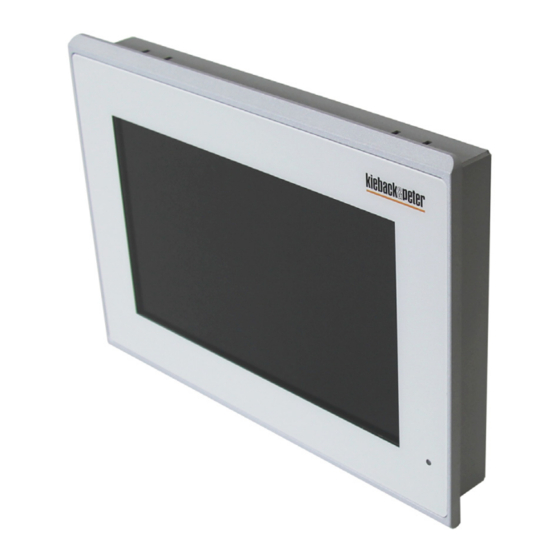

TPC70Display and Operator Panel
Application
The TPC70 is a remote display and operator panel. It has a
color TFT touchscreen with a screen size of 7" / 17,8 cm.
The TPC70 can operate a DDC4020e or DDC4040e
automation station.
The TPC70 is equipped with an integrated Ethernet interface
for communication.
The TPC70 is suitable for installation in the front panel.
Configuration is available in two languages (German,
English).
User guide is available in 16 languages (Bulgarian, Czech,
Dutch, English, French, German, Hungarian, Italian, Lithu-
anian, Latvian, Polish, Romanian, Russian, Spanish,
Swedish and Chinese).
Content
Important Information Regarding Product Safety ..................................................................................................2
Item........................................................................................................................................................................3
Technical Data.....................................................................................................................................................3
Accessories (included in delivery) .......................................................................................................................3
Accessories (not included in delivery) .................................................................................................................3
Compatibility ........................................................................................................................................................3
Dimensions ..........................................................................................................................................................4
Front Panel Cutout...............................................................................................................................................4
Connection...........................................................................................................................................................4
Mounting ................................................................................................................................................................5
Installation..............................................................................................................................................................6
Updating the Software and Calibrating the Touch Panel.......................................................................................8
Änderungen vorbehalten - Contents subject to change - Sous réserve de modifications - Reservado el derecho a modificación - Wijzigingen
voorbehouden - Con riserva di modifiche - Innehåll som skall ändras - Zmeny vyhradené - Změny vyhrazeny - Zmiany zastrzeżone - Возможны
изменения - A változtatások jogát fenntartjuk -
Kieback&Peter GmbH & Co. KG
Tempelhofer Weg 50, 12347 Berlin/Germany
Telefon: +49 30 60095-0, Telefax: +49 30 60095-164
www.kieback-peter.de, info@kieback-peter.com
Datasheet 2.60-10.070-01-EN
TPC70
Page
A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kieback&Peter TPC70
Summary of Contents for Kieback&Peter TPC70
- Page 1 TPC70 TPC70Display and Operator Panel Application The TPC70 is a remote display and operator panel. It has a color TFT touchscreen with a screen size of 7″ / 17,8 cm. The TPC70 can operate a DDC4020e or DDC4040e automation station.
- Page 2 Important Information Regarding Product Safety Safety Instructions This data sheet contains information on installing and commissioning the product "TPC70". Each person who carries out work on this product must have read and understood this data sheet. If you have any questions that are not resolved by this data sheet, you can obtain further information from the supplier or manufacturer.
- Page 3 Accessories (not included in delivery) HW-103460 DC 24 V, 25 W power adapter USBSTICK-DDC-MINI USB flash drive for updates Compatibility The following items can be used with the TPC70: ■ DDC4020e as of version 1.16 ■ DDC4040e as of version 1.16 ■...
- Page 4 Only a part of the screen is used for display (black bars right and left) when using devices DDC4200e, DDC4400e and DDC4002e. Dimensions 202,0 190,0 23,0 15,0 Front Panel Cutout A recess with the following dimensions is needed in the switch cabinet to take on the TPC70: ± 0,2 192,0 Connection 12V=/24V= RJ45 Page 4 / 8...
- Page 5 Contact with live parts of electrical domestic installation can cause death due to electric shock. Mounting/removal may only be carried out when power is switched off. The TPC70 can be mounted in the switch cabinet with four mounting brackets. Page 5 / 8...
- Page 6 ■ Display resolution NOTE You can go back to the TPC70 configuration level anytime by disconnecting from the network (pulling the network connector). LED functions The LED on the front of the TPC70 shows the DDC alarm state as follows: ■...
- Page 7 ■ [ ] request the optimum dialog style from the BMS (WVGA or QVGA) NOTE If a graphic is set as the screensaver for the automation station, the TPC70 will use the same graphic as screensaver. Page 7 / 8...
- Page 8 The update will restore theTPC70 to factory settings. If necessary, make a note of the configuration before proceeding with the update. The TPC70 firmware is part of the DDC4000e update as of version 1.16. To update the TPC70, use the files "ST4K" and "UPDATE": ►...
