This glass-filled Noryl fully automatic control valve is designed as the primary control center to direct and regulate all cycles
1
of a water softener or filter. When the Triton is set up as a softener, the Triton can be set to perform down flow or up flow
regeneration. When the Triton is set up as a filter, the Triton can be set to perform down flow regeneration or simply backwash.
The Triton can be set to regenerate on demand (consumption of a predetermined amount of water) and/or as a time clock (passage
of a particular number of days). The Triton can be set so that a softener can meet the NSF International efficiency rating.
The Triton is compatible with a variety of regenerants and resin cleaners. The Triton is capable of routing the flow of water
in the necessary paths to regenerate or backwash water treatment systems. The injector regulates the flow of brine or other
regenerants. The Triton regulates the flow rates for backwashing, rinsing, and the replenishing of treated water into a regenerant
tank, when applicable.
The Triton is designed to deliver high service (27 gpm @ 15 psig) and backwash (27 gpm @ 25 psig) flow rates when the bypass
has straight fittings. The Triton uses no traditional fasteners (e.g. screws), instead clips, threaded caps and nuts and snap type
latches are used. Caps and nuts only need to be firmly hand tightened because radial seals are used. Tools required to service the
valve include one small blade screw driver, one large blade screw driver, pliers and a pair of hands. A plastic wrench is available
which eliminates the need for screwdrivers and pliers. Disassembly for servicing takes much less time than comparable products
currently on the market. Triton installation is made easy because the distributor tube can be cut ½" above to ½" below the top
of tank thread. The distributor tube is held in place by an o-ring seal and the Triton also has a bayonet lock feature for upper
distributor baskets.
The transformer power pack comes with a 15 foot power cord and is designed for use with the Triton. The transformer power pack
is for dry location use only. The Triton remembers all settings for two hours if the power goes out. After two hours, the only item
that needs to be reset is the time of day, all other values are permanently stored in the nonvolatile memory. The Triton does not
need batteries.
Table 2 shows the order of the cycles when the valve is set up as a softener. When the Triton is used as a down flow softener,
two backwashes always occur.
Noryl is a trademark of General Electric.
1

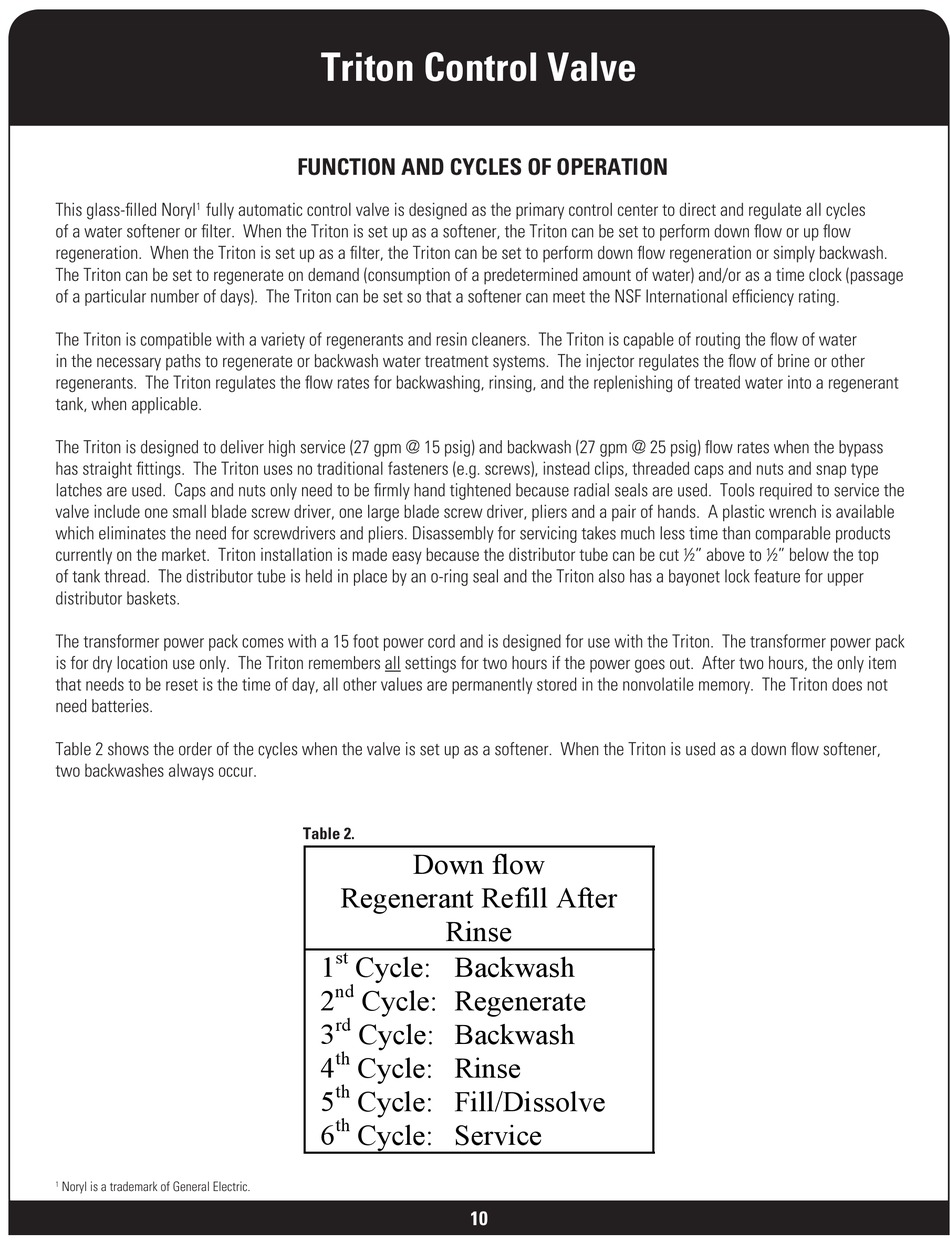

Triton Control Valve
FUNCTION AND CYCLES OF OPERATION
Table 2.
 
  


  

  

  

  

  

  
