MERLYN 8 Series Quick Start Manual

Bifold door/shower wall
Hide thumbs Also See for 8 Series:

Advertisement

Quick Links

Download this manual

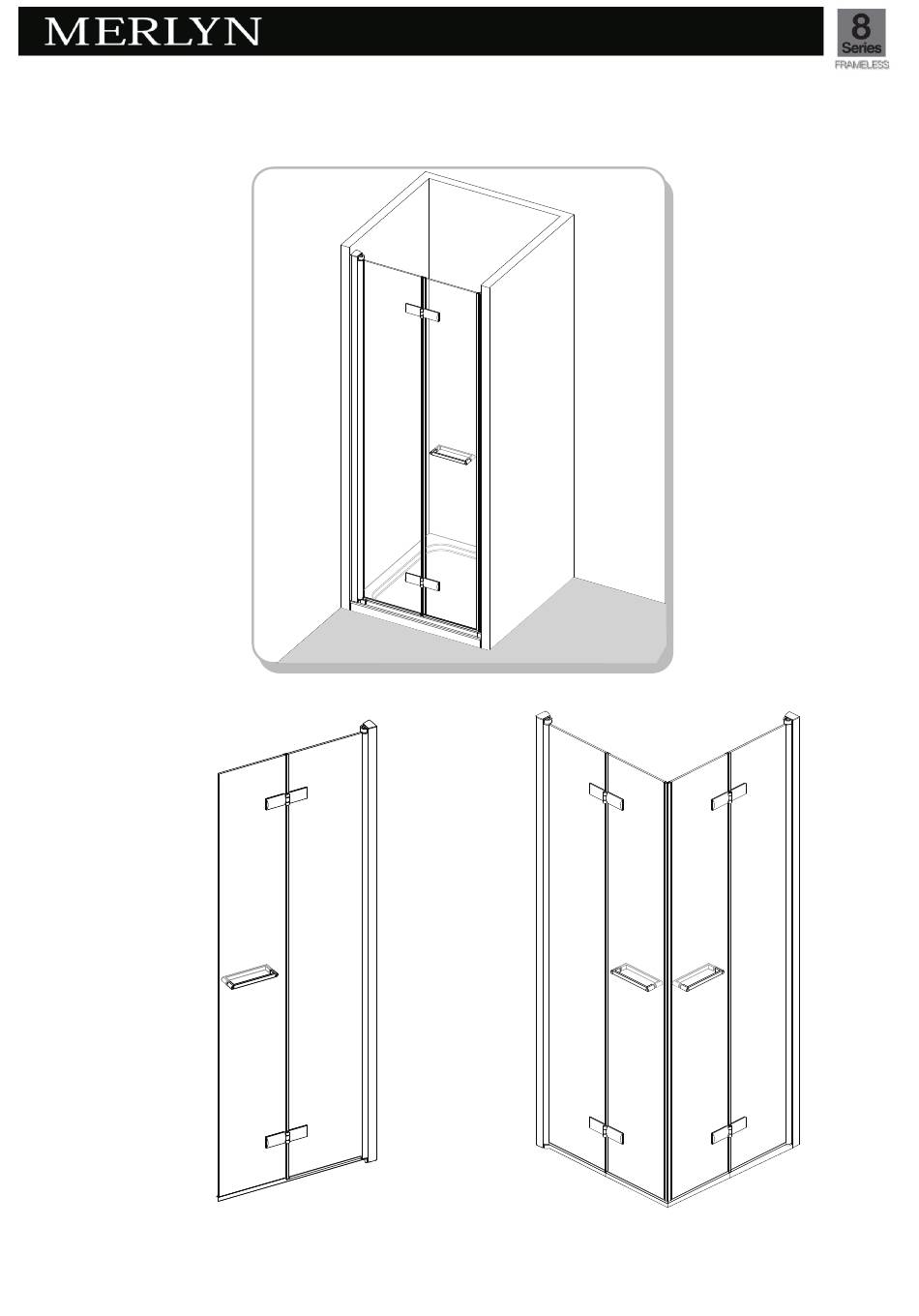

INSTALLATION GUIDE
Series 8 Bifold door/Shower wall
Bifold Door
Shower wall
Corner Door
NOTE: When the products is being used as a Bifold in a recess or with a side panel it can be
used with or without a shower tray as it come with a bottom optional frame section.
We do not recommend using the door on a shower tray when used as a shower wall or corner
door as water tightness cannot be guaranteed as there is no bottom frame available.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 8 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MERLYN 8 Series

Summary of Contents for MERLYN 8 Series

  • Page 1 INSTALLATION GUIDE Series 8 Bifold door/Shower wall Bifold Door Shower wall Corner Door NOTE: When the products is being used as a Bifold in a recess or with a side panel it can be used with or without a shower tray as it come with a bottom optional frame section. We do not recommend using the door on a shower tray when used as a shower wall or corner door as water tightness cannot be guaranteed as there is no bottom frame available.
  • Page 2 INSTALLATION GUIDE IMPORTANT Thank you for choosing Merlyn.Please familiarise yoursel DO NOT attempt to install the product unless you can with the fitting instructions before commencing fitting. tick ALL 4 boxes as satisfactory. 1. Check that you have the tools required.
  • Page 3 INSTALLATION GUIDE Part No. Part No. Closing post cover cap L/R M7120 2YS51 Flat head screw ST4x30 M7121 Magnet profile universal cover cap M7116 Handle M7107/M7108 M7111 Magnet seal Bottom seal /M7109 M7118 Moving panel A Luna rail end cap hinged side L/R Moving door upright water seal M7110 M7103...

  • Page 4: Tools Required

    INSTALLATION GUIDE Fixing kit components Ø3mm Ø3mm 4x30mm 4x12mm M7020 2SY51x8 A2401201x6 B08070x8 M7124x3 M7123x3 B08092x1 M7121x1 M7119x2 M7017x2 M7120x2 M7118x2 B08068x1 M7116x1 M7115x8 Tools required...
  • Page 5 INSTALLATION GUIDE PROCEDURE TRAY MUST BE LEVEL IN ALL DIRECTIONS! Ensure the shower tray is level in all directions and is properly sealed to the wall. The wall must be tiled down to the top edge of the tray. Do not angle out bottom tile. level 100 ％...
  • Page 6 INSTALLATION GUIDE The door is set up as left hand, to reverse for right hand follow steps below First loosen the top bracket and remove the profile and bracket assembly. Then remove parts M7024 & M7025. Note M7025 with V should always be on the bottom. Remove M7024 Remove bracket and profile...
  • Page 7 INSTALLATION GUIDE 0-20mm Max INSIDE INSIDE M7020 NOTE: Make sure the cutout in the Use spacer provided to set top and bottom bracket faces in. the gap under the glass Drill three holes on the inside of the wall profile and fix using screws A2401201 M7110...
  • Page 8 INSTALLATION GUIDE End of the bottom Make sure the seal should be flush Cut excess only angled fin is to with the outside face from the hinged the inside of the upright seal. side of both seals. M7107 Add dab of silicone.
  • Page 9 INSTALLATION GUIDE Place Luna rail into closing side (1) first, then fit hinged side foot plate (2). M7118 M7119 WARNING - The bottom frame can only be used when the product is fitted as a Bifold in a recess or with a side panel.
  • Page 10 INSTALLATION GUIDE Shower wall Bifold SEALING INSIDE Seal top to bottom on the INSIDE between the wall 24 h. profile and the wall . Note: Do not apply sealant on the inside of the tray. SEALING OUTSIDE Seal only along bottom on the OUTSIDE between glass / rail / profile and the tray...
  • Page 11 INSTALLATION GUIDE Magnetic Side Central Hinge End of the bottom Pivoting Side seal should be flush Cut excess only with the outside face from the hinged of the upright seal. side of both seals. Add dab of silicone. NOTE: On the bottom seal, ensure the angled fin is to the inside.
  • Page 12 INSTALLATION GUIDE SEALING INSIDE Seal top to bottom on the INSIDE between the wall 24 h. profile and the wall . Note: Do not apply sealant on the inside of the tray. SEALING OUTSIDE Seal only along bottom on the OUTSIDE between glass / rail / profile and the tray...
