AquaMedic Qube control Operation Manual page 5

In purchasing this Qube control, you have selected a top quality product. It has been specifically designed for
aquarium use and has been tested by experts.
Programmable 2-channel light control (0 - 10 V) for Aqua Medic Qube 50 and Qube 50 plant
1. Technical Data
- 24 V safety voltage
- Dimensions: 7.4 x 7.4 x 1.5 cm
2. Unpacking
On unpacking, please check the light control immediately for any damage. In case of any problems, please
contact your dealer directly.
3. Included in shipment
Qube control
•
Remote control
•
24 V power cable
•
4. Installation and programming

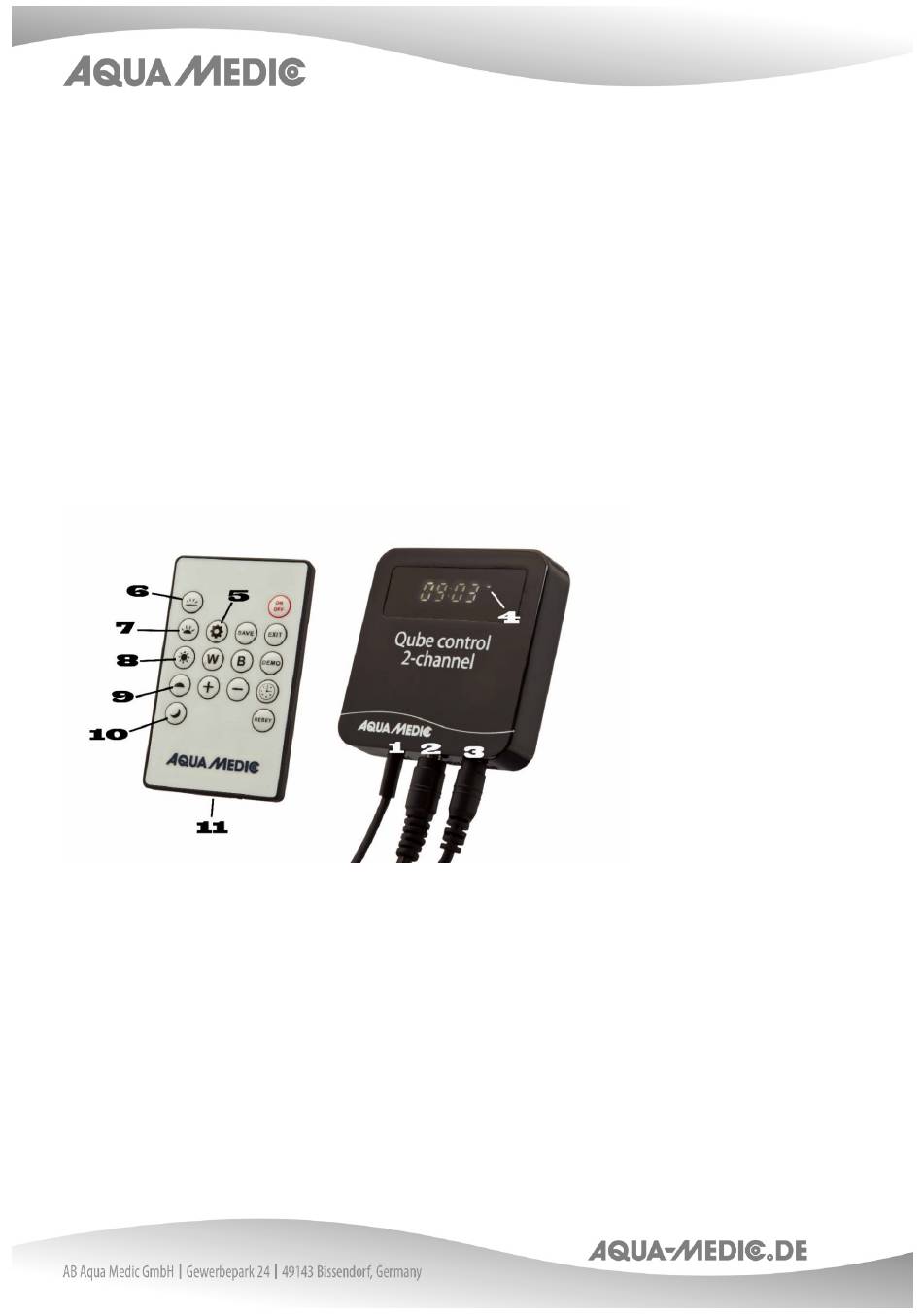

Fig. 1: Qube control and remote control
1. Connection for control cable 0 – 10 V
2. Connection for power cable to the Qube
3. Connection for power supply
4. Program's symbol
5. Adjust setting
6. Twilight phase
7. Sunrise
8. Daylight phase
9. Sunset
10. Moonlight
11. Removable battery compartment (rear)
