Intellinet 505888 Quick Install Manual

Gigabit sata nas
Hide thumbs Also See for 505888:

Advertisement

Quick Links

Download this manual See also: User Manual

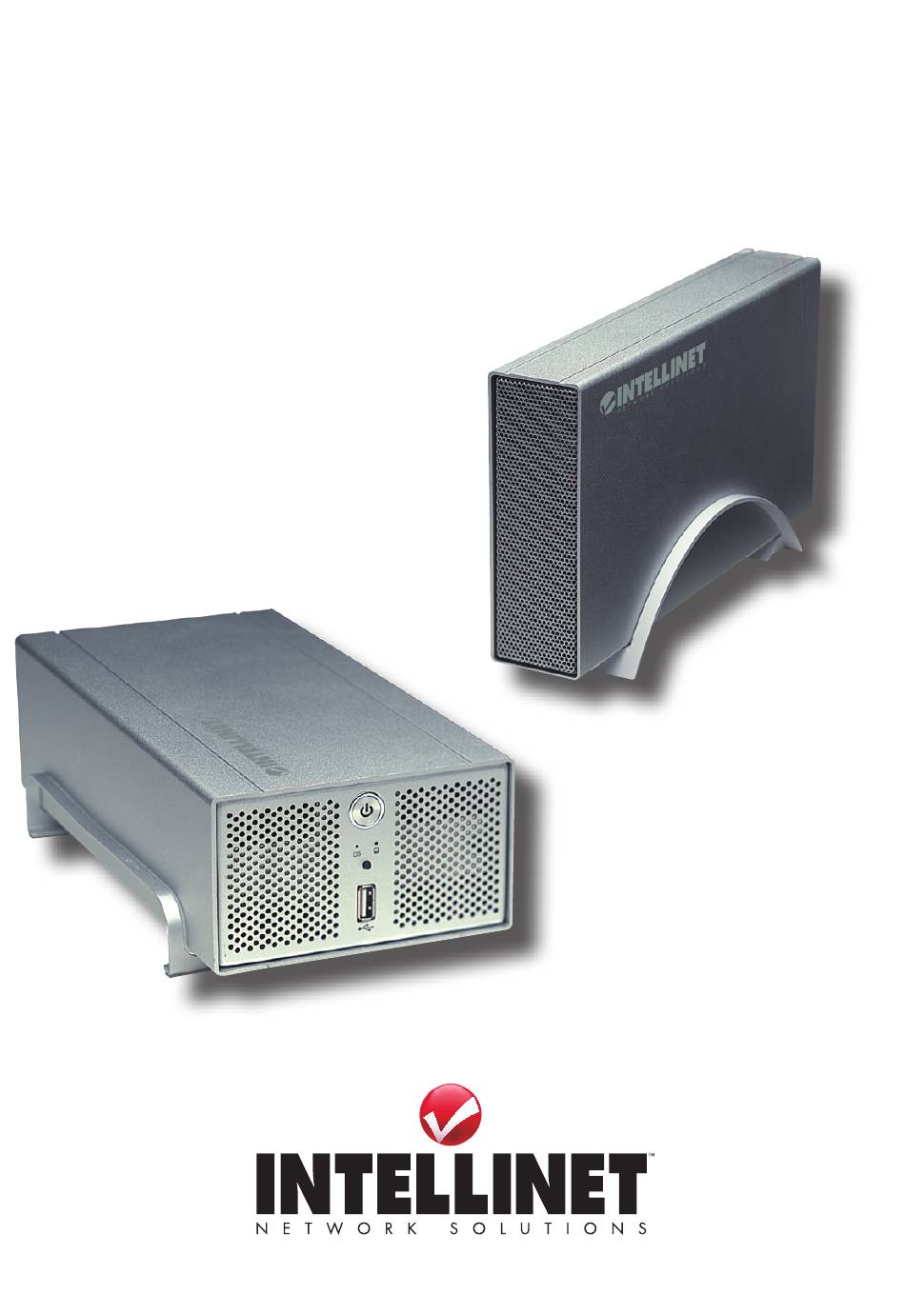

GiGabit
Sata NaS
quick
iNStall
Guide
Models 505888
& 505895
Model 505888: 1.5 TB
Model 505895: 3 TB
INT-505888/505895-QIG-0110-01

Advertisement

loading
Need help?

Need help?

Do you have a question about the 505888 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intellinet 505888

Summary of Contents for Intellinet 505888

  • Page 1 GiGabit Sata NaS quick iNStall Guide Models 505888 & 505895 Model 505888: 1.5 TB Model 505895: 3 TB INT-505888/505895-QIG-0110-01...
  • Page 3 Thank you for purchasing the INTELLINET NETWORK SOLUTIONS ™ Gigabit SATA NAS, Model 505888 (1.5 TB) or Model 505895 (3 TB). This quick install guide presents the rudimentary steps required to set up and operate this network-attached storage (NAS) device. For more...

  • Page 4: Hardware Installation

    Model 505888 / 1.5 TB Front Panel Two LEDs are positioned behind the front- panel grille: Blue indicates power is on; red indicates data access. NOTE: This LEDs unit doesn’t feature an On/Off switch. To (behind grille) turn it off, simply remove the power supply; or when using the network drive, go to the Turn Off Server screen in the System section and click “Turn off.”...
  • Page 5 Hard Drive Installation CAUTION! H ANdle THe devICe CArefUlly As sOme edges mAy be sHArp Or rOUgH 1. Remove the 3 screws 2. Push the inner from the chassis bottom. enclosure out to (Disengage the stand if separate it from it’s attached.) the outer chassis.
  • Page 6 Model 505895 / 3 TB Front Panel The buttons and jacks on the front panel are detailed below from top to bottom. Power switch — Press on or off; it lights blue when on. NOTE: It takes about a minute for the system to boot once the unit is on.
  • Page 7 Reset button — When the network drive is powered up and ready, press and release for a software reset; or press and hold it for 5 seconds before releasing to reset all network drive settings to factory defaults (which will erase all user accounts and groups). USB device port —...

  • Page 8: Quick Installation

    2. Connect the Ethernet cable from your network router or switch to the device. 3. Model 505888: When everything is connected, turn the NAS on by connecting the power adapter. Give it about two minutes to boot up. Model 505895: When everything is connected, turn the NAS on by pressing the Power switch.

  • Page 9: Power On/Off Procedures

    5. Access the Web configuration interface via your Web browser, then refer to Section 4: Web Configuration in the user manual. 6. Model 505888: Go to the Maintenance menu and use the disk utility to format the drive. When only using the NAS as network drive, using EXT2 is recommended;...
  • Page 10 Any loss or corruption of data while using this Gigabit SATA NAS is the sole responsibility of the user, and under no circumstances will INTELLINET NETWORK SOLUTIONS be held liable for compensation or the recovery of this data.
  • Page 12 INTellINeT NeTWoRK solUTIoNs offers a complete line ™ of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
