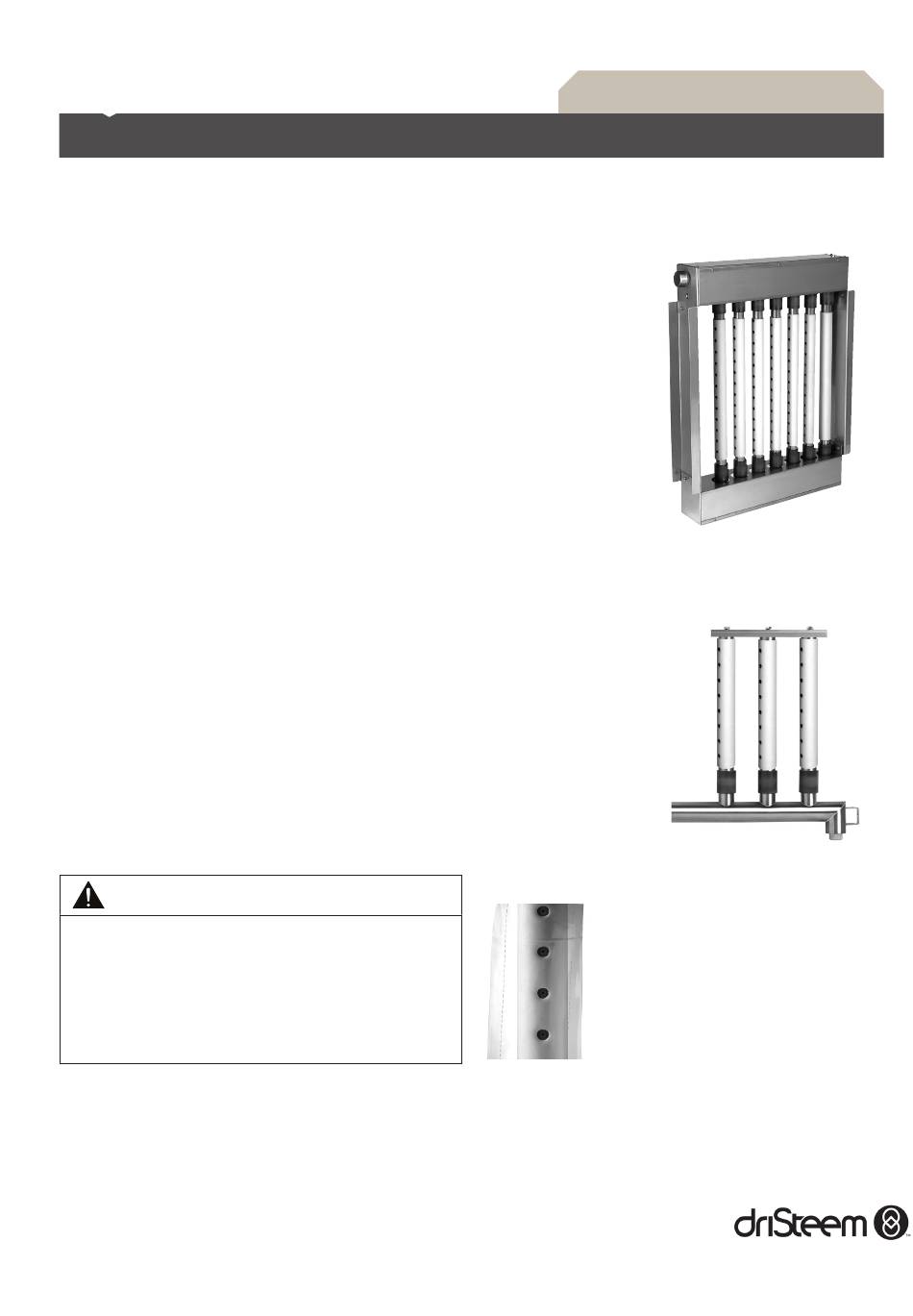

INSTALLATION INSTRUCTIONS
ADDENDUM TO THE ULTRA-SORB MANUAL & RAPID-SORB INSTALLATION INSTRUCTIONS
Unpacking and installation
UNPACKING
• Remove the dispersion assembly from the shipping container; be careful
not to bump or scrape the PVDF insulating material on the dispersion
tubes.
• Some dispersion panels are shipped unassembled by customer request or
by shipping necessity. Do not lay loose insulated dispersion tubes across
or under anything that could compress or damage the insulating material.
Compressed insulating material has a reduced R-value.
• Avoid bumping or snagging the PVDF insulating material. Although PVDF
is robust, rough handling can cause tears, which could negatively impact
performance.
RAPID-SORB INSTALLATION
See the unpacking instructions above and the Rapid-sorb section of your
specific humidifier manual.
After installation and before start-up, remove the clear poly film by tearing it
along the perforation. Do not use a knife or sharp object to remove the poly
film.
ULTRA-SORB INSTALLATION
See the unpacking instructions above and the Ultra-sorb manual shipped
with your dispersion assembly.
After installation and before start-up, remove the clear poly film by tearing it
along the perforation. Do not use a knife or sharp object to remove the poly
film.
CAUTION
The insulated dispersion tubes are sleeved in clear poly film for
protection during processing, shipping, and installation.
To prevent dirty insulating material, leave the clear poly film on until
installation is complete.
Equally important, remove and discard the clear poly film before
start-up by tearing it along the perforations.
Water Treatment Systems
Insulated Tube Option
Ultra-sorb
dispersion panel
Rapid-sorb
dispersion
®
tube system
steam
®
