DriSteem Rapid-sorb Quick Start Manual

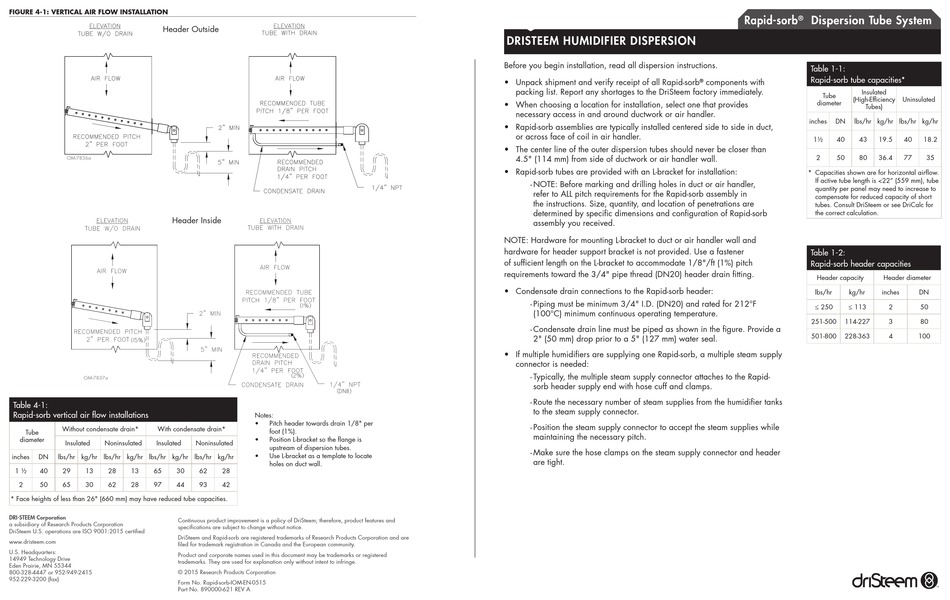

FIGURE 4-1: VERTICAL AIR FLOW INSTALLATION
Header Outside
OM-7836a
Header Inside

OM-7837a
Table 4-1:

Rapid-sorb vertical air flow installations

Without condensate drain* With condensate drain*
Tube
diameter
Insulated Noninsulated Insulated
inches DN lbs/hr kg/hr lbs/hr kg/hr lbs/hr kg/hr lbs/hr kg/hr
1 ½ 40 29 13 28 13 65 30
2 50 65 30 62 28 97 44
* Face heights of less than 26" (660 mm) may have reduced tube capacities.
DRI-STEEM Corporation
Continuous product improvement is a policy of DriSteem; therefore, product features and
a subsidiary of Research Products Corporation
specifications are subject to change without notice.
DriSteem U.S. operations are ISO 9001:2015 certified
DriSteem and Rapid-sorb are registered trademarks of Research Products Corporation and are
www.dristeem.com
filed for trademark registration in Canada and the European community.
U.S. Headquarters:
Product and corporate names used in this document may be trademarks or registered
14949 Technology Drive
trademarks. They are used for explanation only without intent to infringe.
Eden Prairie, MN 55344
© 2015 Research Products Corporation
800-328-4447 or 952-949-2415
952-229-3200 (fax)
Form No. Rapid-sorb-IOM-EN-0515
Part No. 890000-621 REV A



Notes:
• Pitch header towards drain 1/8" per
foot (1%).
• Position L-bracket so the flange is
Noninsulated
upstream of dispersion tubes.
• Use L-bracket as a template to locate
holes on duct wall.
62 28
93 42
DRISTEEM HUMIDIFIER DISPERSION

Before you begin installation, read all dispersion instructions.

• Unpack shipment and verify receipt of all Rapid-sorb
packing list. Report any shortages to the DriSteem factory immediately.
• When choosing a location for installation, select one that provides
necessary access in and around ductwork or air handler.
• Rapid-sorb assemblies are typically installed centered side to side in duct,
or across face of coil in air handler.
• The center line of the outer dispersion tubes should never be closer than
4.5" (114 mm) from side of ductwork or air handler wall.
• Rapid-sorb tubes are provided with an L-bracket for installation:
- NOTE: Before marking and drilling holes in duct or air handler,
refer to ALL pitch requirements for the Rapid-sorb assembly in
the instructions. Size, quantity, and location of penetrations are
determined by specific dimensions and configuration of Rapid-sorb
assembly you received.
NOTE: Hardware for mounting L-bracket to duct or air handler wall and
hardware for header support bracket is not provided. Use a fastener
of sufficient length on the L-bracket to accommodate 1/8"/ft (1%) pitch
requirements toward the 3/4" pipe thread (DN20) header drain fitting.
• Condensate drain connections to the Rapid-sorb header:
- Piping must be minimum 3/4" I.D. (DN20) and rated for 212°F
(100°C) minimum continuous operating temperature.
- Condensate drain line must be piped as shown in the figure. Provide a
2" (50 mm) drop prior to a 5" (127 mm) water seal.
• If multiple humidifiers are supplying one Rapid-sorb, a multiple steam supply
connector is needed:
- Typically, the multiple steam supply connector attaches to the Rapid-
sorb header supply end with hose cuff and clamps.
- Route the necessary number of steam supplies from the humidifier tanks
to the steam supply connector.
- Position the steam supply connector to accept the steam supplies while
maintaining the necessary pitch.
- Make sure the hose clamps on the steam supply connector and header
are tight.
Rapid-sorb Dispersion Tube System
®
Table 1-1:

Rapid-sorb tube capacities*

® components with
Insulated
Tube
(High-Efficiency
diameter
Tubes)
inches DN lbs/hr kg/hr lbs/hr kg/hr
1½ 40 43 19.5
2 50 80 36.4
* Capacities shown are for horizontal airflow.
If active tube length is <22" (559 mm), tube
quantity per panel may need to increase to
compensate for reduced capacity of short
tubes. Consult DriSteem or see DriCalc for
the correct calculation.
Table 1-2:

Rapid-sorb header capacities

Header capacity
lbs/hr kg/hr
≤ 250 ≤ 113
251-500 114-227
501-800 228-363
Uninsulated
40 18.2
77 35
Header diameter
inches DN
2 50
3 80
4 100
