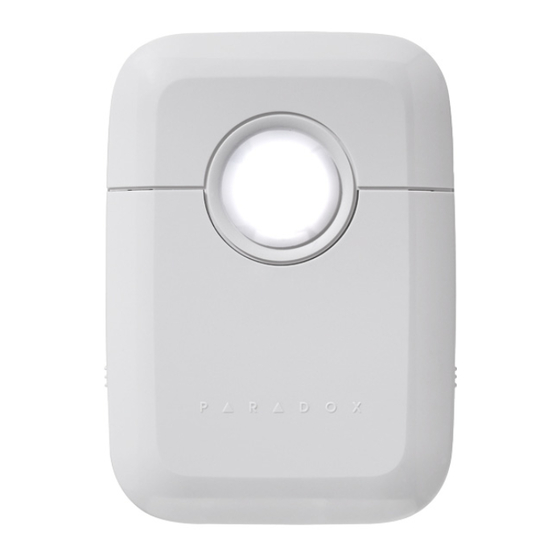

SR120: Indoor Wireless Siren w/Built-In Strobe Light
Description
The SR120 is a stand-alone, fully supervised wireless siren with built-in
strobe light and wireless transceiver.
The SR120 operates using three size "C" alkaline batteries. With normal
use, the SR120 will function up to three years without the need to
replace the batteries.
The SR120 uses 2-way wireless communication, which provides
continuous supervision between the panel and siren with fast response
to alarm signals within 4 seconds.
Overview
1
2
3
4
5
6
SR120-EI02 12/2012
Required/Optional Items:
•
Mounting hardware
•
3 type "C" alkaline batteries
Compatibility:
•
MG/SP series v4.0 or higher (except SP4000)
•
MG6130/MG6160 v3.0 or higher
•
RTX3 v1.5 or higher
•
K32LCD v1.3 or higher
•
K32LX v1.0 or higher
•
WinLoad v4.7 (with InField Upgrade Software v2.3) or higher
•
For latest updates visit paradox.com
Features
•
Built-in transceiver (433MHz or 868 MHz)
•
Siren that reaches 100dB or more (see 1 below)
•
Integrated strobe light (see B below)
•
Fast alarm response time (within 4 seconds)
•
2.5 hour alarm display (strobe flashes every 4 seconds after bell cut-
off )
•
Siren presence supervised by control panel
•
Wall tamper protection against removal of unit from wall (see 3
below)
•
Battery cover tamper protection against cover removal (see 5 below)
•
Assign a total of 4 sirens per control panel (including SR150)
•
Firmware upgradable via 307USB (see 2 below)
•
Siren test mode
1) Siren (100dB or more)
2) Infield firmware upgrade connector
3) Wall tamper switch (detects when unit is removed from wall)
4) Test switch
A
5) Cover tamper switch (detects when battery cover is removed)
6) Battery pack (3 size "C" alkaline batteries)
A)
Antenna
B
B)
Strobe lights (red and white)
C)
Signal strength/RF transmission LED. Refer to LED Feedback
C
on reverse for more information.
D)
Status LED
D
To open the lens cover*:
1) Unlock the battery cover with a screwdriver.
2) Slide the cover open.
3) Open the lens cover as shown.
*Service accessible area only
SR120 V1.0
PARADOX.COM
