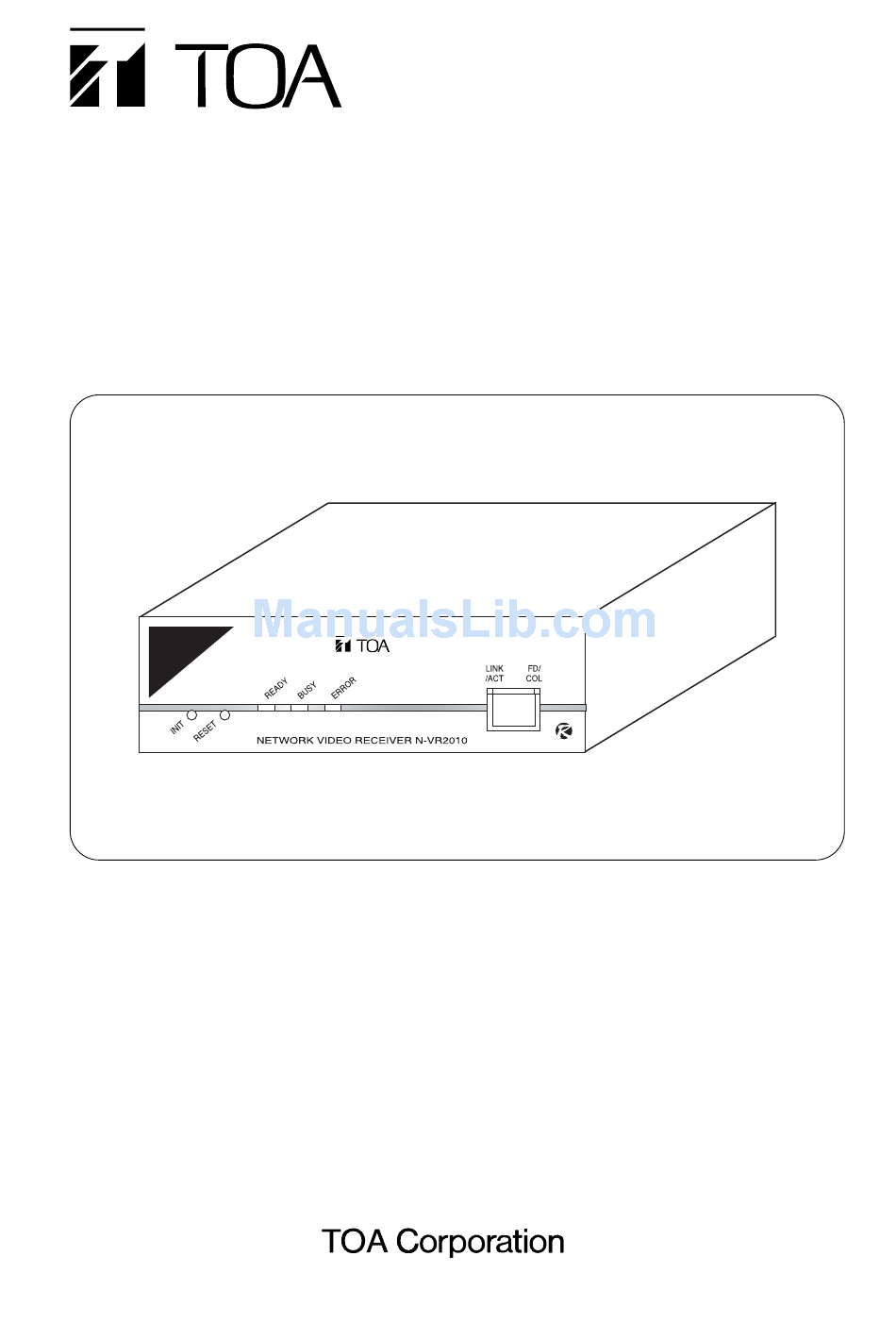

INSTRUCTION MANUAL
NETWORK VIDEO RECEIVER
N-VR2010
10/100M PoE
Thank you for purchasing TOA's Network Video Receiver.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N-VR2010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toa N-VR2010

Summary of Contents for Toa N-VR2010

  • Page 1 INSTRUCTION MANUAL NETWORK VIDEO RECEIVER N-VR2010 10/100M PoE Thank you for purchasing TOA's Network Video Receiver. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. SAFETY PRECAUTIONS 2. LIST OF INCLUDED COMPONENTS AND PARTS 3. GENERAL DESCRIPTION 4. FEATURES 5. HANDLING PRECAUTIONS 6. SYSTEM CONFIGURATION 7. NOMENCLATURE AND FUNCTIONS [ Front ] ... 9 [ Rear ] ... 10 8. CONNECTIONS 8.1.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS • Before installation or use, be sure to carefully read all the instructions in this section for correct and safe operation. • Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or cautions regarding safety.
  • Page 4 WARNING When the Unit is in Use • Should the following irregularity be found during use, immediately switch off the power, disconnect the power supply plug from the AC outlet and contact your nearest TOA dealer. Make no further attempt to operate the unit in this condition as this may cause fire or electric shock.
  • Page 5 CAUTION When Installing the Unit • Never insert nor remove the power supply plug with wet hands, as an electric shock may result. • When unplugging the power supply cord, be sure to grasp the power supply plug; never pull on the cord itself.

  • Page 6: List Of Included Components And Parts

    PoE compatibility in addition to 24V AC or 24V DC operation, permitting simplified wiring work and cable savings during construction by supplying power via the network. The N-VR2010 has a 12V DC power output which supplies power to the equipment such as remote controllers.

  • Page 7: Handling Precautions

    5. HANDLING PRECAUTIONS • Do not give the Receiver a great shock or vibration, as this will damage the Receiver. • It is recommended that the Receiver be always used in locations where the ambient temperature ranges from -0°C to +50°C and humidity levels of less than 90% to ensure that no condensation is formed. •...

  • Page 8: System Configuration

    When using a PoE-compatible hub, the power supply need not be connected to the N-VT2010 Network Video Transmitter, N-VR2010 Network Video Receiver and N-CC2360 Network Color camera. When using a hub not supporting PoE, power must be independently supplied to each device. Connect the AC mains to N-DR2000 Network Video Recorder.

  • Page 9: Nomenclature And Functions [ Front ]

    7. NOMENCLATURE AND FUNCTIONS [Front] (1) Initialization Key [INIT] Initializes the setting contents to default conditions. (2) Reset Key [RESET] Restarts the Receiver. (3) Ready Indicator (Green) Lights continuously while the Receiver is operating. The indicator flashes quickly when the Receiver is set to start mode, and flashes slowly during firmware update.

  • Page 10: [Rear]

    [Rear] (7) Audio Input Terminal (-10 dB, 10 kΩ, unbalanced type) Receives line level audio signals. (8) Microphone Input Volume Control Adjusts the microphone input level. (9) Microphone Input Terminal (-60 dB, 2.2 kΩ) Inputs signals from the microphone. 9V can be supplied for phantom power supply.

  • Page 11: Connections

    • Connect the 24 V AC or 24 V DC power when not using a PoE-compatible hub since no power is supplied from the hub. • Shielded (STP) network cables must be used with this unit to ensure compliance with EMC standards. Network Video Receiver N-VR2010 VIDEO AUDIO ADJ. MIC IN...

  • Page 12: Monitor Connection

    8.2. Monitor connection Connect the Receiver's video output terminal to the monitor's video input terminal using a coaxial cable (75Ω, BNC). 8.3. Network Connection Connect the Receiver to a hub using a straight cable. Use a null modem cable when connecting the Receiver directly to a PC.

  • Page 13: Serial Port

    Rear VIDEO IN RS-485 DC12 V Remote Controller C-RM500 Both the RTS and CTS pins are internally shorted. ) - AWG22 (0.32 mm Network Video Receiver N-VR2010 VIDEO OUT AUDIO ADJ. MIC IN VIDEO LINE PHANTOM LINE AUDIO CONTACT CONTACT...

  • Page 14: Dip Switch Setting

    8.8. DIP Switch Setting MIC/ LINE PHANTOM AUDIO ADJ 1 2 3 4 1: Selects either microphone level signal or line level signal as the audio input. Set to "MIC" when connecting a microphone, and to "LINE" when connecting other devices. ("LINE" is the default.) 2: Supply voltage is 9 V DC.

  • Page 15: Specifications

    11. SPECIFICATIONS [N-VR2010 CU] Power Source Power Consumption Power Terminal Power Output Video Output Audio Input Audio Output Audio Frequency Response Contact Input Contact Output Serial Port Network Network I/F Network Protocol Video Compression/Resolution Frame Rate Audio Compression/Decompression Sub-band ADPCM, PCM (non-compression)
  • Page 16 [N-VR2010 PL] Power Source Power Consumption Power Terminal Power Output Video Output Audio Input Audio Output Audio Frequency Response Contact Input Contact Output Serial Port Network Network I/F Network Protocol Video Compression/Resolution Frame Rate Audio Compression/Decompression Sub-band ADPCM, PCM (non-compression)
