E2219HN
User's Guide

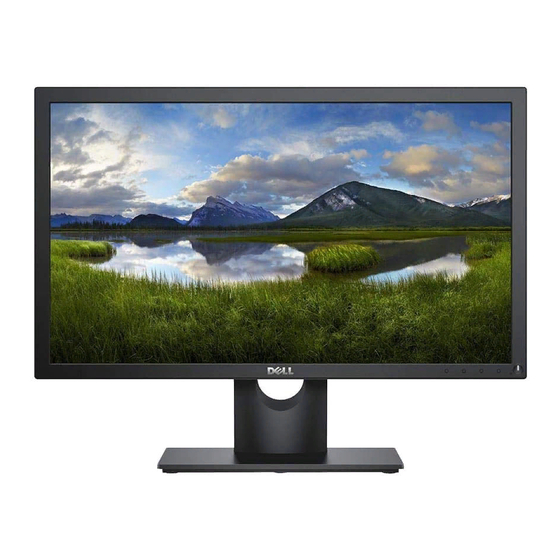

Monitor Model: E2219HN
Regulatory Model: E2219HNo

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E2219HN and is the answer not in the manual?

Questions and answers

Related Manuals for Dell E2219HN

Summary of Contents for Dell E2219HN

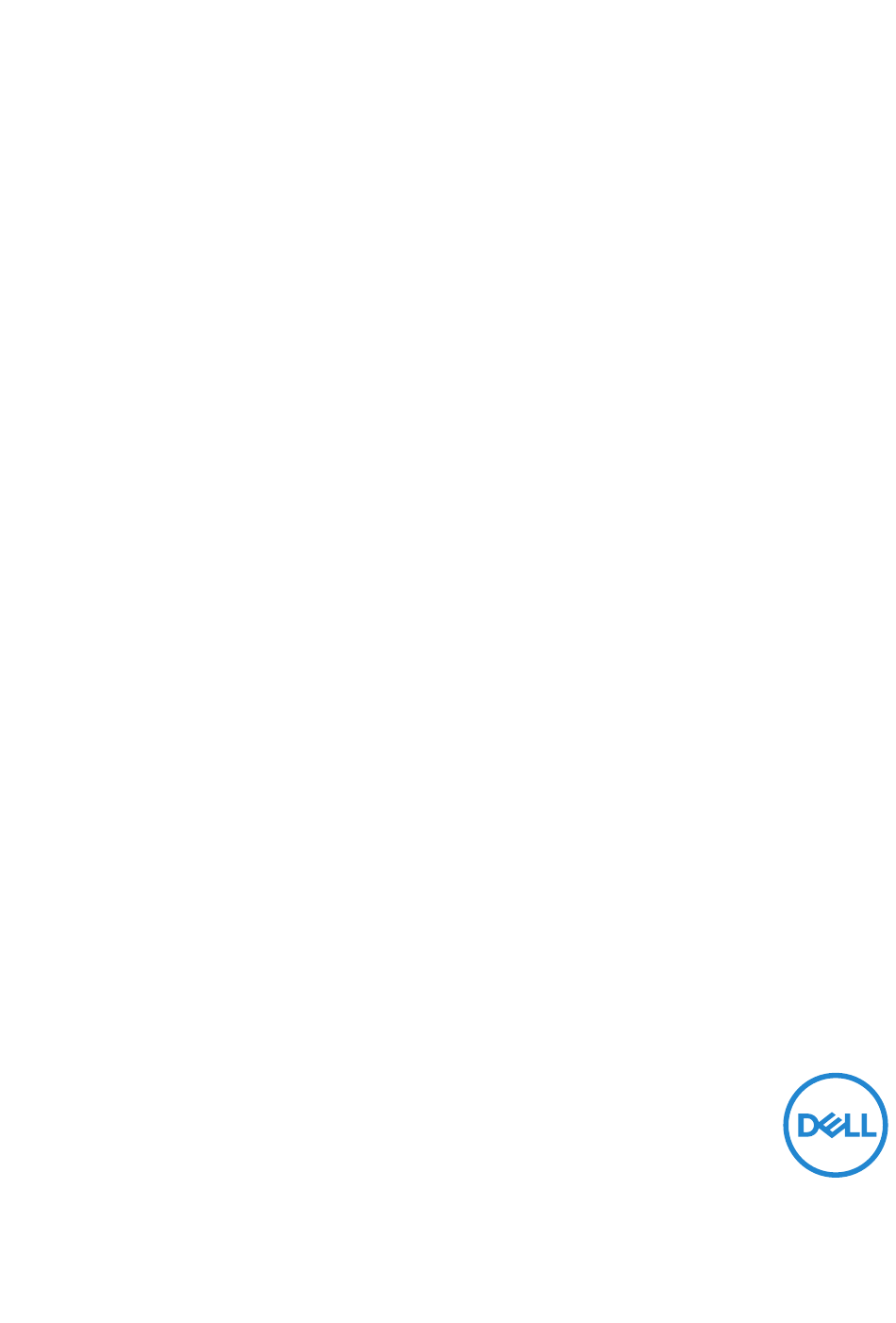

  • Page 1 E2219HN User’s Guide Monitor Model: E2219HN Regulatory Model: E2219HNo...
  • Page 2 WARNING: A WARNING indicates a potential for property damage, personal injury, or death. Copyright © 2017 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

  • Page 3: Table Of Contents

    Contents About Your Monitor ......5 Package Contents ......5 Product Features .
  • Page 4 FCC Notices (U.S. Only) and Other Regulatory Information ..45 Contact Dell ....... 45...

  • Page 5: About Your Monitor

    Package Contents Your monitor ships with all the components shown below Ensure that you have received all the components and Contact Dell if anything is missing NOTE: Some items may be optional and may not ship with your monitor Some features or media may not be available in certain countries •...

  • Page 6: Product Features

    The Dell E2219HN flat-panel display has an active matrix, Thin-Film Transistor, Liquid Crystal Display and LED backlight The monitor’s features include: • E2219HN: 54 61 cm (21 5 inches) diagonal viewable image size, 1920 x 1080 resolution, plus full-screen support for lower resolutions •...

  • Page 7: Identifying Parts And Controls

    Secures monitor with security lock (security lock not included) Barcode serial number label Refer to this label if you need to contact Dell for technical support Cable management slot Use to organize cables by placing them through the slot About Your Monitor...

  • Page 8: Monitor Specifications

    To connect your computer to the monitor using a HDMI cable VGA connector To connect your computer to the monitor using a VGA cable Dell soundbar To attach the optional Dell Soundbar mounting slots Monitor Specifications Flat-Panel Specifications Model number E2219HN...
  • Page 9 Height adjustable stand Tilt -5° to 21° Swivel Pivot Dell Display Manager Compatibility Security Security lock slot (cable lock sold separately) * E2219HN color gamut (typical) is based on CIE1976 (84 %) and CIE1931 (72 %) test standards About Your Monitor │...

  • Page 10: Resolution Specifications

    Model number E2219HN Video display capabilities 480i, 480p, 576i, 576p, 720p, 1080i, 1080p (VGA & HDMI playback) Preset Display Modes The following table lists the preset modes for which Dell guarantees image size and centering: Horizontal Vertical Sync Polarity Pixel Clock...

  • Page 11: Electrical Specifications

    Electrical Specifications Model number E2219HN Video input signals • Analog RGB: 0 7 Volts ± 5 %, 75 ohm input impedance • HDMI , 600 mV for each differential line, 100 ohm input impedance per differential pair Synchronization Separate horizontal and vertical synchronizations, polarity-free...

  • Page 12: Environmental Characteristics

    Environmental Characteristics Model number E2219HN Compliant Standards • RoHS-compliant • TCO-Certified Displays • PVC/BFR/CFR-reduced • Arsenic-Free glass and Mercury-Free for the panel only Temperature • Operating 0 °C to 40 °C (32 °F to 104 °F) • Non-operating Storage: -20 °C to 60 °C (-4 °F to 140 °F) Shipping: -20 °C to 60 °C (-4 °F to 140 °F)
  • Page 13 The OSD will only function in the normal operation mode When any button except power button is pressed in Active-off mode, the following messages will be displayed: Dell E2219HN There is no signal coming from your computer. Press any key on the keyboard or move the mouse to wake it up.
  • Page 14 Pin Assignments VGA connector 8 9 10 11 12 13 14 15 Pin number 15-pin side of the connected signal cable Video-Red Video-Green Video-Blue Self-test GND-R GND-G GND-B DDC +5 V GND-sync DDC data H-sync V-sync DDC clock │ About Your Monitor...
  • Page 15 HDMI connector Pin number 19-pin Side of the Connected Signal Cable TMDS DATA 2+ TMDS DATA 2 SHIELD TMDS DATA 2- TMDS DATA 1+ TMDS DATA 1 SHIELD TMDS DATA 1- TMDS DATA 0+ TMDS DATA 0 SHIELD TMDS DATA 0- TMDS CLOCK TMDS CLOCK SHIELD TMDS CLOCK-...

  • Page 16: Plug And Play Capability

    In almost every case, these fixed pixels are hard to see and do not detract from display quality or usability A display with 1 to 5 fixed pixels is considered normal and within competitive standards For more information, see Dell Support site at: http://www dell com/support/monitors...

  • Page 17: Setting Up The Monitor

    Setting Up the Monitor Attaching the Stand NOTE: The stand base is detached when the monitor is shipped from the factory 1. Assemble the stand riser to stand base a. Place the monitor stand base on a stable table top b.

  • Page 18: Connecting Your Monitor

    Connecting Your Monitor WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions. To connect your monitor to the computer: 1 Turn off your computer and disconnect the power cable 2 Connect the black VGA or HDMI cable to the corresponding video port on the back of your computer Connecting VGA Cable Connecting HDMI Cable...

  • Page 19: Organizing Your Cables

    Organizing Your Cables After attaching all necessary cables to your monitor and computer, (See Connecting Your Monitor for cable attachment), organize all cables as shown above Removing the Monitor Stand NOTE: This is applicable for a monitor with a stand When any other stand is bought, please refer to the respective stand setup guide for the removal instructions 1.

  • Page 20: Wall Mounting (Optional)

    2. Remove the stand assembly to the monitor a. Use a long screwdriver to push the release latch located in a hole just above the stand b. Once the latch is released, remove the base away from the monitor Wall Mounting (Optional) (Screw dimension: M4 x 10 mm) Refer to the instructions that come with the VESA-compatible base mounting kit 1.

  • Page 21: Operating The Monitor

    Operating the Monitor Power On the Monitor Press the button to turn on the monitor Using the Front-Panel Controls Use the keys on the front of the monitor to adjust the image settings Front-Panel Keys Description Use the Preset modes key to choose from a list of preset color modes See Using the OSD Menu Preset modes Use the Brightness / Contrast key to direct access...

  • Page 22: Using The On-Screen Display (Osd) Menu

    OSD menu to disappear 1. Press the button to open the OSD menu and display the main menu Main Menu Dell E2219HN Energy Use Brightness / Contrast Auto Adjust...
  • Page 23 This meter shows the energy level being consumed by the monitor in real time Brightness/ Use the Brightness and Contrast menu to adjust the Contrast Brightness/Contrast Energy Use Dell E2219HN Brightness / Contrast Auto Adjust Input Source Color Display Energy...
  • Page 24 Auto Adjust Use this key to activate automatic setup and adjust menu Dell E2219HN Energy Use Brightness / Contrast Auto Adjust Press to adjust the screen automatically. Input Source Color Display Energy Menu Personalize Others Resolution: 1280x1024, 60Hz Maximum: 1920x1080. 60Hz...
  • Page 25 Input Source Use the Input Source menu to select between different video signals that may be connected to your monitor Dell E2219HN Energy Use Brightness / Contrast Auto Adjust HDMI Input Source Auto Select Reset Input Source Color Display Energy...
  • Page 26 ComfortView: Decreases the level of blue light emitted from the screen to make viewing more comfortable for your eyes Notes on DELL low blue light model • Optimize eye comfort with a flicker-free screen • The possible long-term effects of blue light emission...
  • Page 27 YPbPr: Select this option if your DVD player supports only YPbPr output Reset Color Resets your monitor’s color settings to the factory defaults Display Use the Display menu to adjust the monitor’s display settings Dell E2219HN Energy Use Aspect Ratio Wide 16:9 Brightness / Contrast Horizontal Position...
  • Page 28 VGA input Response Time Allows you to set the Response Time to Normal or Fast ResetDisplay Select this option to restore default display settings Energy Dell E2219HN Energy Use Power Button LED On During Active Brightness / Contrast Reset Energy...
  • Page 29 Menu Select this option to adjust the settings of the OSD such as, the languages of the OSD, the amount of time the menu remains on screen, and so on Dell E2219HN Energy Use Brightness / Contrast Language English Auto Adjust...
  • Page 30 Personalize User can select from “Preset Modes”, “Brightness/Contrast”, “Auto Adjust”, “Input Source”, “Aspect Ratio” and set as shortcut key Dell E2219HN Energy Use Brightness / Contrast Shortcut Key 1 Preset Modes Auto Adjust Shortcut Key 2 Brightness/Contrast Input Source Reset Personalization...
  • Page 31 Disable: Disables the DDC/CI option and the following message appears on the screen Dell E2219HN The function of adjusting display setting using PC application will be disabled. Do you wish to disable DDC/CI function?
  • Page 32 OSD Messages When the monitor does not support a particular resolution mode you will see the following message: Dell E2219HN The current input timing is not supported by the monitor display. Please change your input timing to 1920 x 1080, 60Hz or any other monitor listed timing as per the monitor specifications.
  • Page 33 Dell E2219HN There is no signal coming from your computer. Press any key on the keyboard or move the mouse to wake it up. If there is no display, press the monitor button now to select the correct input source on the On-Screen-Display menu.

  • Page 34: Setting The Maximum Resolution

    Please choose the scenario below that best describes the computer system you are using, and follow the provided 1: If you have a Dell desktop or a Dell portable computer with Internet access 2: If you have a non Dell desktop, portable computer, or graphics card │...
  • Page 35 2. After installing the drivers for your graphics adapter, attempt to set the resolution to 1920 x 1080 again NOTE: If you are unable to set the resolution to 1920 x 1080, please contact Dell to inquire about a graphics adapter that supports these resolutions If you have a Dell desktop or a Dell portable computer with Internet access In Windows Vista, Windows 7, Windows 8 or Windows 8.1:...

  • Page 36: Using The Tilt

    Using the Tilt Tilt With the stand assembly, you can tilt the monitor for the most comfortable viewing angle 21° typical (maximum 22°) 5° typical (maximum 6°) NOTE: The stand base is detached when the monitor is shipped from the factory │...

  • Page 37: Troubleshooting

    LED remains white Also, depending upon the selected input, one of the dialogs shown below will continuously scroll through the screen Dell E2219HN No VGA Cable The display will go into Power Save Mode in 4 minutes.

  • Page 38: Built-In Diagnostics

    Built-in Diagnostics Your monitor has a built-in diagnostic tool that helps you determine if the screen abnormality you are experiencing is an inherent problem with your monitor, or with your computer and video card NOTE: You can run the built-in diagnostics only when the video cable is unplugged and the monitor is in self-test mode To run the built-in diagnostics: 1.

  • Page 39: Common Problems

    Common Problems The following table contains general information about common monitor problems you might encounter and the possible solutions Common Symptoms What You Possible Solutions Experience No Video/Power LED No picture • Ensure that the video cable connecting the monitor and the computer is properly connected and secure •...
  • Page 40 • Cycle power on-off spots • Pixel that is permanently off is a natural defect that can occur in LCD technology For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at: http://www.dell.com/support/ monitors Stuck-on Pixels LCD screen has •...
  • Page 41 • Restart the computer in the safe mode Safety-Related Issues Visible signs of • Do not perform any troubleshooting smoke or sparks steps • Contact Dell immediately Intermittent Problems Monitor • Ensure that the video cable connecting malfunctions on the monitor to the computer is &...

  • Page 42: Product-Specific Problems

    Product-Specific Problems Specific Symptoms What You Possible Solutions Experience Screen image is too Image is centered • Check the Aspect Ratio setting in the small on screen, but Display OSD does not fill entire • Reset the monitor to Factory Settings viewing area Cannot adjust the OSD does not...

  • Page 43: Dell Soundbar Problems

    Dell Soundbar Problems Common Symptoms What You Possible Solutions Experience No sound for system No power to • Turn the Power/Volume knob on the where the Soundbar Soundbar - the Soundbar clockwise to the middle draws power from an power indicator is position;...
  • Page 44 Distorted Sound Computer’s sound • Clear any obstructions between the Soundbar and the user card is used as the • Confirm that the audio line-in plug is audio source completely inserted into the jack of the sound card • Set all Windows volume controls to their midpoints •...

  • Page 45: Appendix

    For customers in the United States, call 800-WWW-DELL (800-999-3355) NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog Dell provides several online and telephone-based support and service options.
