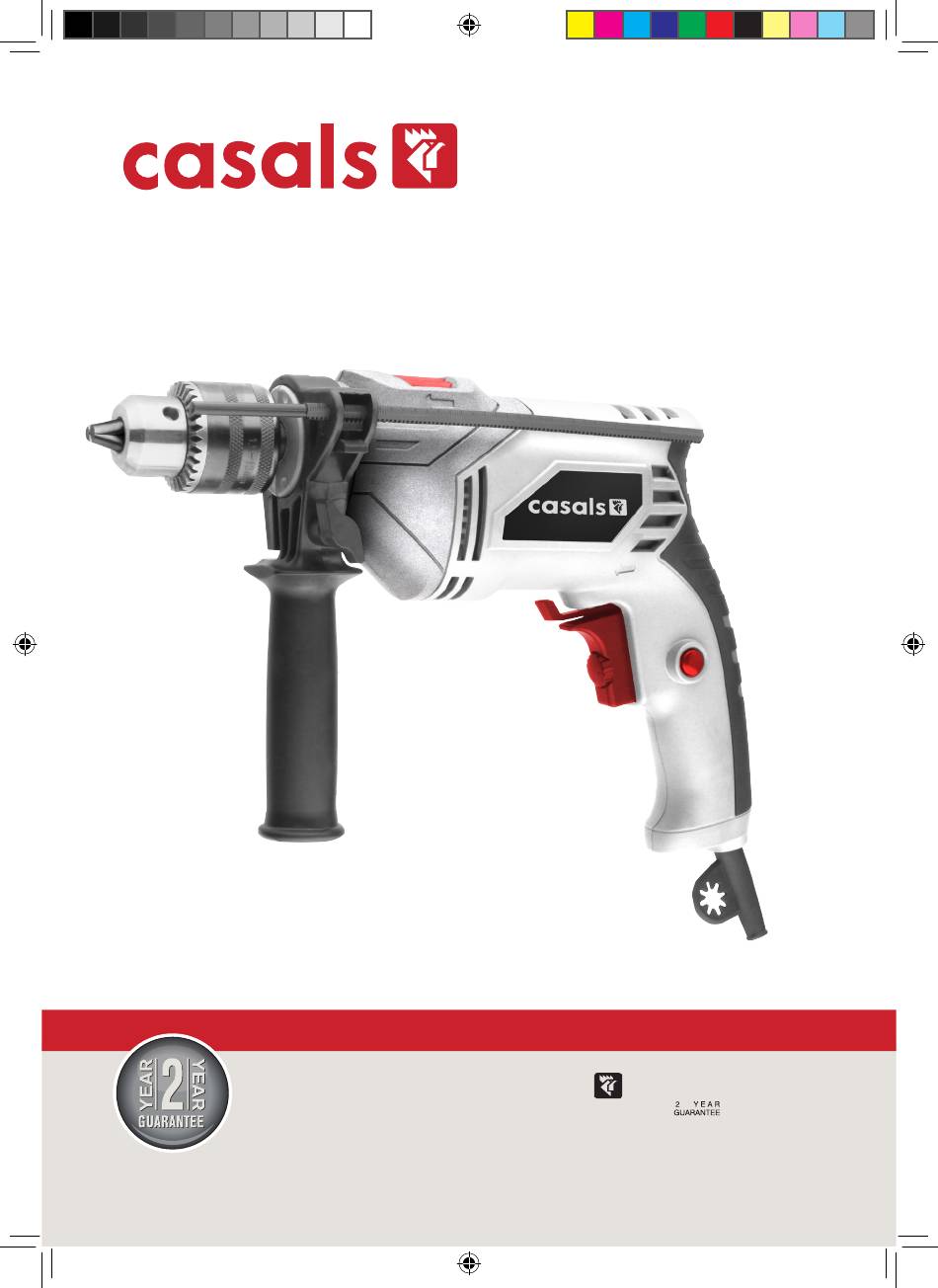

- Page 1 500W Impact Drill M o d e l : COMPLIES WITH INTERNATIONAL I D R 5 0 0 R E A IEC60335 500W SAFETY SPECIFICATIONS PLEASE READ ALL INSTRUCTIONS BEFORE USE _IM.indd 1 3/14/2014 12:18:17 PM...
- Page 2 The following symbols are used in the user manual or on the product: Risk personal injury Risk of electrical shock Immediately remove the mains plug from the main if the mains cable becomes dam- aged and during cleaning and maintenance Wear safety goggles Wear hearing protection Wear a dust mask...
- Page 3 • Do not use accessories which are not specifically de- in the plug, proceed as follows: signed and recommended by the manufacturer. Risk -The wire which is coloured blue must be of personal injury. connected to the terminal which is marked with the • Only use accessories that are suitable for use with letter N or coloured black.
- Page 4 9.Depth stop auxiliary grip (8). 10. Chuck key • Set the depth stop (9) to the required position. 11. Chuck key holder • Tighten the auxiliary grip (8). Assembly Removing • Loosen the auxiliary grip (8). • Remove the depth stop(9) from the auxiliary grip(8). Before assembly, always switch off the ma- • Tighten the auxiliary grip (8).
- Page 5 Equipment and its implementation into national right, power tools that are no longer usable must be col- Replacing the drill bit lected separately and disposed of in an environmentally (fig. B) friendly way. • To remove the drill bit (12), proceed as described in the section ”Mounting and removing the drill bit”.
-
Page 6: Year Guarantee
• Casals will however replace a product, if the cost of the repair is not commercially viable or if their ability to conduct repair effectively cannot be guaranteed. - Page 7 R1200E _IM.indd 7 3/14/2014 12:18:18 PM...
