Bisonte MSB 25-S Operating Instructions Manual

Milling/scarifying machine
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual
MILLING / SCARIFYING
MACHINE
MSB 25-S
OPERATING INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSB 25-S and is the answer not in the manual?

Questions and answers

Related Manuals for Bisonte MSB 25-S

Summary of Contents for Bisonte MSB 25-S

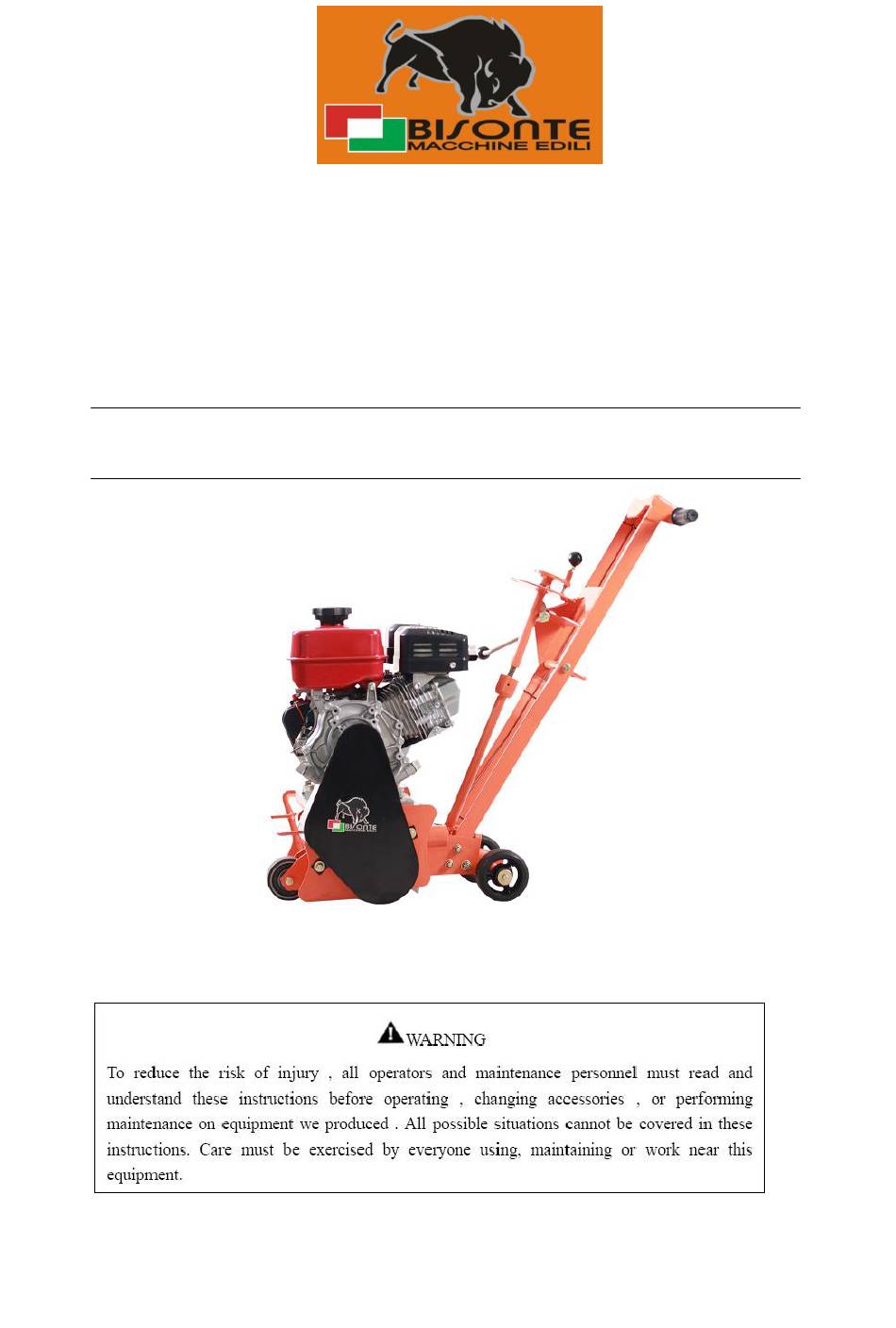

  • Page 1 MILLING / SCARIFYING MACHINE MSB 25-S OPERATING INSTRUCTIONS...

  • Page 2: General Safety Guidelines

    GENERAL SAFETY GUIDELINES Failure to follow instructions in this manual may lead to serious injury or even death! This equipment is to be used by qualified and trained personnel only. This equipment should not be operated by persons under 18 years of age. Always use proper heavy lifting techniques when moving equipment.

  • Page 3: Personal Protective Equipment

    operating properly. Always try to do most work during daylight hours or with sufficient artificial lighting. Visibility must be good for this machine to be used effectively. Never operate machinery when tired or ill. Operators must be alert and always looking for possible signs of danger or misuse of machinery.

  • Page 4: Handle Assembly

    GRINDING MACHINE FINISHER SERIES----INSTUCTIONS Putting Into Service Before packing and shipping, this grinding machine was run and tested at the factory. If there are any problems, please let us know. Before putting your new machine into service, read all manuals and instructions carefully. Improper setup, use or maintenance of your equipment could result in personal injury or damage to equipment.
  • Page 5 Equip the cover pad handle Check all the parts are well screwed or not...

  • Page 6: Throttle Cable Installation

    SAFETY KILL WIRE Locate the red wire protruding from the handle tube connect it to the blue wire tail on the engine. Test to insure proper operation! THROTTLE CABLE INSTALLATION NOTE: A red wire piece has been placed on the engine throttle assembly to show where the throttle cable from your handle should be placed.
  • Page 7 CONTROLS Clockwise circumgyrate the trowel arm to lift the blade shaft away from the ground. Turn the start button to on and start the engine. Push the accelerograph to the max speed slowly. Hold the handle with left hand. Anticlockwise circumgyrate the trowel arm slowly with right hand until the blade shaft begin to spade the ground.
  • Page 8 Special attention: The machine will move forward automaticly while it is spading the ground. The operator should hold the handle in order to control the speed. To avoid hurting the machine, spading depth should be not more than 3-5mm Clockwise circumgyrate the trowel arm to lift the blade shaft away from the ground before you after use.

  • Page 9: Service Procedures

    1. Check oil levels in the engine and gearbox. 2. Check to make sure that the fuel control value is on and fuel is in the tank. 3. Set safety kill switch to ON position. 4. Set throttle to idle position. NEVER start the engine with the throttle above the idle position.
