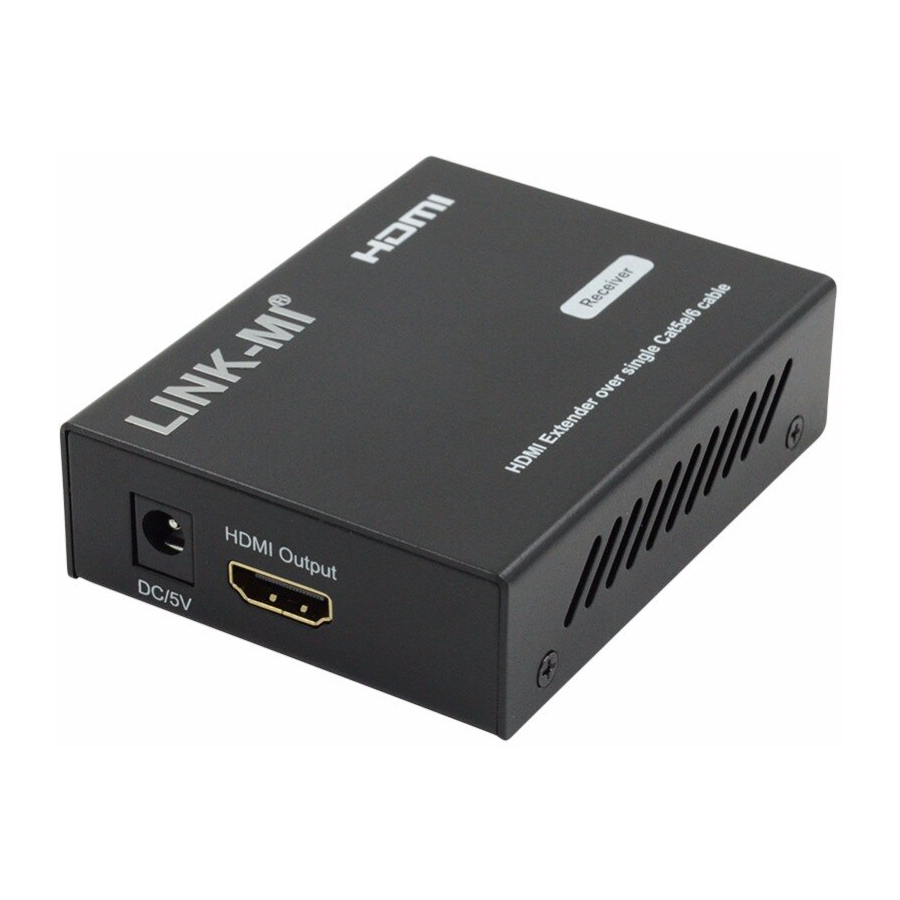

- Page 1 Operating Instructions HDMI Extender over single Cat5e/6 cable HDMI Extender over CAT5 with Bi-Directional IR With Loop HDMI Output...
- Page 2 Features Each set includes one transmitter and one receiver. Transmit Over 50m single CAT5e/6 without signal loss. Support 1xLoop HDMI output on the transmitter. Support high definition resolution up to Full HD 1080p. Support Dolby True-HD, DTS-HD Master audio.
-
Page 3: Net Weight
Operating Humidity Range 5 to 90%RH (No Condensation) Data transfer speed 6.75Gbps HDMI Receptacle x 2 (1xHDMI input, 1xHDMI loop output) RJ45 Receptacle x 1 Connectors on Transmitter Power DC Receptacle x 1 IR Receptacle x 2(for IR TX and RX cable) - Page 4 9 . Power input, 5VDC. Note1: When the sink can’t display the signal, try to connect HDMI output port of the transmitter to the display device. Plug the power supply into Transmitter, press the “EDID copy button” and the light flashes, the EDID data has been copied from the display device successfully, at least press ”EDID copy button”...
- Page 5 Connections and Operations : 1.Connect 1 source such as a Blu-Ray Player, game console, STB, etc. to the HDMI input on the transmitter 2.Connect 1 display such as an HDTV or HD Projrctor to the Loop HDMI output on the transmitter.
-
Page 6: Product Service
Operating Instructions Safety information safeguards To reduce the risk of electric shock, do not expose this product to rain or moisture PRODUCT SERVICE 1) Damage requiring service: The unit should be serviced by qualified service personnel if: (a)The DC power supply cord or AC adaptor has been damaged; (b)Objects or liquids have gotten into the unit;... - Page 7 Operating Instructions LIMITED WARRANTY LIMITS AND EXCLUSIONS 1) This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by warrantor,or failures which result from accidents,misuse,abuse,neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage,...
