Summary of Contents for HDMI SX-EX46B

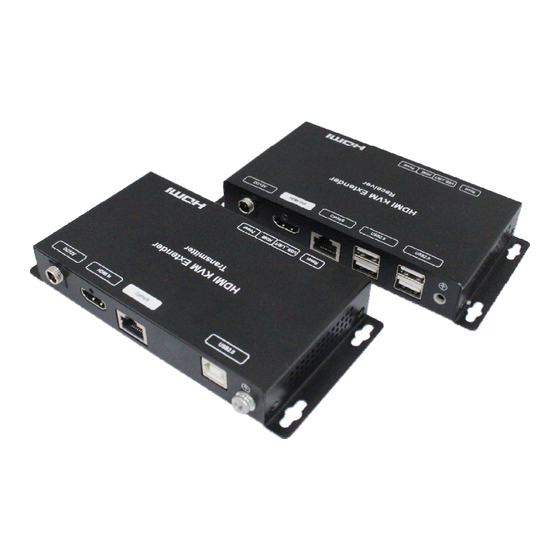

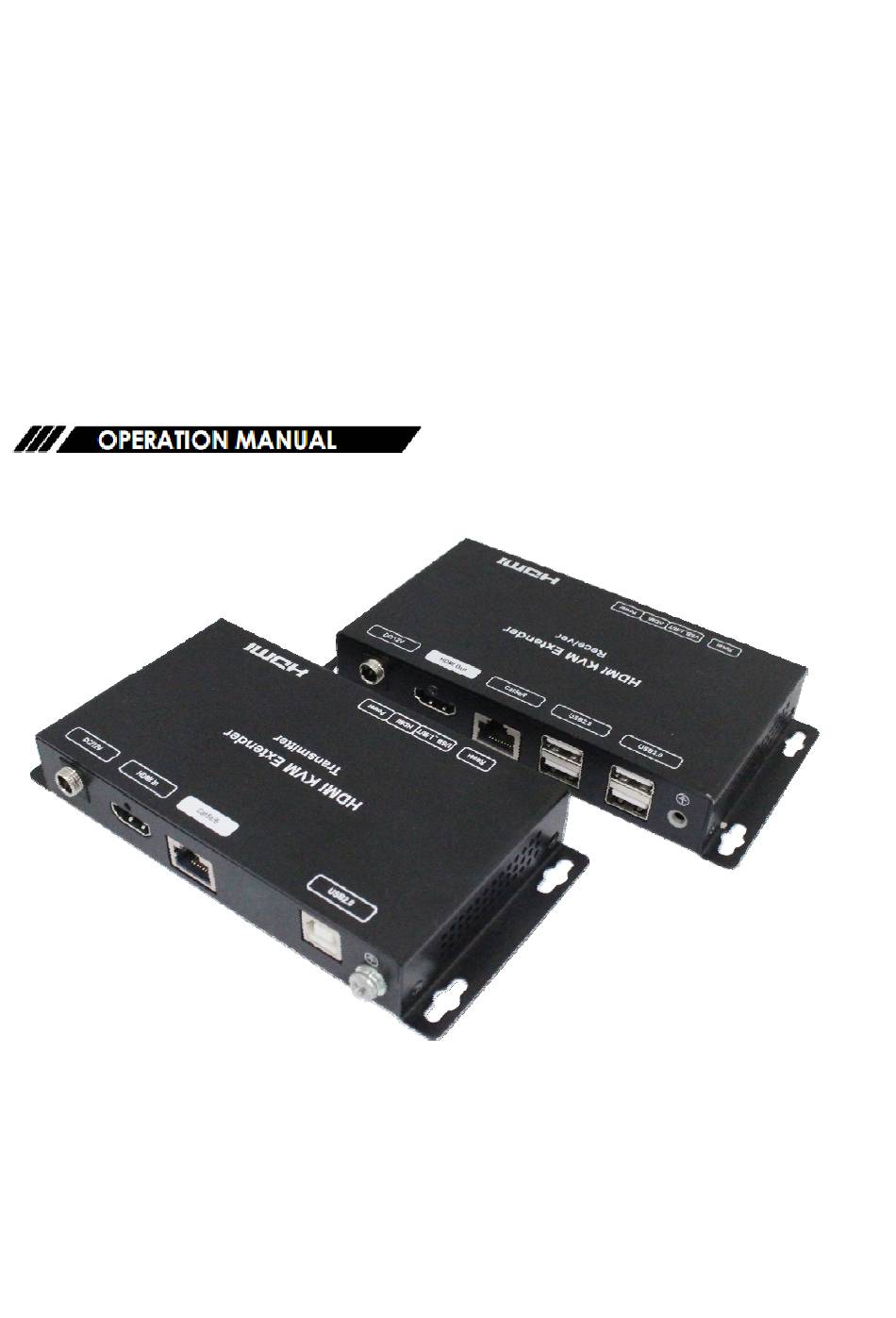

  • Page 1 50M HDMI+USB KVM Extender...
  • Page 2 Operating Instructions Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply.

  • Page 3: Table Of Contents

    Operating Instructions CONTENTS 1.INTRODUCTION................4 2.APPLICATIONS................. 4 3. PACKAGE CONTENTS..............4 4. SYSTEM REQUIREMENTS............4 5. FEATURES..................5 6. SPECIFICATIONS................5 7. OPERATION CONTROLS AND FUNCTIONS......6 7.1 Transmitter Front and Rear............6 7.2 Receiver Front and Rear Panels............7 8. CONNECTION DIAGRAM............8 9. MAINTENANCE................10 10.

  • Page 4: Introduction

    Operating Instructions 1. INTRODUCTION This Model allows HDMI signals to be transmitted over a Single CAT5e/6 cable . It can extend 1080p@60Hz over single Cat5e/6. The transmit distance up to 100m over single Cat5e/6 cable, and 50m over single Cat5e/6 cable under USB mode. It supports PCM2.0 and USB2.0 pass through.

  • Page 5: Features

    5 to 90%RH (No Condensation) DTV/HDTV: 480P/576P/720P/1080P Support Video Format VESA:640x480, 800x600, 1024x768, 1280x1024, 1680x1050, 1280x720, 1360x768 1x HDMI Input , 1x USB B Type Connector on Transmitter 1xRJ45 Output 1xRJ45 Input Connector on Receiver 1x HDMI Output, 4x USB A Type...

  • Page 6: Operation Controls And Functions

    ⑤ Reset key ⑥ Indicator of USB input ⑦ Indicator of HDMI input ⑧ Indicator of power Reset: If you want to reset the HDMI Input, press the Reset button 3s. If the TV black, which means it is effective.

  • Page 7: Receiver Front And Rear Panels

    7.2 Receiver Front and Rear Panels ① USB Tpye A port ② Cat5e/6 input port ③ HDMI output port ④ Power input port ⑤ Reset key ⑥ Indicator of USB output ⑦ Indicator of HDMI output ⑧ Indicator of power...

  • Page 8: Connection Diagram

    2. Connect one UTP Cat5e or better cable between the RJ45 port of Transmitter unit and RJ45 port of Receiver unit. 3. Connect one HDMI Cable between the HDMI input port of display and the HDMI output port of Receiver unit.
  • Page 9 Operating Instructions Application 2: Point to point configuration: 1. Connect one HDMI Cable between the HDMI output port of source device and the HDMI input port of Transmitter unit 2. Connect one Cat5e/6 or better cable between the Transmitter and Receiver 3.

  • Page 10: Maintenance

    Operating Instructions 9.MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. 10.PRODUCT SERVICE (1) Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged; (b) Objects or liquids have gotten into the unit;...
