TVILUM Circo Kids Assembly Instructions Manual

Loft bed (incl. solid pine slats)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Circo Kids
Loft Bed (incl. solid pine slats)
DPCI # 242 - 17 - 9390 (White)
DPCI # 242 - 17 - 9391 (Chocolate)
>> assembly instructions
92346
E
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Circo Kids and is the answer not in the manual?

Questions and answers

Related Manuals for TVILUM Circo Kids

Summary of Contents for TVILUM Circo Kids

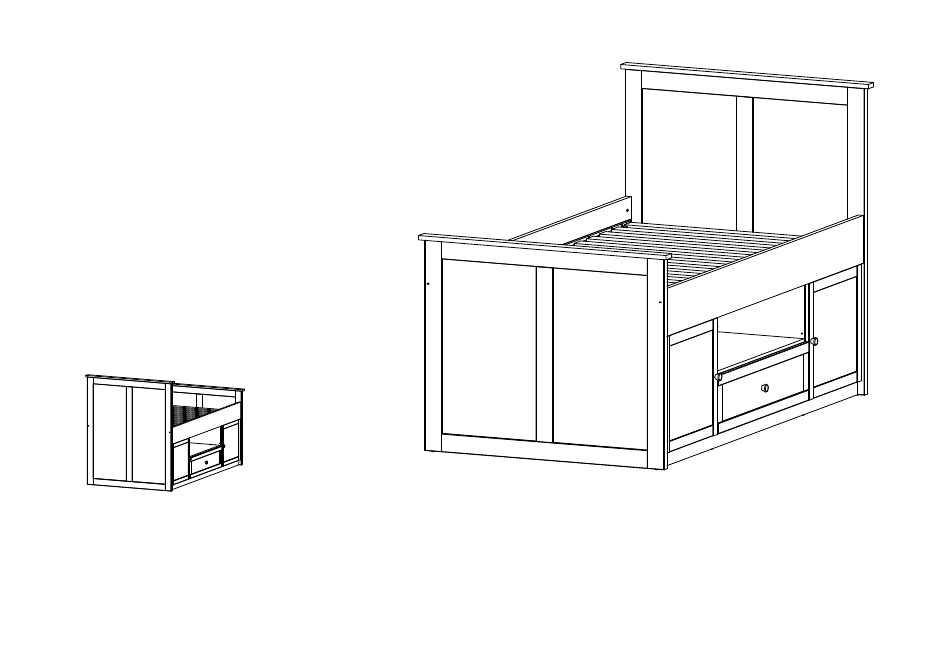

  • Page 1 Circo Kids Loft Bed (incl. solid pine slats) DPCI # 242 - 17 - 9390 (White) DPCI # 242 - 17 - 9391 (Chocolate) >> assembly instructions 92346...

  • Page 3: Introduction

    Congratulations on your latest Target purchase Don't start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you'll be on your way to transforming your room in no time.

  • Page 4: Table Of Contents

    table of contents customer service information introduction parts list hardware 6 - 8 how to use the cam lock system how to use the cross nut system assembly 11 - 40 specification sheet questionnaire information products available QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and DCPI number ready when calling.

  • Page 5: Parts List

    ITEM DESCRIPTION QUANTITY 76277 Headboard Center shelf 76278 Footboard 76279 19025 Drawer front Left / Right divider Bottom panel Base rail 76279 Top cap 76279 76277 Side rail Door Center support Shelf 19025 Bed slat 02828 Drawer back 06389 Drawer bottom 76278 00585 Left drawer side...

  • Page 6: Hardware

    hardware 11042 13418 10401 13444 20203 Panel clip Small dowel Shelf support Corner bracket Shelf brace 20215 20228 20626 21010 Large dowel Cross nut Bolt Drawer fastener 25484 25483 25233 25610 21204 Shelf brace screw Door knob screw Drawer knob screw Connector bolt...
  • Page 7 hardware 26071 26214 26020 26066 26211 Small system screw Large system screw Hinge screw Hinge plate screw Machine screw 50491 31683 31567 63001 81039 Cam bolt Cam lock Floor glide Knob Hinge plate 96203 97642 Door bumper Allen wrench...
  • Page 8 hardware 73828 94048 22604 41433 52292 Hinge Glue Brace Bed slat support Drawer glide...

  • Page 9: How To Use The Cam Lock System

    how to use the cam lock system CORRECT CORRECT The cam bolt will fit loosely until the cam is tightened. 12:00 2:00 LOCKED TIGHTEN...

  • Page 10: How To Use The Cross Nut System

    how to use the cross nut system CORRECT CORRECT...

  • Page 11: Assembly

    step 1 drawer assembly - insert cams 00585 00584 31567 31683 Cam bolt Place the cams into the large holes on the drawer sides, so that the arrow is facing the edge of the drawer side. Press cam bolts into the holes on the edge of the drawer sides.
  • Page 12 step 2 drawer assembly - attach drawer bottom to drawer back 02828 06389 finished side up paper Press the drawer bottom 06389 (with the finished side up) into the grooves on the drawer back 02828. Paper overlays the slot, but it has a slot so drawer bottom inserts well.
  • Page 13 step 3 drawer assembly - attach drawer sides 00584 02828 06389 finished side up 20228 00585 Drawer fastener Align holes at back of the drawer sides, left drawer side 00585 and right drawer side 00584 with the holes on the drawer back 02828. Make sure the groove on the drawer back is facing the inside of the drawer.
  • Page 14 step 4 drawer assembly - attach drawer front 02828 00584 00585 06389 The cam bolt will fit loosely until the cam is tightened. 12:00 2:00 LOCKED Place the cam bolts on the drawer sides into the holes on the back of the drawer front. Tighten cams to the 2 o’clock position.
  • Page 15 step 5 drawer assembly - attach drawer knob 25483 81039 00585 06389 00584 Drawer knob screw Knob 02828 Use the drawer knob screw to attach the knob to the drawer front ED.
  • Page 16 step 6 drawer assembly - install panel clips 3,7" IMPORTANT. The panel clips stabilize the drawer. 00584 06389 10401 02828 Panel clip 00585 Place the thin edge of the panel clips into the groove between the drawer bottom 06389 and right drawer side 00584, left drawer side 00585, drawer back 02828 and drawer front ED.
  • Page 17 step 7 loft bed assembly - insert dowels Bottom Bottom 76278 76277 22604 20203 Small dowel Glue Place two drops of glue in each of the holes on the top edge of the headboard and footboard. Tap dowels into the holes.
  • Page 18 step 8 loft bed assembly - install hinge plates 76278 50491 26071 26211 76277 Hinge plate screw Hinge screw Hinge plate Attach hinge plates to the headboard and footboard with the hinge plate screws. Install hinge screws into holes as shown on the top of the hinge plates.
  • Page 19 step 9 loft bed assembly - install cross nuts and dowels 21010 20215 CORRECT CORRECT Large dowel Cross nut Insert cross nuts into the holes near the ends of the side rails NA. Slot must face towards the end of the rail. Tap dowels into the smaller holes on the ends of the side rails NA.
  • Page 20 step 10 loft bed assembly - insert cams and dowels 20203 31567 31683 Small dowel cam bolt Place the cams into the large holes on center support SA, so that the arrow is facing the edge of the panel. Press cam bolts into the holes on the edges of the center support SA and the base rail J.
  • Page 21 step 11 loft bed assembly - insert cams and dowels 20203 31683 31567 Small dowel cam bolt Place the cams into the large holes on center shelf UC, divider GD and bottom panel IE, so that the arrow is facing the edge of the panel. Press cam bolts into the holes on the edges of center shelf UC, divider GD and bottom panel IE.
  • Page 22 step 12 loft bed assembly - attach hinges to doors 52292 Hinge Press hinge cups into the large holes on the doors. Drive the pre-attached screws into the holes on the door.
  • Page 23 step 13 loft bed assembly - assemble center shelf to dividers The cam bolt will fit loosely until the cam is tightened. Place the center shelf UC between the dividers GD so that the cam bolts and dowels go into the holes. Tighten the cams to the 2 o’clock position.
  • Page 24 step 14 loft bed assembly - attach divider assembly to center support 25610 97642 Connector bolt Allen wrench Place the holes on the center support SA, over the dowels on the dividers GD. Use allen wrench to drive the connector bolts through the center support SA, into the dividers GD.
  • Page 25 step 15 loft bed assembly - attach shelf braces 25233 13418 Shelf brace screw Shelf brace Measure 4 inches from the front of the center shelf UC. Use the shelf bracket to determine the hole locations. Use an awl, nail or drill to start a pilot hole for the screws. Use shelf brace screws 25233 to attach the bracket.
  • Page 26 step 16 loft bed assembly - attach two bottom panels The cam bolt will fit loosely until the cam is tightened. Press bottom panels IE onto the dividers GD so that the cam bolts and dowels go into the holes. Tighten the cams to the 2 o’clock position.
  • Page 27 step 17 loft bed assembly - attach base rail Press dowels on the base rail J, into the holes on the bottom panels IE.
  • Page 28 step 18 loft bed assembly - attach side rail LOCKED 2:00 12:00 The cam bolt will fit loosely until the cam is tightened. Press side rail NA onto the dividers GD so that the cam bolts go into the holes. Tighten the cams to the 2 o’clock position.
  • Page 29 step 19 loft bed assembly - attach headboard and footboard The cam bolt will fit loosely until the cam is tightened. 20626 97642 76278 76277 IE IE Bolt Allen wrench Turn the assembly over, so that the base rail J, is on the floor. Press headboard 76277 and footboard 76278, onto cam bolts and dowels on the center support SA and the base rail J.
  • Page 30 step 20 loft bed assembly - install floor glides 76278 76277 63001 Floor glide Nail the floor glides onto the bottom edges of the headboard 76277, footboard 76278, base rail J and center support SA.
  • Page 31 step 21 loft bed assembly - attach top caps 76279 76277 22604 76279 76278 Glue Place two drops of glue into the holes on the two top caps 76279. Press or tap the top caps 76279, into place. Do not use a hammer, as this will damage the surface.
  • Page 32 step 22 loft bed assembly - install shelves 76279 76279 76277 76278 11042 Shelf support Place shelf supports into the holes at the sides of the door compartments. The barbed part of the support goes into these holes. Place the shelves onto the supports, making sure that the pin on the support goes into the shelf.
  • Page 33 step 23 loft bed assembly - attach doors 76279 76277 76279 76278 Slide the pivoting part of the two hinges over the hinge plates. Tighten the screw on the hinge plate until the door is supported by the hinges. The door can be adjusted in and out by pulling or pushing the door then retightening this screw.
  • Page 34 step 24 loft bed assembly - attach door knobs and bumpers 76277 76278 96203 25484 81039 Door bumper Door knob screw Knob Pass the drawer knob screw through the door then into the knob and tighten. Peel the door bumpers off the backing sheet and place them at the bottom of the edge of the dividers.
  • Page 35 step 25 loft bed assembly - install drawer glides 41433 26020 76277 Small system screw 76278 Drawer glide Place a small system screw into the hole second from the back on the drawer glide, then into the hole on the back of the divider GD. Note: Oil is on slide for lubrication. Use care in handling, so that lubricant is not transferred to the product.
  • Page 36 step 26 loft bed assembly - install small system screw into front of drawer glide 76277 76278 26020 Small system screw Move the front of the glide until you can see a drilled hole through the slot on the glide. Use a small system screw to attach the front of the glide.
  • Page 37 step 27 loft bed assembly - install drawer glide screw 76277 26214 76278 Machine screw Slide the groove on the drawer sides over the drawer glide. Pull the glide forward until the threaded hole on the glide aligns with the hole in the drawer side.
  • Page 38 step 28 loft bed assembly - install bed slat supports 26066 73828 Large system screw 76277 76278 Bed slat support Use large system screws to attach the bed slat support rail into the bed side rails NA.
  • Page 39 step 29 loft bed assembly - install brace 21204 26214 94048 Machine screw 76277 76278 Brace Place machine screw through holes on the slat supports and into holes on the end of the brace as shown. Thread the nuts onto the machine screw from below and tighten with a wrench and screwdriver.
  • Page 40 step 30 loft bed assembly - install bed slats and corner brackets 19025 Fabric band down 21204 26214 13444 Machine screw Corner bracket Insert machine screw through the corner brackets and into the holes in the bed slat support rail. Thread the nuts onto the bolts from below, and tighten with a wrench and screwdriver.
