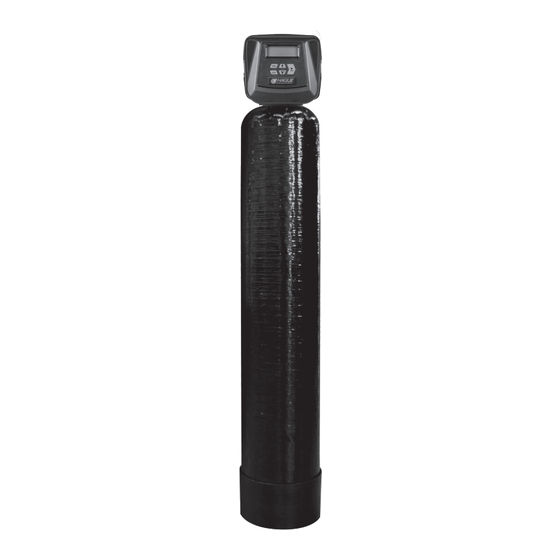

- Page 1 Hague Filter Iron and Sulfur Air Draw Filters OWNER'S MANUAL AND INSTALLATION GUIDE For Models: HFFE-1054, HFFE-1354, HFHS-1054, HFHS-1354, HFAIR-1054, HFAIR-1354 100037741 100037742 100037739 100037740 100037743 100037744...
-
Page 2: Table Of Contents
Contents Pre-Installation Instructions for Dealers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Bypass Valve . -
Page 3: Pre-Installation Instructions For Dealers
1 . Press the REGEN button once . “REGEN TODAY” will flash on the display . 2 . Press and hold the REGEN button for three seconds until a regeneration begins . Once the valve has completed the immediate regeneration, the valve will regenerate once more during the preset time . Hague Filter Owner's Manual... -
Page 4: Bypass Valve
(Fig. 4) (i .e . a plumbing cross-connection somewhere in the building) . NORMAL DIAGNOSTIC SHUT OFF OPERATION BYPASS POSITION POSITION POSITION POSITION FIGURE 1 FIGURE 2 FIGURE 3 FIGURE 4 Hague Filter Owner's Manual... -
Page 5: Installation
. Plumbing codes may require the installation of a thermal expansion tank on the outlet side of the system to prevent a water heater backup condition . Hague Filter Owner's Manual... - Page 6 CAUTION: Never insert a drain line into a drain, sewer line, or trap. Always allow an air gap of 1-1/2” or twice the pipe diameter, whichever is greater, between the drain line and the wastewater to prevent the possibility of sewage being back-siphoned into the unit. 1. Floor Drain 2. Standpipe 3. Laundry Tub TYPICAL DRAIN LINE INSTALLATIONS Hague Filter Owner's Manual...
- Page 7 . Please refer to the OZ-1-A Installation Instruction guide or consult with your local dealer or distributor for more information . *Nuisance bacteria refers to iron and sulfate reducing bacteria which is harmless to human health . This bacteria can cause slime, taste, and odor issues . OZONE GENERATOR Hague Filter Owner's Manual...
-
Page 8: Programming Procedures
If unit is set to OFF, the backlight will turn off after 5 minutes of inactivity . This setting is not available on 12:00 all models. Press NEXT to return to General Display . REGEN NEXT DOWN CLOCK REGEN TIME MINUTES 12:00 REGEN NEXT DOWN CLOCK LIGHT NORMALLY REGEN NEXT DOWN CLOCK Return to general display. Hague Filter Owner's Manual... -
Page 9: Startup Instructions
3 . Turn on hot water and check for air, then turn water off after air is discharged . 7 . Place unit into regeneration and allow to complete a full cycle . Upon completion, unit will deliver treated water . Hague Filter Owner's Manual... -
Page 10: Operating Displays And Maintenance
Once a manual regeneration is initiated, the unit will enter the first regeneration cycle position . Once the unit advances to its first position and subsequent positions thereafter, (see Start Up Instructions for regeneration sequence) the water filter will deliver water, but it will be untreated . Hague Filter Owner's Manual... - Page 11 This maintenance should be performed by the servicing dealer . Contact dealer for more information . *Nuisance bacteria refers to iron and sulfate reducing bacteria which is harmless to human health, however can cause slime, and taste and odor issues . OZONE GENERATOR Hague Filter Owner's Manual...
-
Page 12: Troubleshooting Guide
For timeclock valves the C . Defective PC board C . Defective PC board buttons are L & M. For all other valves the button is REGEN. D . Cover installed incorrectly D . Reinstall cover Hague Filter Owner's Manual... - Page 13 E . Restricted or kinked drain line unkink drain line F . Remove backwash flow controller and clean F . Plugged backwash flow controller or replace G . Missing refill flow controller G . Replace refill flow controller Hague Filter Owner's Manual...
- Page 14 Press NEXT and REGEN buttons for 3 seconds to D . Improper voltage being delivered to PC board resynchronize software with piston position or disconnect power supply from PC board for 5 seconds and then reconnect . Hague Filter Owner's Manual...
- Page 15 Press NEXT and REGEN buttons for 3 seconds to No Hard Water Bypass = resynchronize software with piston position or NHBP disconnect power supply from PC board for 5 Auxiliary MAV = AUX MAV seconds and then reconnect . Hague Filter Owner's Manual...
- Page 16 A . Depleted Battery A . See Operating Display and Maintenance section 23. Err – 400 Memory Errors B . Defective PC Board B . Replace PC board *(All 400 errors pertain to memory related errors) Hague Filter Owner's Manual...
-
Page 17: Replacement Parts
Hague Filter Cover CV3107-1 Motor Drive bracket & spring clip CV3002A (Includes #5, #6) CV4377WF WF Replacement Board CV3110 Drive gear, 12 x 36 CV3109 Drive gear cover Not Shown CV3186 Transformer, 110V-12V NOTE: Battery Location Hague Filter Owner's Manual... - Page 18 1” body assembly downflow CV3001UP 1” body assembly upflow CV3020 1 .25” body assembly downflow CV3946 Wide Drive backplate CD1225-05 Top basket softener (optional) Shown CD1249WR Top basket filter For Air Filter Systems Only OV32DN32 Internal check valve Shown Hague Filter Owner's Manual...
- Page 19 Loosens Drive Cap SERVICE WRENCH - CV3193-02 Although no tools are necessary to assemble or disassemble the valve, the Service Wrench, (shown in various positions on the valve) is available to aid in assembly or disassembly . Hague Filter Owner's Manual...
- Page 20 *The injector plug and the injector each use one lower and one upper o-ring WATER METER AND METER PLUG Item No. Part No. Description Qty. CV3151 Nut, 1” QC CV3003 Meter assembly, includes items 3 & 4 CV3118-01 Turbine assembly CV3105 O-ring 215 CV3003-01 Meter plug assembly Hague Filter Owner's Manual...
- Page 21 For other piping material, the 3/4” NPT is used. Water Flow Proper DLFC orientation directs water flow towards the washer face with rounded edge. Drain Line 1” Water flow Proper DLFC orientation directs water flow towards the washer face with rounded edge. Hague Filter Owner's Manual...
- Page 22 OZONE GENERATOR Item No. Part No. Description Qty. OZ1-A Ozone Kit Assembly Enclosure Top, Bottom, and Clip OZ1-CASE (cover not shown) 33217-WRP3 Ozone Cell not shown CJCPG-6PBLK 3/8" Compression Nut not shown CH4642WR-A Air Draw Elbow/Check Valve Hague Filter Owner's Manual...
-
Page 23: Installation Fitting Assemblies
Item Part No. Description Qty. Item Part No. Description Qty. Item Part No. Description Qty. CV3007-15 3/4” john guest elbow assembly CV3007-17 1” john guest assembly CV3007-13 1” brass shark bite assembly CV3790 Fitting CV4045 Fitting CV3629 Fitting Hague Filter Owner's Manual... - Page 24 This page intentionally left blank. Hague Filter Owner's Manual...
-
Page 25: Specifications
Units ship with media separate . Cycle Times and Usage HFHS-1054 HFHS-1354 HFFE-1054 HFFE-1354 MODEL/PART NUMBER 100037739 100037740 100037741 100037742 MIN. GAL. MIN. GAL. MIN. GAL. MIN. GAL. Backwash Air Backwash Regenerant Draw Total SPE-HAGUE FILT RevA0120 Hague Filter Owner's Manual... -
Page 26: Warranty
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specifi c legal rights, and you may also have other rights which vary from state to state. Hague Filter Owner's Manual... -
Page 27: Quick Reference Guide
Press and release ����� (notice that flashing “REGEN TODAY” appears) . normal operation NEXT DOWN CLOCK REGEN TODAY and TIME OF DAY REGEN TODAY 2:40 will ash alternately if a regeneration is expected tonight. REGEN NEXT DOWN CLOCK Hague Filter Owner's Manual... -
Page 28: Iron
Iron and Sulfur Air Draw Filter Hague Quality Water, Int'l 4343 South Hamilton Road Groveport, OH 43125 Phone: 614-836-2115 • Fax: 614-836-5349 100037746 RevA0120...
