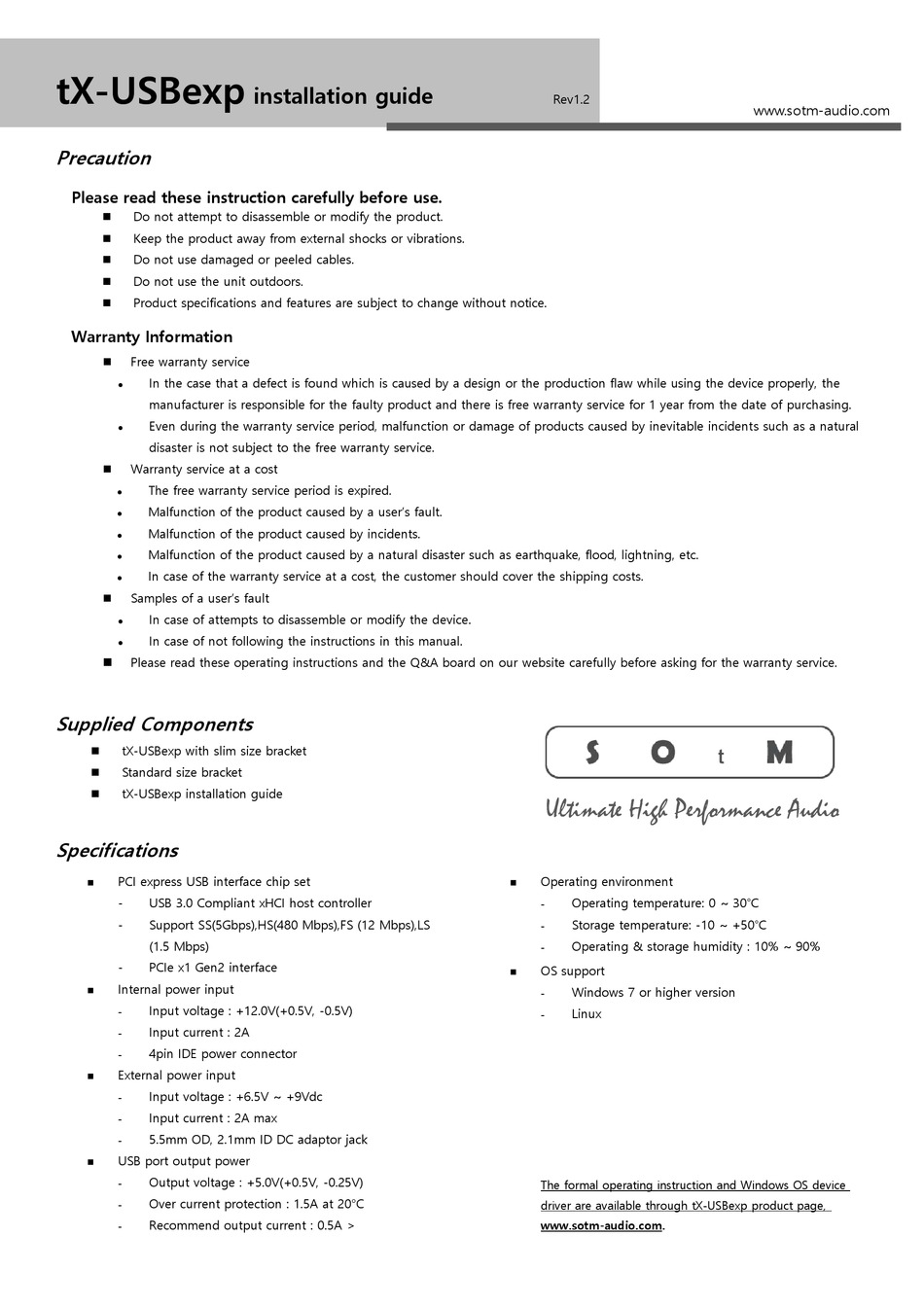

SOtM tX-USBexp Installation Manual

tX-USBexp

Precaution

Please read these instruction carefully before use.
Do not attempt to disassemble or modify the product.
◼
Keep the product away from external shocks or vibrations.
◼
Do not use damaged or peeled cables.
◼
Do not use the unit outdoors.
◼
Product specifications and features are subject to change without notice.
◼

Warranty Information

Free warranty service
◼
In the case that a defect is found which is caused by a design or the production flaw while using the device properly, the
⚫
manufacturer is responsible for the faulty product and there is free warranty service for 1 year from the date of purchasing.
Even during the warranty service period, malfunction or damage of products caused by inevitable incidents such as a natural
⚫
disaster is not subject to the free warranty service.
Warranty service at a cost
◼
The free warranty service period is expired.
⚫
Malfunction of the product caused by a user's fault.
⚫
Malfunction of the product caused by incidents.
⚫
Malfunction of the product caused by a natural disaster such as earthquake, flood, lightning, etc.
⚫
In case of the warranty service at a cost, the customer should cover the shipping costs.
⚫
Samples of a user's fault
◼
In case of attempts to disassemble or modify the device.
⚫
In case of not following the instructions in this manual.
⚫
Please read these operating instructions and the Q&A board on our website carefully before asking for the warranty service.
◼

Supplied Components

tX-USBexp with slim size bracket
◼
Standard size bracket
◼
tX-USBexp installation guide
◼

Specifications

PCI express USB interface chip set
◼
- USB 3.0 Compliant xHCI host controller
- Support SS(5Gbps),HS(480 Mbps),FS (12 Mbps),LS
(1.5 Mbps)
- PCIe x1 Gen2 interface
Internal power input
◼
Input voltage : +12.0V(+0.5V, -0.5V)
-
Input current : 2A
-
4pin IDE power connector
-
External power input
◼
Input voltage : +6.5V ~ +9Vdc
-
Input current : 2A max
-
5.5mm OD, 2.1mm ID DC adaptor jack
-
USB port output power
◼
Output voltage : +5.0V(+0.5V, -0.25V)
-
Over current protection : 1.5A at 20°C
-
Recommend output current : 0.5A >
-
Installation guide
Rev1.2
Ultimate High Performance Audio
Operating environment
◼
Operating temperature: 0 ~ 30℃
-
Storage temperature: -10 ~ +50℃
-
Operating & storage humidity : 10% ~ 90%
-
OS support
◼
Windows 7 or higher version
-
Linux
-
The formal operating instruction and Windows OS device
driver are available through tX-USBexp product page,
www.sotm-audio.com.
www.sotm-audio.com
